WRM-500
Expanded specification view ↓

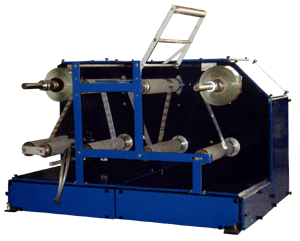

Unwinding and Rewinding Machine Model WRM 500
₹149,000
AIMS web unwinder/rewinder for marking/coding roll-form polyester film, Glassine poly, aluminium foil, paper and laminated film. Source describes optional hydraulic web control/alignment, hot-air ink drying and speed feedback; individual inclusion scope needs confirmation. Table gives 75–510 mm web width with 500 mm standard,40 kg maximum weight and 90 m/min designed maximum.
Confirm configuration, availability and commercial terms with our team.
Specifications
| Web Width / Weight | 75 – 510 mm. / 40 Kg Max. (500 mm Standard) |
|---|---|
| Maximum. Parent Reel Dia | 300 mm |
| Maximum. Rewind Reel Dia | 300 mm |
| Rewind Core Dia. | 32 & 38 mm. Std. |
| Maximum. Designed Speed | 90 M / min. |
| Substrate | Foil/Film: 9-20 Micron |
| Motor | 1-HP 3-Ph Induction Motor with Delta Drive |
| Size (mm) | L 1500 x W 800 x H 750 mm |
| Structural Fitting | M. S. Channel frame body with Mechanical Friction Type unwind system, unwind / rewind shaft & cones for printed material holding cores, for printed material holding cores, alu - Guide Roller & all other standard accessories. |
