IJP-T-360

Handheld Non Contact Ink Jet Printer Model IJP T360 18mm

Name: Handheld Non Contact Ink Jet Printer Model IJP T360 18mm
SKU: KFT-IJP-T-360
Price: 119000 INR

₹119,000

Handheld mains/battery printer with touchscreen/USB editing and grouped messages. The name and description list 18 mm and eight lines; the specification table lists a larger print area, retained as an unresolved conflict.

Confirm configuration, availability and commercial terms with our team.

Specifications

Coder Model	Ink Jet Printer IJP – T-360
Display	4.3” full color Touch Screen LCD with LED backlight.
Languages	English, Turkish, Arabic, Chinese, etc.
Input Device	800 x 480 Touch Screen LCD, USB Pen Drive.
Printable Images	Alphanumeric, Logo, Date/Time, Counter, Barcode, etc. DATAMATRIX, QR, UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA128, PDF417, user added.
Printing Area	1 to 12 lines of 2000 characters from 1.2 to 25.4 mm high.
Printing Direction	Adjustable at any angle within 360 degree
Message Capacity	Store upto 10,000 messages with Message Name.
Printing Speed	Max. 40 meters/min for 1 to 12 line printing at 200 dpi
Prints Using	Xaar (UK) Print-head for spraying ink
Print Distance	Max. 6 mm from substrate down or in front.
Inking Medium	50 cc disposable pre-mix ink in Cartridge form.
Printing Medium	Solvent/Oil based inks (black, White, etc.)
Ink Drying Time	Min. 5 seconds on plastics & laminates.
Impressions	Appx. 30 Lakh dot-matrix characters of 2 mm per cartridge of ink.
Operating Range	0ºC ~ 55ºC, 10% - 80% RH, non-condensing.
Supply Voltage	90 - 240 Vac, 50/60 Hz, 5 W
Battery Voltage	8.4 V lithium battery, 10 hours use / 20 hours standby
Dimensions	L145 × W160 × D170 mm
Weight	0.8 Kg excluding cartridge & battery.

Expanded specification view ↓

Product details

LOW COST Industrial Handheld Non-Contact Ink Jet Printer Model IJP – T-360 (18mm), which is a compact design, Zero Maintenance, 200 dpi high resolution, Mains/ Battery Powered EIGHT line (character height 1.2 to 18 mm) Printer & can be used on Porous / Non-Porous products to print B.No., Exp.Date, Time, Serial No. (AGMARK), Logos, Scannable variable Bar Codes, etc. on labels, cartons, pouches, drums, containers, etc. It is fully programmable using the 4.3-inch full color Touch Screen LCD or with input from USB Pen Drive and is also capable of printing Multi-Segment / Grouped messages.

The system is inclusive of below mentioned accessories worth Rs. 30,000/- free of cost:

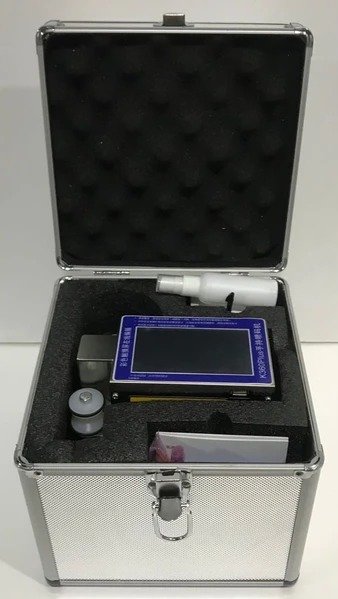

a. Hard Aluminum Carry Case with molded slots for printer & accessories.

b. 1 No. 2600 mAh Rechargeable Batteries.

c. 1 No. disposable Pre-mix Black ink cartridge.

d. Operator Tool Kit, Operation & Maintenance Manual.

This printer is fully Electronic without CORE system &does not have any air pump, viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the disposable ink cartridges making it very user friendly for the Operator. The running / Printing cost is only about 2 Paise per impression (25 char).

Specifications (20)

Coder Model	Ink Jet Printer IJP – T-360
Display	4.3” full color Touch Screen LCD with LED backlight.
Languages	English, Turkish, Arabic, Chinese, etc.
Input Device	800 x 480 Touch Screen LCD, USB Pen Drive.
Printable Images	Alphanumeric, Logo, Date/Time, Counter, Barcode, etc. DATAMATRIX, QR, UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA128, PDF417, user added.
Printing Area	1 to 12 lines of 2000 characters from 1.2 to 25.4 mm high.
Printing Direction	Adjustable at any angle within 360 degree
Message Capacity	Store upto 10,000 messages with Message Name.
Printing Speed	Max. 40 meters/min for 1 to 12 line printing at 200 dpi
Prints Using	Xaar (UK) Print-head for spraying ink
Print Distance	Max. 6 mm from substrate down or in front.
Inking Medium	50 cc disposable pre-mix ink in Cartridge form.
Printing Medium	Solvent/Oil based inks (black, White, etc.)
Ink Drying Time	Min. 5 seconds on plastics & laminates.
Impressions	Appx. 30 Lakh dot-matrix characters of 2 mm per cartridge of ink.
Operating Range	0ºC ~ 55ºC, 10% - 80% RH, non-condensing.
Supply Voltage	90 - 240 Vac, 50/60 Hz, 5 W
Battery Voltage	8.4 V lithium battery, 10 hours use / 20 hours standby
Dimensions	L145 × W160 × D170 mm
Weight	0.8 Kg excluding cartridge & battery.
