IJP-MX1-A

Model IJP MX1 A 12.7mm

Name: Model IJP MX1 A 12.7mm
SKU: KFT-IJP-MX1-A
Price: 39000 INR

₹39,000

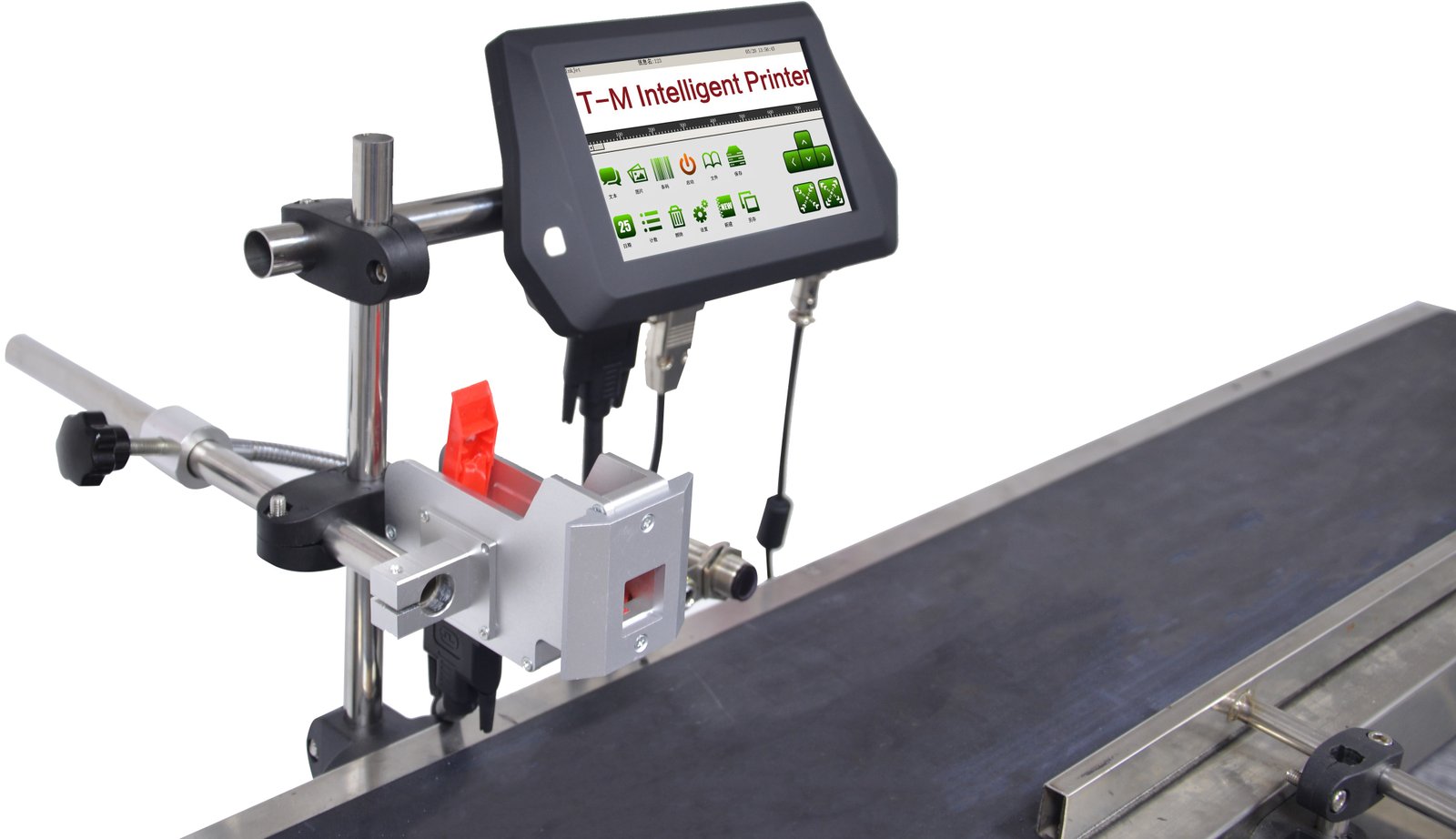

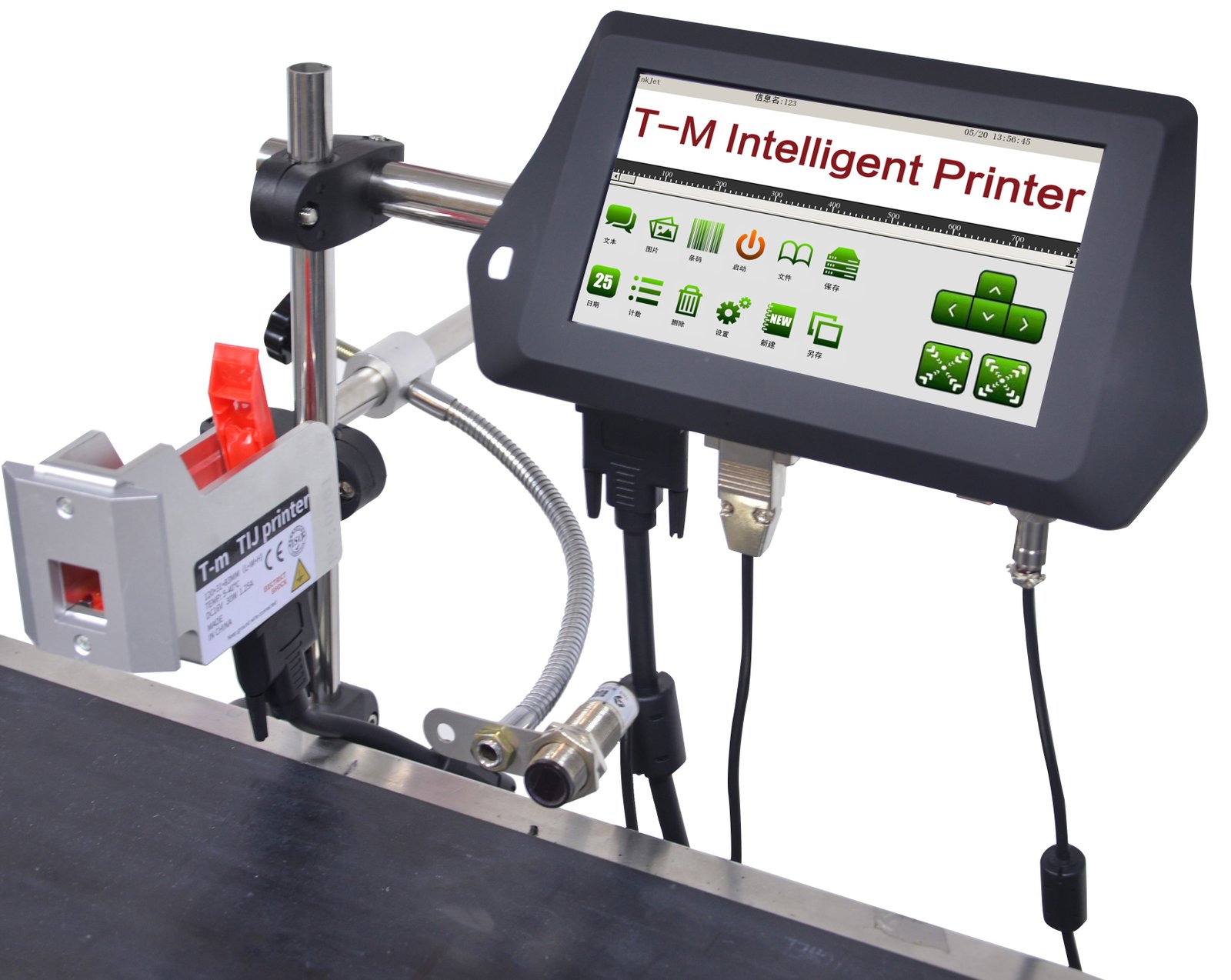

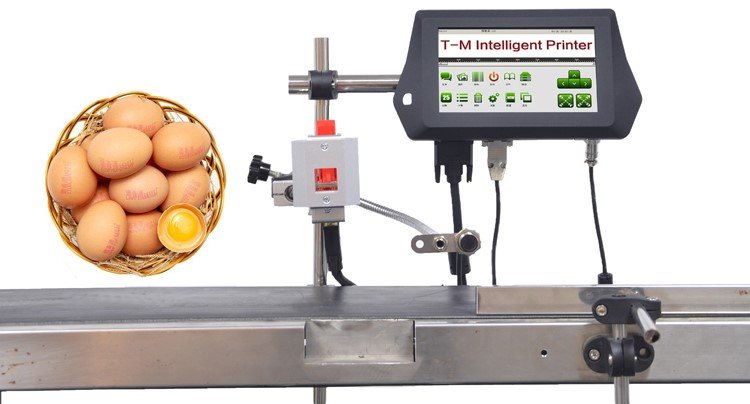

Standalone online cartridge printer with capacitive touchscreen, computer software input, conveyor bracket/stand and premixed cartridge. Supplier lists variable barcodes for labels, cartons, pouches and bottles.

Confirm configuration, availability and commercial terms with our team.

Specifications

Coder Model	Ink Jet Printer IJP – MX1-A
Display	4.3" capacitive full color Touch Screen LCD with LED backlight.
Languages	English, Spanish, French, German, Chinese, etc.
Input Device	4.3" 800x480 colour LCD touch screen & Computer Software.
Printable Images	Alphanumeric, Logo, Date/Time, Counter, Variable Barcode, etc. UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA128, PDF417, DATAMATRIX, QR
Printing Area	1 to 6 lines of 120 char. each from 2 to 12.7 mm high.
Message Capacity	Store upto 999 messages with Message Name.
Printing Speed	Max. 60 meters/min for 1 to 6 line printing at 300 / 600 dpi
Prints Using	Hewlett-Packard (hp) TIJ 2.5 Print-head for spraying ink
Print Distance	Max. 6 mm from substrate down or in front.
Inking Medium	42 cc disposable pre-mix ink in Cartridge form with head.
Printing Medium	Solvent/Oil based inks (black, white, red, blue, yellow, etc.)
Ink Drying Time	Min. 5 seconds on plastics & laminates.
Impressions	Appx. 20 Lakh dot matrix char. of 2 mm per cartridge of ink
Operating Range	0 ~ +40ºC, 10% - 80% RH, non-condensing.
Supply Voltage	100 - 240 Vac, 50/60 Hz, 600 W
Dimensions	Controller 245 x 130 x 45 mm, Printhead120 x 30 x 83 mm
Weight	Controller 0.5 Kg, Print head 0.5 Kg.

Expanded specification view ↓

Product details

AIMS brand (made in India) Best Quality Smallest Industrial On-Line Non-Contact Ink Jet Printer Model IJP – MX1-A (12.7mm), which is a Compact design, Zero Maintenance, 600 dpi high resolution, SIX line (character height 2 to 12.7 mm) Printer & can be used on Porous / Non-Porous products to print B.No., Exp.Date, Time, Serial No. (AGMARK), Logos, Scannable Variable Bar Codes, etc. on labels, cartons, pouches, bottles, etc. It is fully programmable using the 4.3 inch full colour Touch Screen LCD with stand-alone operation (no PC required) where it can print 6 lines Data at a very low price.

The system is inclusive of below mentioned accessories worth Rs. 20,000/- free of cost:

a. Complete Printer stand with bracket for Conveyor mounting.

b. 1 Nos. disposable Pre-mix ink cartridge.

c. Operator Tool Kit, Operation & Maintenance Manual.

This printer is fully Electronic & does not have any air pump, viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the disposable ink cartridges making it very user friendly for the Operator. The running / Printing cost is only about 6 Paisa per impression (20 char).

Specifications (18)

Coder Model	Ink Jet Printer IJP – MX1-A
Display	4.3" capacitive full color Touch Screen LCD with LED backlight.
Languages	English, Spanish, French, German, Chinese, etc.
Input Device	4.3" 800x480 colour LCD touch screen & Computer Software.
Printable Images	Alphanumeric, Logo, Date/Time, Counter, Variable Barcode, etc. UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA128, PDF417, DATAMATRIX, QR
Printing Area	1 to 6 lines of 120 char. each from 2 to 12.7 mm high.
Message Capacity	Store upto 999 messages with Message Name.
Printing Speed	Max. 60 meters/min for 1 to 6 line printing at 300 / 600 dpi
Prints Using	Hewlett-Packard (hp) TIJ 2.5 Print-head for spraying ink
Print Distance	Max. 6 mm from substrate down or in front.
Inking Medium	42 cc disposable pre-mix ink in Cartridge form with head.
Printing Medium	Solvent/Oil based inks (black, white, red, blue, yellow, etc.)
Ink Drying Time	Min. 5 seconds on plastics & laminates.
Impressions	Appx. 20 Lakh dot matrix char. of 2 mm per cartridge of ink
Operating Range	0 ~ +40ºC, 10% - 80% RH, non-condensing.
Supply Voltage	100 - 240 Vac, 50/60 Hz, 600 W
Dimensions	Controller 245 x 130 x 45 mm, Printhead120 x 30 x 83 mm
Weight	Controller 0.5 Kg, Print head 0.5 Kg.
