HRC-35-OC

Continuous On line Hot Roll Rotary Coder Model HRC 35 OC

Name: Continuous On line Hot Roll Rotary Coder Model HRC 35 OC
SKU: KFT-HRC-35-OC
Price: 35000 INR

₹35,000

PLC-controlled hot-roll rotary coder for continuous packaging motion, using hot-wax roller and heated type. Supplier lists FFS, flow-wrap, blister, conveyor and winder/rewinder applications; print-area dimensions differ across source sections.

Confirm configuration, availability and commercial terms with our team.

Specifications

Supply Voltage	230 Vac ± 10%, 100 VA
Printing Area	6 lines (35 mm X 60 mm)
Printing Speed	Max. 300 imprints / min. (25 Meters / min.)
Prints Using	Brass / Rubber stereos

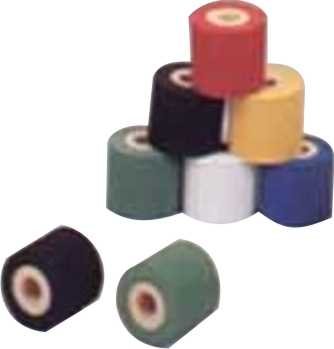

Inking Medium	Instant dry thermo-fusible hot wax ink roll.
Printing Medium	Instant drying wax ink (Black, Red, White, Yellow*, etc.)
Impressions	Appx. 1,00,000 per 32-mm. replaceable cartridge.
Weight	10 Kgs, 5 Kgs (Only head)

Expanded specification view ↓

Product details

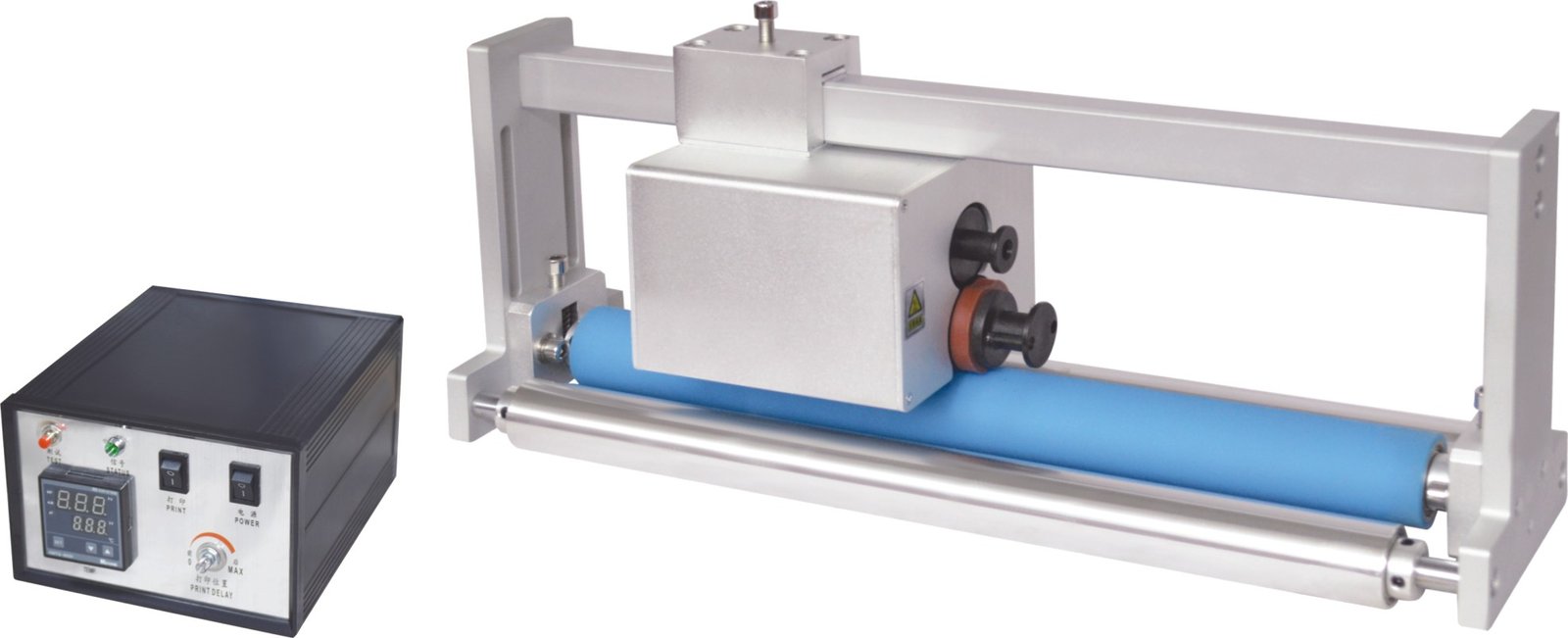

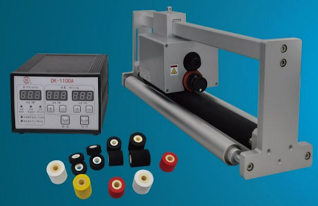

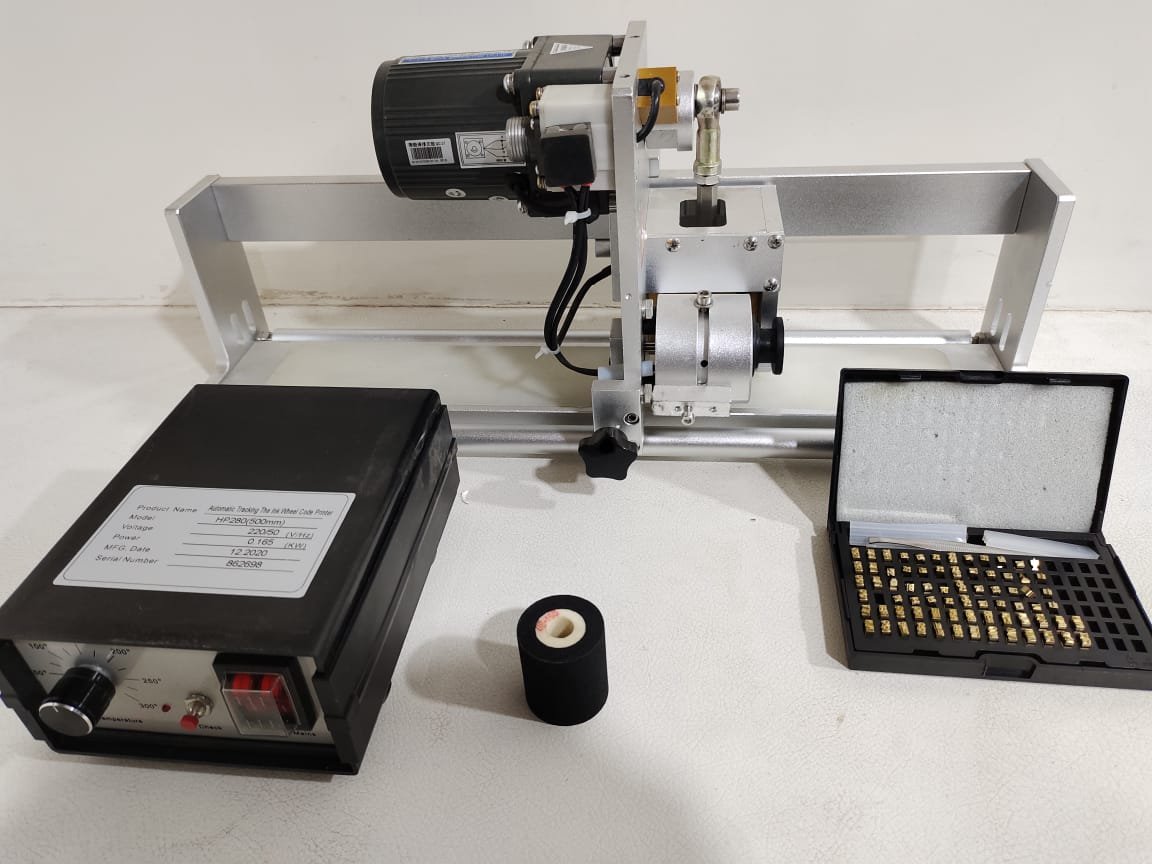

Fully Automatic PLC based Continuous On-line Hot Roll Rotary Coder Model HRC – 35 – OC with Digital LED display &soft touch keys. This coder (equivalent to MARKEM coders) uses instant dry hot wax ink roller and heated brass stereos for smudge free printing of 4 to 6 lines of size 35 X 50 mm & speed upto 300 packets per min. (Free accessories include 2 mm Brass type Numeric Character Set, Hot Wax Ink Cartridge & Print Sensor). This type of coder is suited for continuous FFS (Form Fill Seal) machines, pouch packing / flow wrapping / blister pack machines, biscuit / masala packing, conveyor systems, winder-rewinder system, etc.

Specifications (8)

Supply Voltage	230 Vac ± 10%, 100 VA
Printing Area	6 lines (35 mm X 60 mm)
Printing Speed	Max. 300 imprints / min. (25 Meters / min.)
Prints Using	Brass / Rubber stereos
Inking Medium	Instant dry thermo-fusible hot wax ink roll.
Printing Medium	Instant drying wax ink (Black, Red, White, Yellow*, etc.)
Impressions	Appx. 1,00,000 per 32-mm. replaceable cartridge.
Weight	10 Kgs, 5 Kgs (Only head)

Continuous On line Hot Roll Rotary Coder Model HRC 35 OC

Specifications

Product details

Specifications (8)
