Auto Feeding Stacker with Conveying System Model SCS 300 A 300 x 1500mm
SCS-300-A

Auto Feeding Stacker with Conveying System Model SCS 300 A 300 x 1500mm

₹99,000

Auto-feeding stacker/conveyor for stacked labels, pouches and open-flap cartons, described to separate items, convey below a printhead and collect them again. Narrative maximum item size 300×200 mm differs from table 280×320 mm maximum; height also differs. Inkjet printer compatibility is mentioned, with no included printer or numeric feeding rate established.

Confirm configuration, availability and commercial terms with our team.

Specifications

SubstrateOpen Flap Cartons / Labels / Pouches*
Substrate Size40 X 60 mm to 280 X 320 mm
Supply Voltage1Ø 220 Vac ± 10%, 180 W
Machine Size1500 L X 350 W X 750 H
Weight (Approx.)100 Kgs net. 130 Kgs gross.
Expanded specification view ↓

Product details

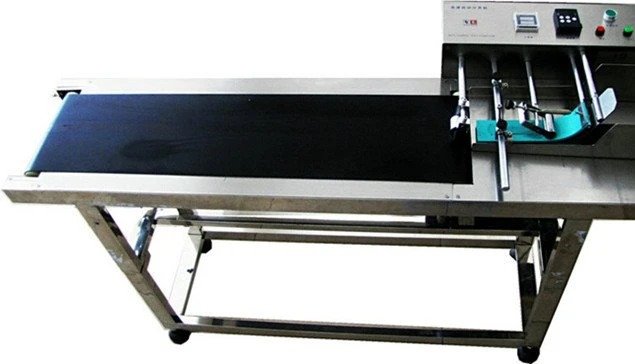

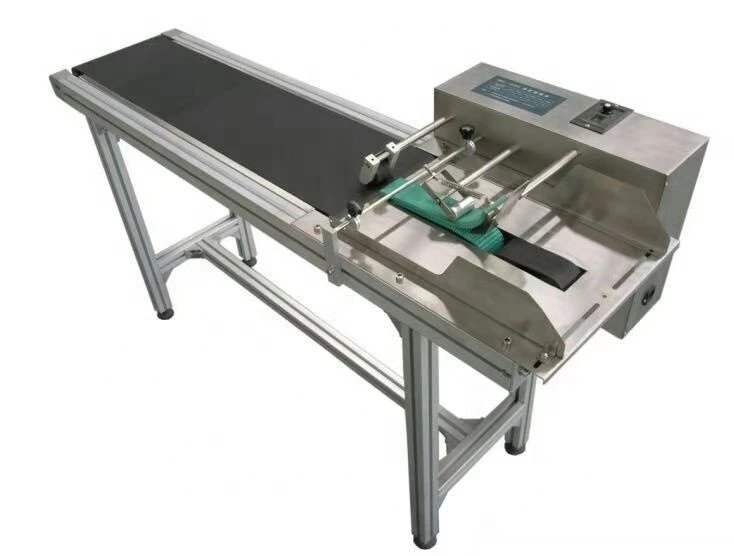

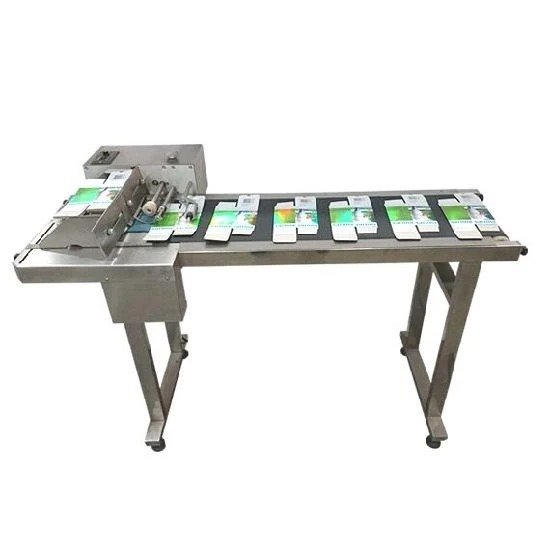

High Speed Stainless Steel variable speed Auto-Feeding Stacker with Conveying System Model SCS – 300 – A (12” x 1500mm) of size 300 mm width × 1.5 Meter long & 700 mm height Stainless Steel machine for automatically dispensing pouches, labels & cartons (Max. size 300mm × 200mm) from the stack at high variable speeds. This finds wide usage with the Ink Jet Printers (Model IJP-P2128 / Prodigit / M3S) & can be used to automatically feed large quantities of Labels, Pouches & Cartons at high speeds with guaranteed accuracy for picking of single item from the slanted stack. The labels, pouches or cartons are stacked on the tray (Dispenser) for feeding, automatically picked up, fed below the Print Head one by one via guide track and stacked back in the collection tray automatically at very high speeds.

Specifications (5)

SubstrateOpen Flap Cartons / Labels / Pouches*
Substrate Size40 X 60 mm to 280 X 320 mm
Supply Voltage1Ø 220 Vac ± 10%, 180 W
Machine Size1500 L X 350 W X 750 H
Weight (Approx.)100 Kgs net. 130 Kgs gross.
