IJP-CIJ-700M
Expanded specification view ↓

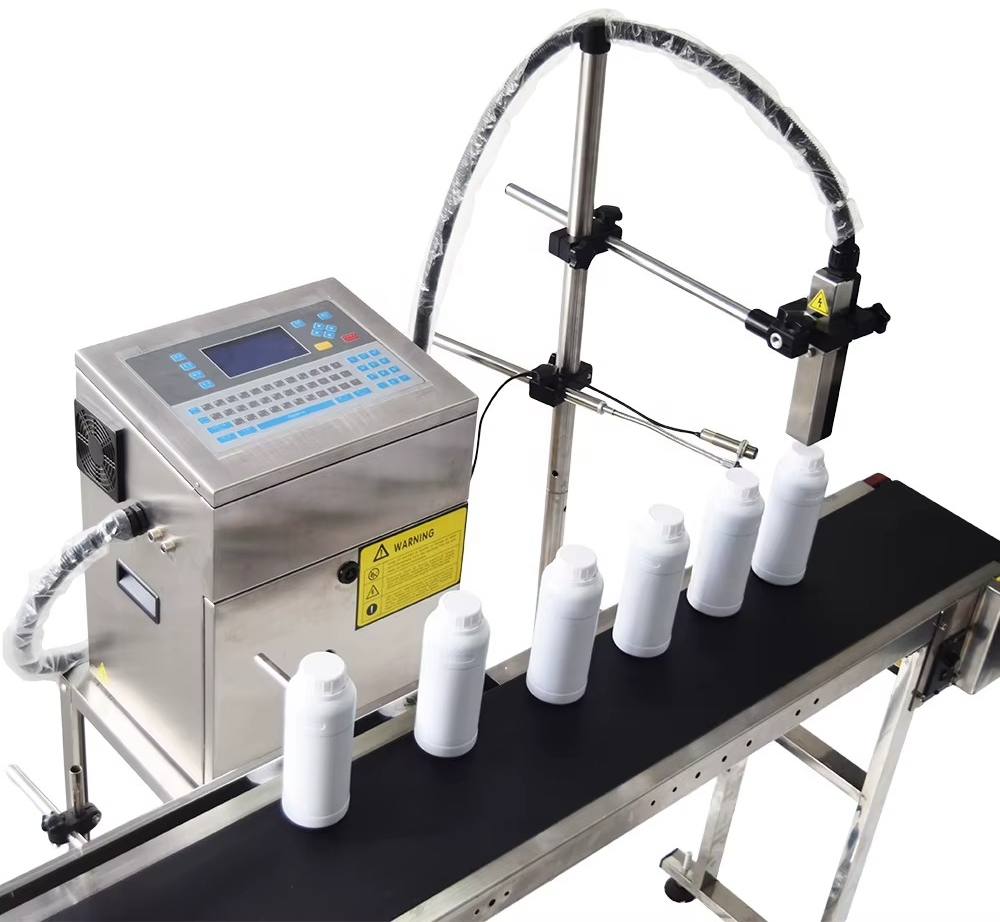

Low Cost On Line Industrial Continuous Ink Jet Printer CIJ Model IJP CIJ 700M
₹149,000

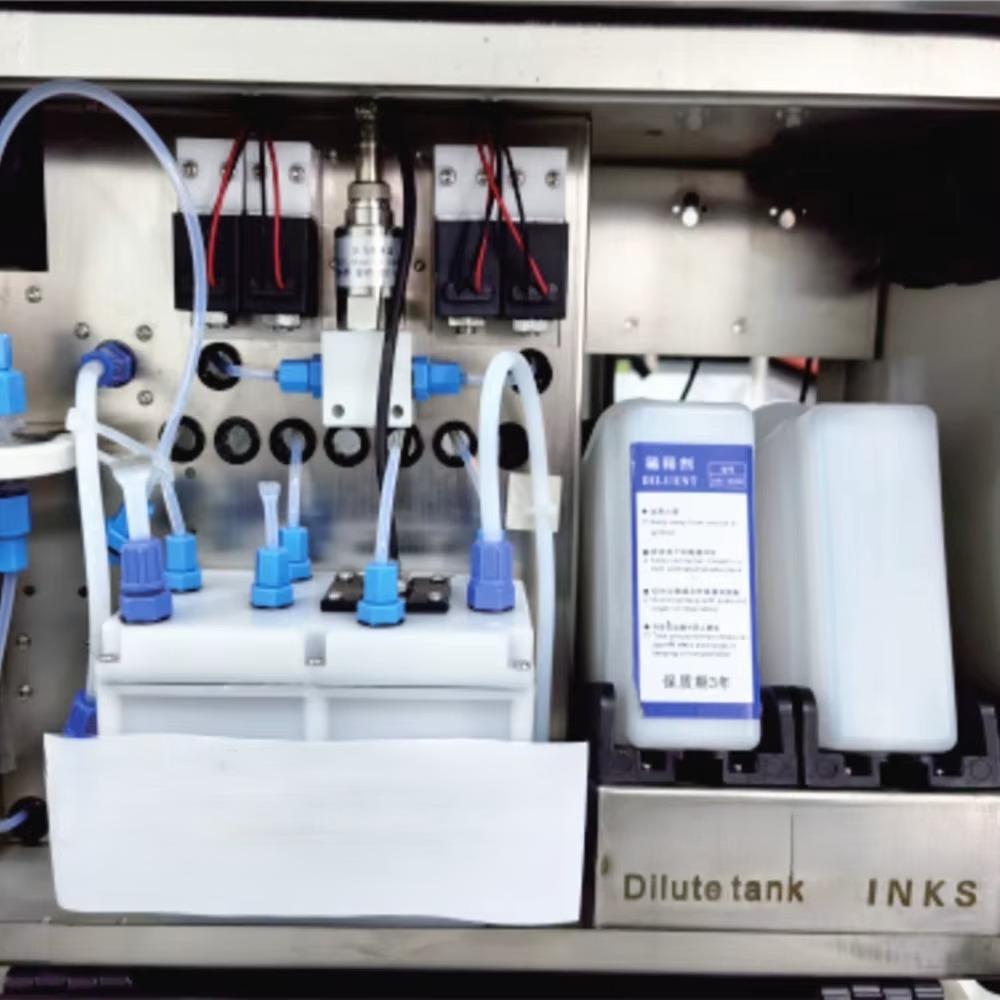

Online CIJ printer with ink/solvent monitoring, maintenance alerts, self-clean and self-detection claims. Supplier describes a standby-restart capability and a separate white/yellow pigment W variant.
Confirm configuration, availability and commercial terms with our team.
Specifications
| Coder Model | IJP – CIJ-700M |
|---|---|
| Speed | Fast mode 180 m/min (7 dots) |
| Font Matrix | 5*5, 8*8, 8*16, 12*12, 16*16, 24*24 |
| Barcode | Code 39, EAN8, EAN13, Code 128, QR Code, Data Matrix |
| Data Interface | USB 2.0 |
| Signal Interface | Photocell sensor, Alarm light, Encoder |
| Print Height | 1-18mm |
| Print Lines | 1-4 Lines |
| Print Distance | 1mm~30mm |
| Controller | 5 inch screen with complete keyboard |
| Language | English, French, German, Greek, Italian, Korean, Persian, Portuguese, Arabic, Russian, Chinese, Spanish, Thai, Turkish, etc. (Support customization) |
| Storage | 8G ( ≧ 1000 print files) |
| Protection Level | IP55 |

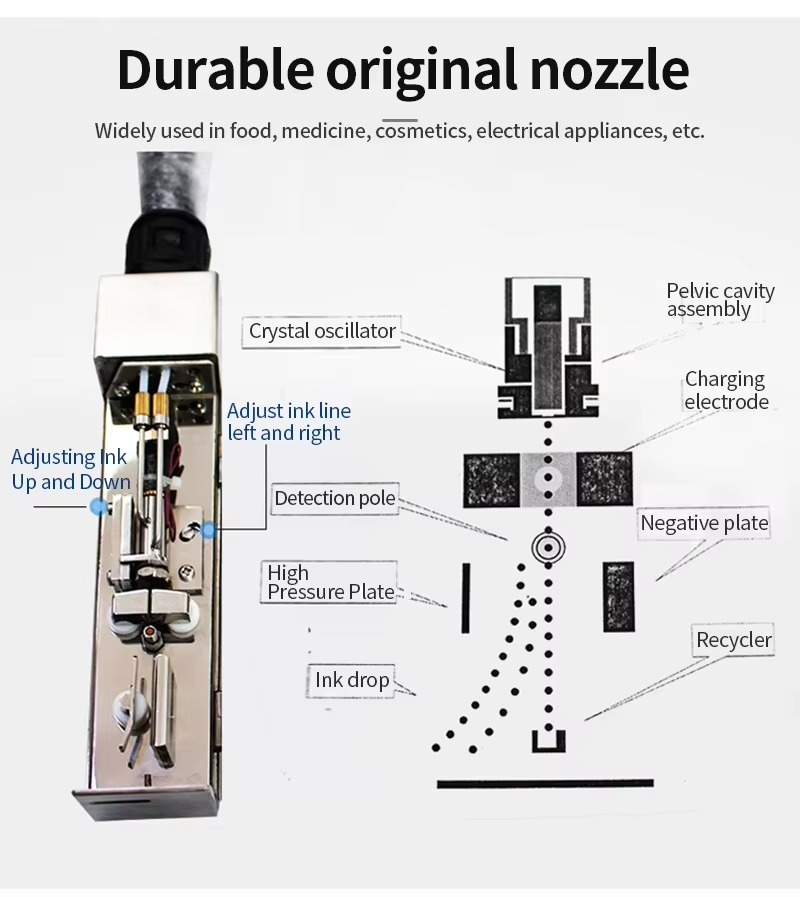

| Print Head | Path length: 2700mm; Head length: 256mm; Nozzle diameter: 60/50μm |
| Consumable Capacity | Ink: 750ml/bottle; Make up: 750ml/bottle |
| Ink Consumption | Around 70 million words per liter of ink (5*7) |
| Make-Up Consumption | 5ml/Hr or 30 million character/2mm ink |
| Working Condition | 0℃ - 45 ℃ (32° F - 113° F), 0-90%RH (non-condensing) |
| Voltage & Power | 110-240V, AC, 50/60HZ, 120W |
| Machine Weight | 28kg |
| Extended Parts | Extra photoelectric interface, External encoder device, Placing desk |
| Dimensions(L*W*H) | 500*370*260mm |
| Certification | CE |
| Warranty | 1 year |
