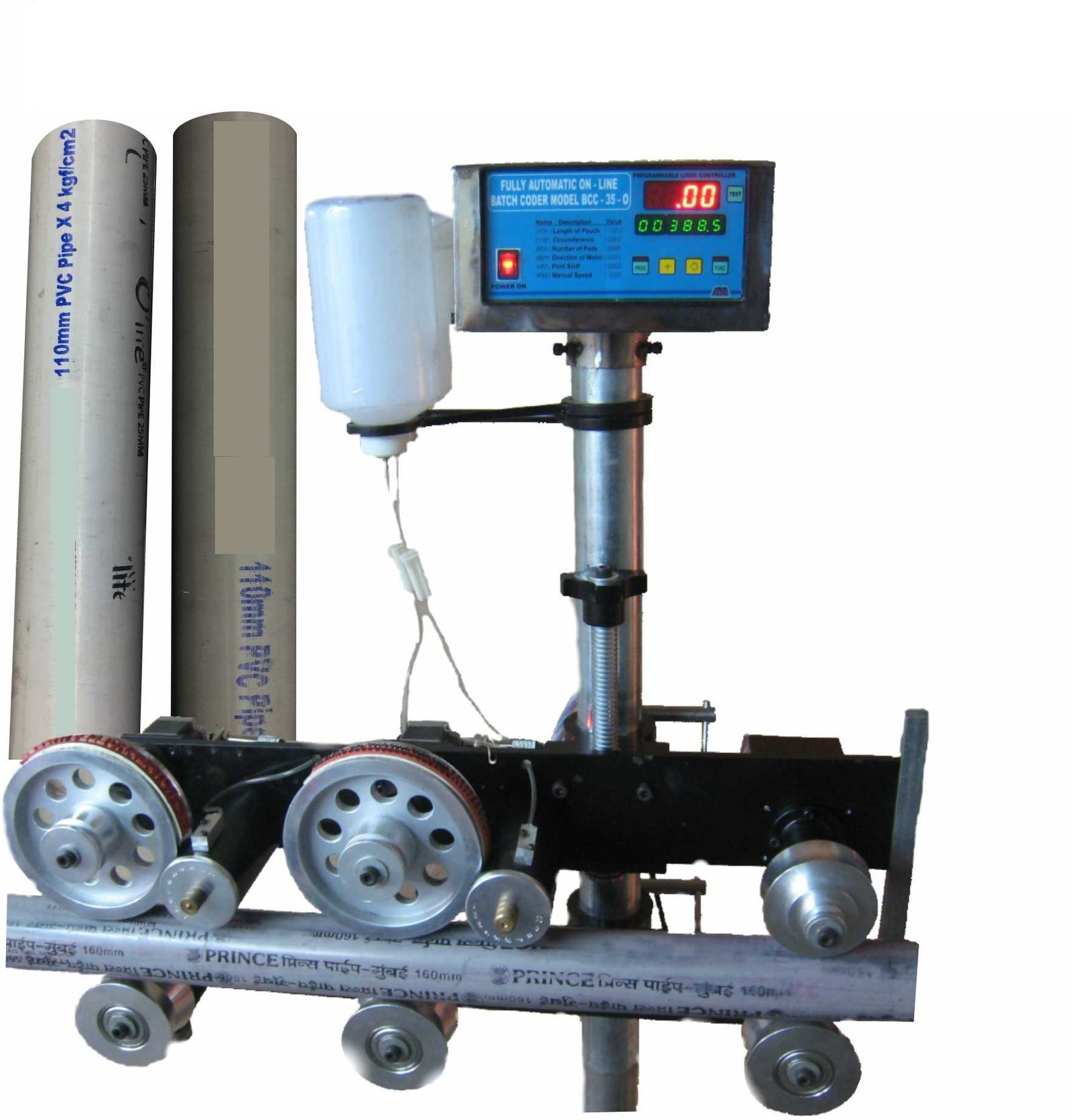

Motorized On line Pipe Coder Model PPC 35 O

Motorized On-line Pipe Coder Model PPC – 35 – O is a compact, fully automatic PLC based printer for 1 to 4 lines printing of ISI mark, Mfg. Dt., Company Name, Logos, etc. on all types of rigid or soft type PVC / Polyethylene / HDPE / PV pipes & tubes, etc. of diameter 20 mm to 200 mm during extrusion process. The message to be printed is very easily composed by just sticking the low-cost rubber / nylon stereos (easily changeable) on to the print wheel. The inking is in the form of rechargeable cartridge, so colour of printing can be changed easily by changing cartridge. The PLC has a bright LED display to set the printing repeat from 0.5 Meter to 25 Meters. It also displays the length of pipe extruded, no. of prints that have taken place & the linear speed of extrusion in meters / min. Also, a production length can be set & it can give an alarm & relay signal after the preset length of pipe has been extruded. (Free accessories include 1 Lit. Blue Ink, 1 Lit. Solvent, 6 mm Flat Rubber Character Set, Double Sided Tape & Ink Cartridge). These coders are ideal for Automatic On-Line Coding on various types of tubes & pipes during their extrusion process or as off-line printers also for manual printing.

Provision in the above Pipe Printer for continuous Coloured LINE from the bottom (Model PPC – 35 + Line – O) with Company Name & Data from the top.
