IJP-M3S-T

Model IJP M3S T 12.7 mm

Name: Model IJP M3S T 12.7 mm
SKU: KFT-IJP-M3S-T
Price: 19000 INR

₹19,000

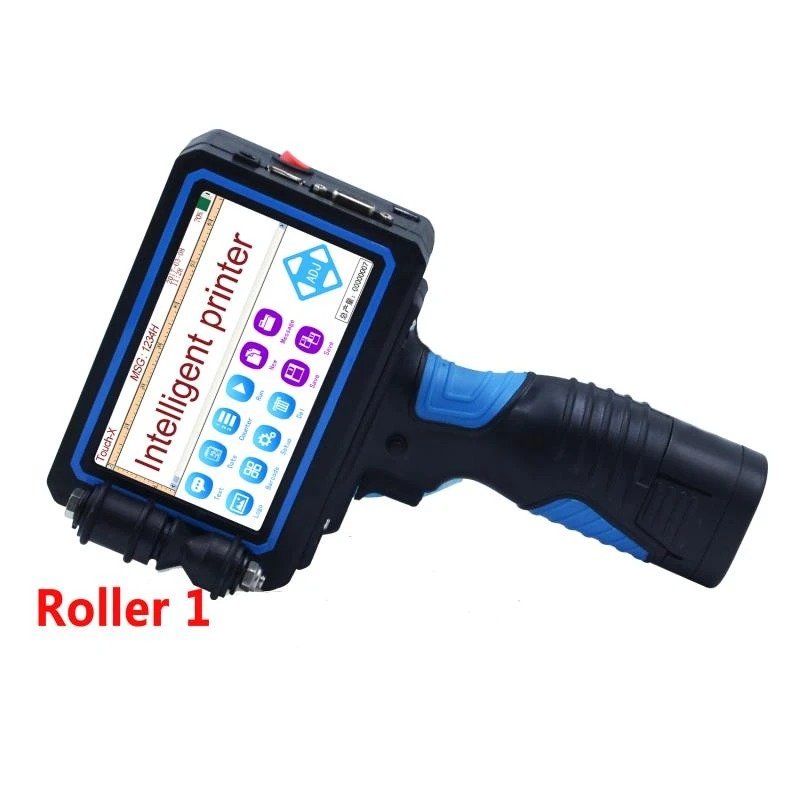

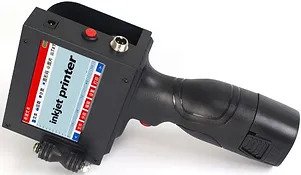

Portable cartridge inkjet printer for batch codes, dates, serial numbers, logos and variable barcodes. The supplier lists porous and nonporous applications, touch-screen editing, USB input, grouped messages and optional conveyor or stand mounting. Maximum stated character height is 12.7 mm.

Confirm configuration, availability and commercial terms with our team.

Specifications

Coder Model	Ink Jet Printer IJP – M3S-T
Display	4.3” full color Touch Screen LCD with LED backlight.
Languages	English, Spanish, French, German, Chinese, etc.
Input Device	800 x 480 Touch Screen LCD, Pen Drive.
Printable Images	Alphanumeric, Logo, Date/Time, Counter, Barcode, etc. UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA128, PDF417, DATAMATRIX, QR
Printing Area	1 to 6 lines of 2000 characters from 1.2 to 12.7 mm high.
Printing Direction	Adjustable at any angle within 360 degree
Message Capacity	Store upto10,000 messages with Message Name.
Printing Speed	Max. 60 meters/min for 1 to 6 line printing at 300-600 dpi
Prints Using	Hewlett-Packard (hp) TIJ 2.5 Print-head for spraying ink
Print Distance	Max. 6 mm from substrate down or in front.
Inking Medium	42 cc disposable pre-mix ink in Cartridge form with head.
Printing Medium	Solvent/Oil based inks (black, white, red, blue, yellow, etc.)
Ink Drying Time	Min. 5 seconds on plastics & laminates.
Impressions	Appx. 20 Lakh dot matrix char. of 2 mm per cartridge of ink
Operating Range	10 ~ +38ºC, 10% - 80% RH, non-condensing.
Supply Voltage	90 - 240 Vac, 50/60 Hz, 5 W
Battery Voltage	12.6 V lithium battery, 10 hours use / 20 hours standby
Dimensions	L140 x H190 x D54 mm
Weight	800g excluding cartridge.

Expanded specification view ↓

Product details

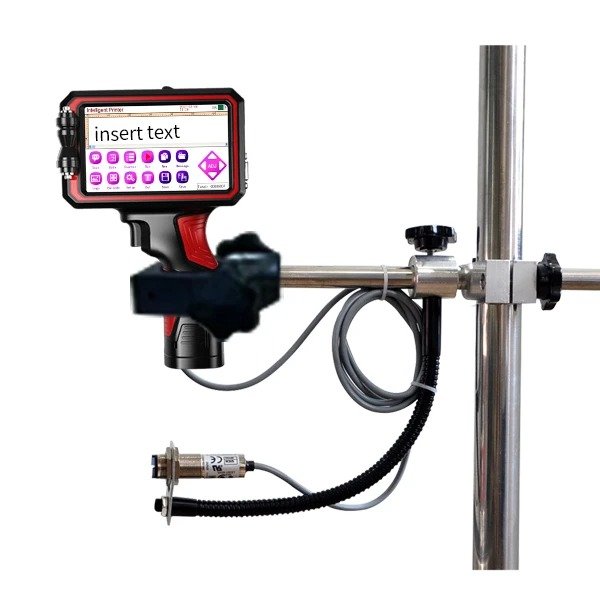

AIMS brand (made in Taiwan) LOW COST Industrial Handheld Non-Contact Ink Jet Printer Model IJP – M3S-T (12.7 mm), which is a 4-in-1 Compact design, Zero Maintenance, 300-600 dpi high resolution, Mains / Battery Powered SIX line (character height 1.2 to 12.7 mm) Printer & can be used on Porous / Non-Porous products to print B.No., Exp.Date, Time, Serial No. (AGMARK), Logos, Scannable variable Bar Codes, etc. on labels, cartons, pouches, drums, containers, etc. It is fully programmable using the 5-inch full color Touch Screen LCD or with input from USB Pen Drive and is also capable of printing Multi-Segment / Grouped messages. It can also be mounted on conveyor / stand for On-Line Printing.

The system is inclusive of below mentioned accessories worth Rs. 10,000/- free of cost:

a. Hard Aluminum Carry Case with molded slots for printer & accessories.

b. 1 No. 2200 mAh Rechargeable Batteries.

c. 1 No. disposable Pre-mix Black ink cartridge.

d. Operator Tool Kit, Operation & Maintenance Manual.

This printer is fully Electronic without CORE system &does not have any air pump, viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the disposable ink cartridges making it very user friendly for the Operator. The running / Printing cost is only about 5 Paise per impression (25 char).

Specifications (20)

Coder Model	Ink Jet Printer IJP – M3S-T
Display	4.3” full color Touch Screen LCD with LED backlight.
Languages	English, Spanish, French, German, Chinese, etc.
Input Device	800 x 480 Touch Screen LCD, Pen Drive.
Printable Images	Alphanumeric, Logo, Date/Time, Counter, Barcode, etc. UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA128, PDF417, DATAMATRIX, QR
Printing Area	1 to 6 lines of 2000 characters from 1.2 to 12.7 mm high.
Printing Direction	Adjustable at any angle within 360 degree
Message Capacity	Store upto10,000 messages with Message Name.
Printing Speed	Max. 60 meters/min for 1 to 6 line printing at 300-600 dpi
Prints Using	Hewlett-Packard (hp) TIJ 2.5 Print-head for spraying ink
Print Distance	Max. 6 mm from substrate down or in front.
Inking Medium	42 cc disposable pre-mix ink in Cartridge form with head.
Printing Medium	Solvent/Oil based inks (black, white, red, blue, yellow, etc.)
Ink Drying Time	Min. 5 seconds on plastics & laminates.
Impressions	Appx. 20 Lakh dot matrix char. of 2 mm per cartridge of ink
Operating Range	10 ~ +38ºC, 10% - 80% RH, non-condensing.
Supply Voltage	90 - 240 Vac, 50/60 Hz, 5 W
Battery Voltage	12.6 V lithium battery, 10 hours use / 20 hours standby
Dimensions	L140 x H190 x D54 mm
Weight	800g excluding cartridge.
