Egg Printer

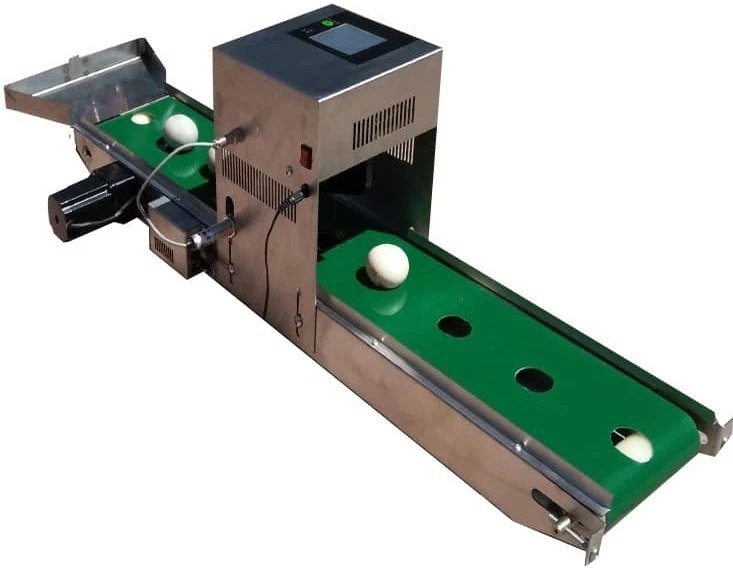

Single Head Egg Jet Printer Model IJP EGG 16C 9mm
IJP-EGG-16C

Single Head Egg Jet Printer Model IJP EGG 16C 9mm

₹149,000

Single-head printer for one row of eggs on an included conveyor, with 2.8-inch touchscreen and computer/USB/memory-card editing. Machine storage is stated as 30 messages, separately from unlimited card storage.

Confirm configuration, availability and commercial terms with our team.

Specifications

Coder ModelIJP – EGG–16C
Supply Voltage1Ø,100 to 240 Vac, 50~60 Hz, 150 VA
Operating Range0~45 deg. C, 10~90% RH non-condensing.
Printing Area1~ 4 lines from 2~ 9 mm high.
Printing SpeedMax. 20 Meters / min. for 1 to 4 line printing.
Prints UsingThermal foam type print head for spraying ink.
Printing Distance0 ~ 5 mm
Inking Medium45 mL. Disposable pre-mix ink cartridge
Printing MediumFood Grade inks (Red, Blue, Green, Purple, etc.), easy to fill.
ImpressionsAppx. 1.2 million eggs with 2 mm characters per set of 6 cartridges of ink.
Conveyor Length0.95 Meters
Dimensions117 × 28 × 20 cm, packing size 200 × 40 × 50 cm.
Weight16 Kgs for machine with conveyor.
Expanded specification view ↓

Product details

Colored Touch Screen Single-Head Egg Jet Printer Model IJP – EGG–16C (9mm), which is an economical, Zero Maintenance, user friendly, high resolution, FOUR line, Non-Contact printer specially designed to print on 1 row of eggs moving on conveyor. The system comes complete with conveyor system to feed eggs & can easily be integrated with existing production lines & can print Company Name, Serial No., LOGO, Pro. Dt., Exp. Dt., B. No., QR Code, etc. It is a High-Speed printer & has a 2.8” Colored Touch Screen Display for setting all parameters. There is a simple drag-and-drop editing software that is used to enter the information on the computer, saves it to the memory card, and then the card is put in the machine via USB. The card can store unlimited messages, the machine itself holds 30 messages. It has a capacity of printing appx. 2000 ~ 3,000 eggs / hour of soil eggs, firewood eggs, foreign eggs, duck eggs, pine eggs, preserved eggs, colorful eggs, etc.

The system is inclusive of below mentioned accessories worth `40,000/- free of cost:

a. Special Conveyor system with head Stand.

b. Product Detector with stand.

c. 1 Nos. disposable Pre-mix Food Grade 45 mL. ink cartridges.

d. Operator Tool Kit, Operation & Maintenance Manual.

This printer is fully Electronic without CORE system & does not have any air pump, viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the disposable ink cartridges making it very user friendly for the Operator. The running / Printing cost is only about 2 Paise per impression (25 char).

Specifications (13)

Coder ModelIJP – EGG–16C
Supply Voltage1Ø,100 to 240 Vac, 50~60 Hz, 150 VA
Operating Range0~45 deg. C, 10~90% RH non-condensing.
Printing Area1~ 4 lines from 2~ 9 mm high.
Printing SpeedMax. 20 Meters / min. for 1 to 4 line printing.
Prints UsingThermal foam type print head for spraying ink.
Printing Distance0 ~ 5 mm
Inking Medium45 mL. Disposable pre-mix ink cartridge
Printing MediumFood Grade inks (Red, Blue, Green, Purple, etc.), easy to fill.
ImpressionsAppx. 1.2 million eggs with 2 mm characters per set of 6 cartridges of ink.
Conveyor Length0.95 Meters
Dimensions117 × 28 × 20 cm, packing size 200 × 40 × 50 cm.
Weight16 Kgs for machine with conveyor.
