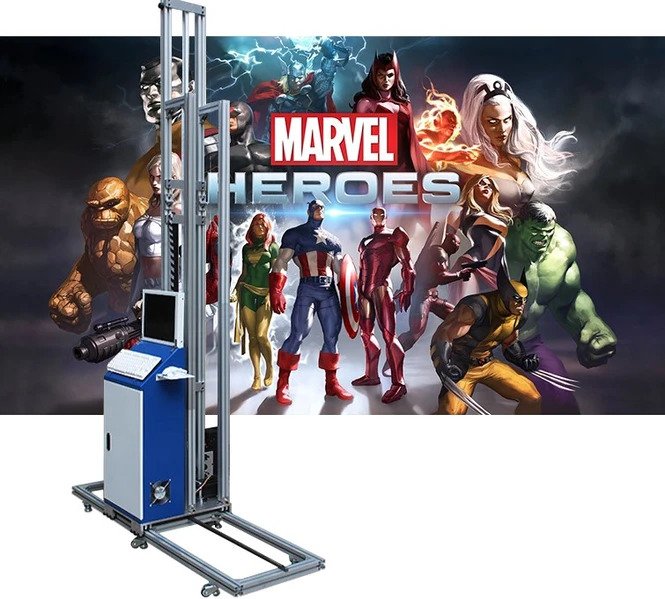

Automatic 3D Wall Printing Machine Model WPM 260
WPM-260

Automatic 3D Wall Printing Machine Model WPM 260

₹769,000

Wall printing machine with wired/wireless control, surface tracking, interruption recovery and integrated computer. The page mixes water-based WPM-260 and UV-equipped WPM-260-UV configurations; material, ink and price applicability need confirmation.

Confirm configuration, availability and commercial terms with our team.

Specifications

ModelWPM-260 / 260-UV
Using InkSpecial environmental protection water-based ink (waterproof, anti stripping)
Control ModeWired / wireless printing
Surface TrackingHyperbolic banner sensor, up and down bidirectional induction
Ink Supply SystemPositive pressure system single color single supply, 4-color ink bin
Print Size2.5 Height × width, more than 2 meters can be seamless splicing
Applicable MediaWhite wall, ceramic tile, glass, metal, acrylic, paper, etc
Color Drawing TechnologyMicro piezoelectricity spray, variable ink drop, high tolerance error emerging technology, automatic memory recovery technology for construction interruption
Print Resolution360x720 / 720x1080 / 720x1440 / 1080x1440 / 1440x2880 dpi
Certification QualificationGreen environmental protection certification, national standard test qualified (GB 18582-2001, gbt9756-2001), CE certification
Printing Speed M2 / H (M '/ H)Fast mode –; 15; Quality mode –; 7
Production Mode –10; HD mode –; 5
External Dimensionlength 700* width 300* height 2600 mm, (foldable)
Machine WeightMachine 60kg (fuselage 30kg + 3 guide rails 30kg)
Expanded specification view ↓

Product details

Automatic 3D Wall Printing Machine Model WPM-260 can be applied to a variety of materials wall, for example White Wall, Latex Paint Wall, Shell powder wall, ceramic tile, glass KT board. Supports printing color ink and white ink at the same time. Print height can be customized, unlimited length. One printing head can print 15,000 – 40,000 square meters. High speed processor with 8-core CPU. Complete computer is integrated, so no need for laptop. High quality UV ink. Equipped with ink curing lights for uv model, no restrictions on any material quality of fine picture, good color, waterproof protection of the sun protection more lasting, no need for waterproof treatment. One set of inks - 5 colors; Red / Yellow / Blue / Black / White; each color 500ml; one set of uv ink costs Rs. 10,500/-, which can print 150 square meters. So the average of Ink consumption 16.7ml/sqm. The cost is Rs. 70/sqm. One set of water-based inks cost Rs. 8,500/-, cost is Rs. 57/sqm.

Specifications (14)

ModelWPM-260 / 260-UV
Using InkSpecial environmental protection water-based ink (waterproof, anti stripping)
Control ModeWired / wireless printing
Surface TrackingHyperbolic banner sensor, up and down bidirectional induction
Ink Supply SystemPositive pressure system single color single supply, 4-color ink bin
Print Size2.5 Height × width, more than 2 meters can be seamless splicing
Applicable MediaWhite wall, ceramic tile, glass, metal, acrylic, paper, etc
Color Drawing TechnologyMicro piezoelectricity spray, variable ink drop, high tolerance error emerging technology, automatic memory recovery technology for construction interruption
Print Resolution360x720 / 720x1080 / 720x1440 / 1080x1440 / 1440x2880 dpi
Certification QualificationGreen environmental protection certification, national standard test qualified (GB 18582-2001, gbt9756-2001), CE certification
Printing Speed M2 / H (M '/ H)Fast mode –; 15; Quality mode –; 7
Production Mode –10; HD mode –; 5
External Dimensionlength 700* width 300* height 2600 mm, (foldable)
Machine WeightMachine 60kg (fuselage 30kg + 3 guide rails 30kg)
