IJP-CL7

On Line Large Character Ink Jet Printer Model IJP CL7 50mm

Name: On Line Large Character Ink Jet Printer Model IJP CL7 50mm
SKU: KFT-IJP-CL7
Price: 299000 INR

₹299,000

Online large-character valve printer with graphic display, QWERTY keyboard and USB input. Supplier lists local-language computer fonts and manual operation with accessories. Ink and solvent are supplied in litre bottles.

Confirm configuration, availability and commercial terms with our team.

Specifications

Coder Model	Ink Jet Printer IJP – CL7
Display	Graphic LCD display
Input Device	QWERTY Keyboard & USB Pen Drive
Printable Images	Alphanumeric, Logo, Date/Time, Counter, etc.
Printing Area	1 to 2 lines of 72 to 144 char. each from 20 to 50 mm high.
Printing Matrix	5 × 5, 5 × 7, 10 × 10, 10 × 16, 16 × 16
Message Capacity	100 memory location, 144 characters (5 × 7) per message, 72 characters (16 ×16) per message
Printing Speed	Max. 120 meters/min for 1 to 2 line printing
Prints Using	16 Nozzle electromagnetic valve Print-head for spraying ink
Print Distance	Max. 5 to 50 mm from substrate – Down, Side or Up.
Inking Medium	1000 cc ink in Bottle form, 1000g ±5g
Printing Medium	MEK / Solvent based inks (black, red, blue, white, yellow,etc.)
Ink Drying Time	Min. 2 seconds on plastics & laminates.
Impressions	Appx. 4.75 lakh char. of 50 mm per liter of ink.
Operating Range	10 ~ +40ºC, 30% - 70% RH, non-condensing.
Supply Voltage	AC 220 Vac, 50 Hz, 100Watt
Dimensions	240 × 190 × 100 mm
Weight	10 Kg including full ink cartridge.

Expanded specification view ↓

Product details

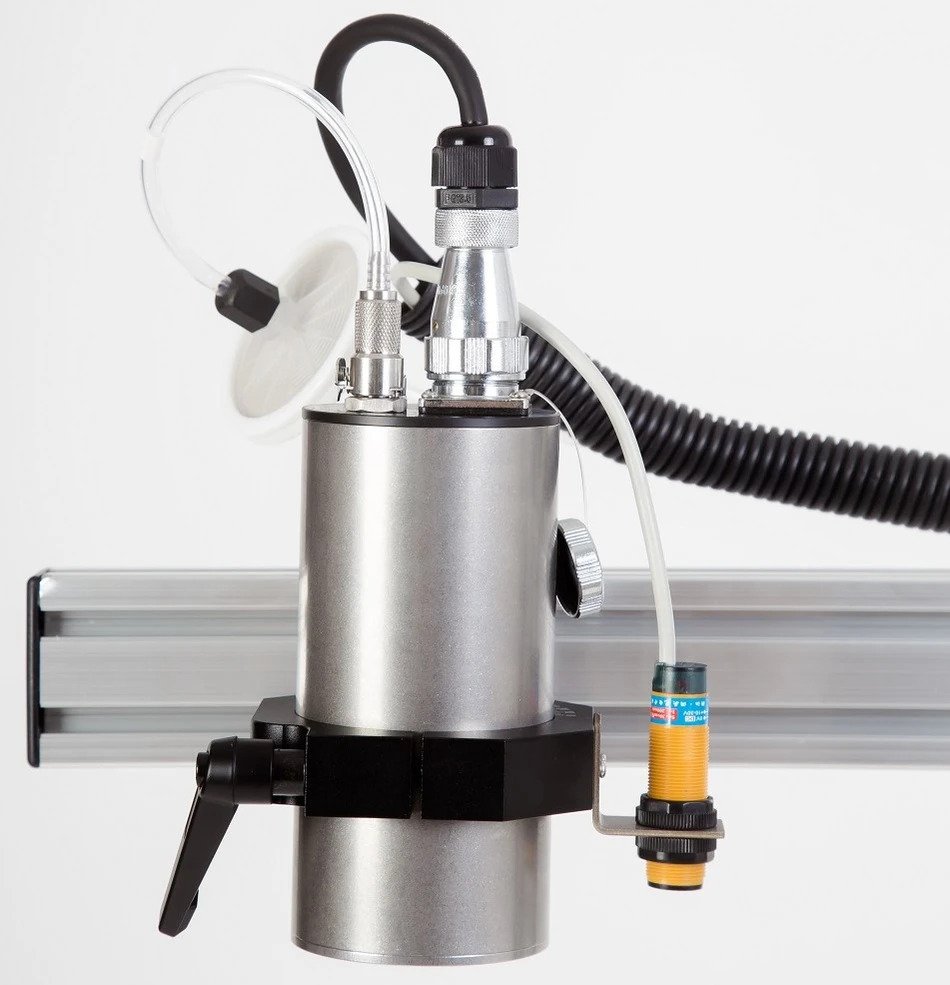

Industrial On-Line Non-Contact Large Character Ink Jet Printer Model IJP – CL7 (50mm), which is a Zero Maintenance, Mains Powered TWO line (character height 20 to 50 mm) Printer & can be used on Porous / Non-Porous products to print B.No., Exp.Date, Time, Serial No. (AGMARK), Logos, etc. on labels, cartons, pouches, drums, containers, etc. It is an ultra-compact and light inkjet printer equipped with a print-head with electromagnetic valves. It has built in keyboard & display where it can print 2 lines Data & all Computer Fonts (local languages) at a very low price. It can also be used by Hand for Manual Printing (with accessories).

The system is inclusive of below mentioned accessories worth Rs. 30,000/- free of cost:

a. Molded Box with molded slots for printer & accessories.

b. 1 No. Pre-mix ink bottle – 1 Lit., 1 No. Solvent Bottle – 1 Lit.

c. Operator Tool Kit, Operation & Maintenance Manual.

This printer is fully Electronic &does not have any viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the ink cartridges making it very user friendly for the Operator. The running / Printing cost is only about 33 Paisa per impression (20 char of 50 mm height).

Specifications (18)

Coder Model	Ink Jet Printer IJP – CL7
Display	Graphic LCD display
Input Device	QWERTY Keyboard & USB Pen Drive
Printable Images	Alphanumeric, Logo, Date/Time, Counter, etc.
Printing Area	1 to 2 lines of 72 to 144 char. each from 20 to 50 mm high.
Printing Matrix	5 × 5, 5 × 7, 10 × 10, 10 × 16, 16 × 16
Message Capacity	100 memory location, 144 characters (5 × 7) per message, 72 characters (16 ×16) per message
Printing Speed	Max. 120 meters/min for 1 to 2 line printing
Prints Using	16 Nozzle electromagnetic valve Print-head for spraying ink
Print Distance	Max. 5 to 50 mm from substrate – Down, Side or Up.
Inking Medium	1000 cc ink in Bottle form, 1000g ±5g
Printing Medium	MEK / Solvent based inks (black, red, blue, white, yellow,etc.)
Ink Drying Time	Min. 2 seconds on plastics & laminates.
Impressions	Appx. 4.75 lakh char. of 50 mm per liter of ink.
Operating Range	10 ~ +40ºC, 30% - 70% RH, non-condensing.
Supply Voltage	AC 220 Vac, 50 Hz, 100Watt
Dimensions	240 × 190 × 100 mm
Weight	10 Kg including full ink cartridge.
