Online Printers
On line Ink Coder Model BCC 35 O
BCC-35-O

On line Ink Coder Model BCC 35 O

₹35,000

PLC-controlled contact ink coder with main-machine speed tracking, digital controls and counter. Intended for continuous FFS, flow wrapping, blister packing, conveyors and winding systems. Source print-area dimensions differ.

Confirm configuration, availability and commercial terms with our team.

Specifications

Supply Voltage230 Vac ± 10%, 25 VA
Printing Area6 lines (max. 35 X 200 mm)
Printing SpeedMax. 30 Meters / min. or 600 prints per min.
Prints UsingEasily Changeable grooved/flat, rubber / nylon stereos
Inking MediumSpecial rechargeable ink cartridge
Printing MediumQuick drying liquid ink (Black, Red, White*, Golden*, etc.)
Impressions15,000 per 20 ml. charge
Weight7 Kgs, 5 Kgs (Only head)
Expanded specification view ↓

Product details

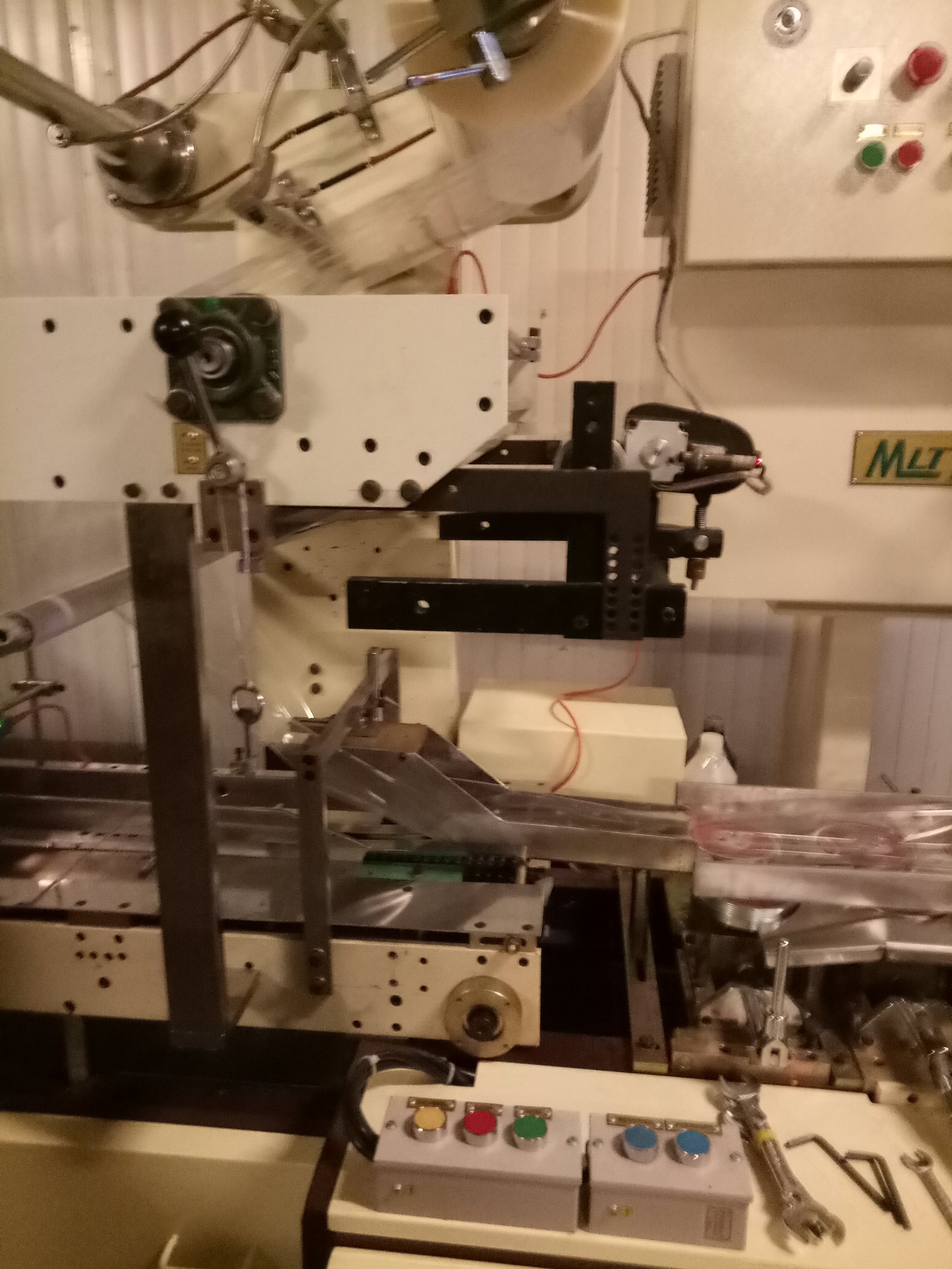

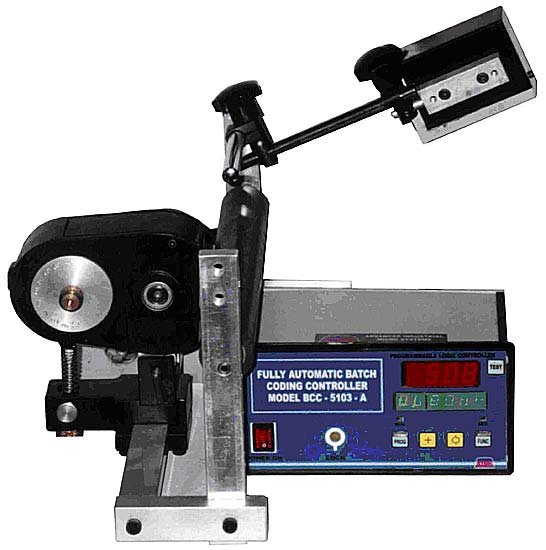

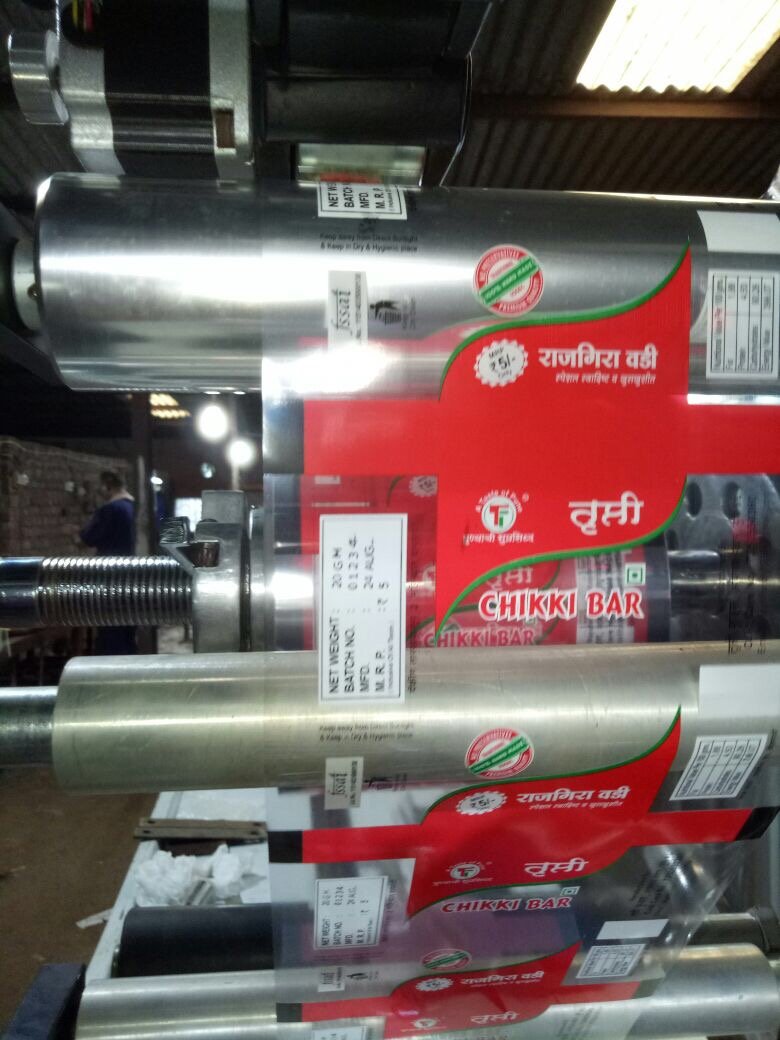

Fully Automatic PLC based On-line Ink Coder Model BCC – 35 – O with Digital display, soft touch keys& production counter, for registered printing of B.No., Mfg.Dt., Exp.Dt., M.R.P. `, etc. with facility for automatic speed tracking of the main machine. It uses easily changeable flat type rubber / nylon stereos for 4 to 6 line printing of size 35 X 50 mm & speed upto 600 packets per min. (Free accessories include ½ Lit. Ink, ½ Lit. Solvent, 3 mm Flat Rubber Character Set, Ink Cartridge & Print Sensor).This coder is best suited for continuous type variable speed FFS (Form Fill Seal) machines, pouch packing / flow wrapping / blister pack machines, biscuit / masala / oil / milk / water packing, conveyor systems, winder-rewinder system, etc.

Specifications (8)

Supply Voltage230 Vac ± 10%, 25 VA
Printing Area6 lines (max. 35 X 200 mm)
Printing SpeedMax. 30 Meters / min. or 600 prints per min.
Prints UsingEasily Changeable grooved/flat, rubber / nylon stereos
Inking MediumSpecial rechargeable ink cartridge
Printing MediumQuick drying liquid ink (Black, Red, White*, Golden*, etc.)
Impressions15,000 per 20 ml. charge
Weight7 Kgs, 5 Kgs (Only head)
