SCS-250P

AIMS brand Compact Continuous flat belt Compact variable speed conveyor with inbuilt 12.7mm TIJ Printer Model SCS 250P 250 x 610mm

Name: AIMS brand Compact Continuous flat belt Compact variable speed conveyor with inbuilt 12.7mm TIJ Printer Model SCS 250P 250 x 610mm
SKU: KFT-SCS-250P
Price: 79000 INR

₹79,000

AIMS compact stainless-steel stack-separating conveyor with integrated 12.7 mm TIJ printer and thickness-adjustment knob for packaging bags/cards. Name indicates 250×610 mm but narrative belt is 200×610 mm. Narrative speed 1–15 m/min conflicts with table 10–50 m/min. SCS-250 S without printer is separately mentioned.

Confirm configuration, availability and commercial terms with our team.

Specifications

Substrate	Open Flap Cartons / Labels / Pouches*
Substrate Size	75 × 75 mm to 300 × 200 mm
Conveying Speed	10-50M/min (adjustable)
Supply Voltage	1Ø 220 Vac ± 10%, 60 W

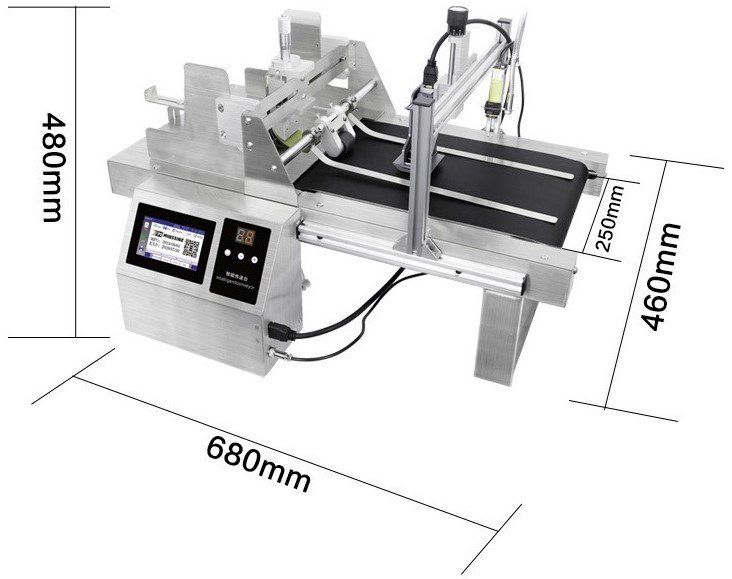

Machine Size (mm)	680 L X 460 W X 480 H
Weight (Approx.)	30 Kgs net. 35 Kgs gross.

Expanded specification view ↓

Product details

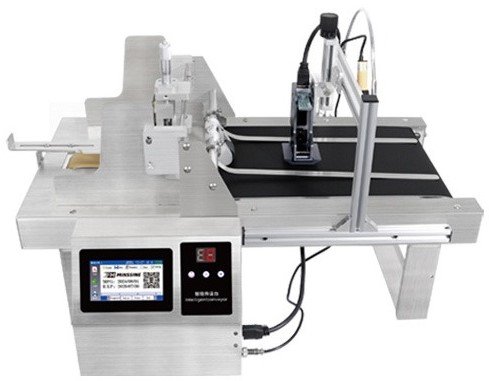

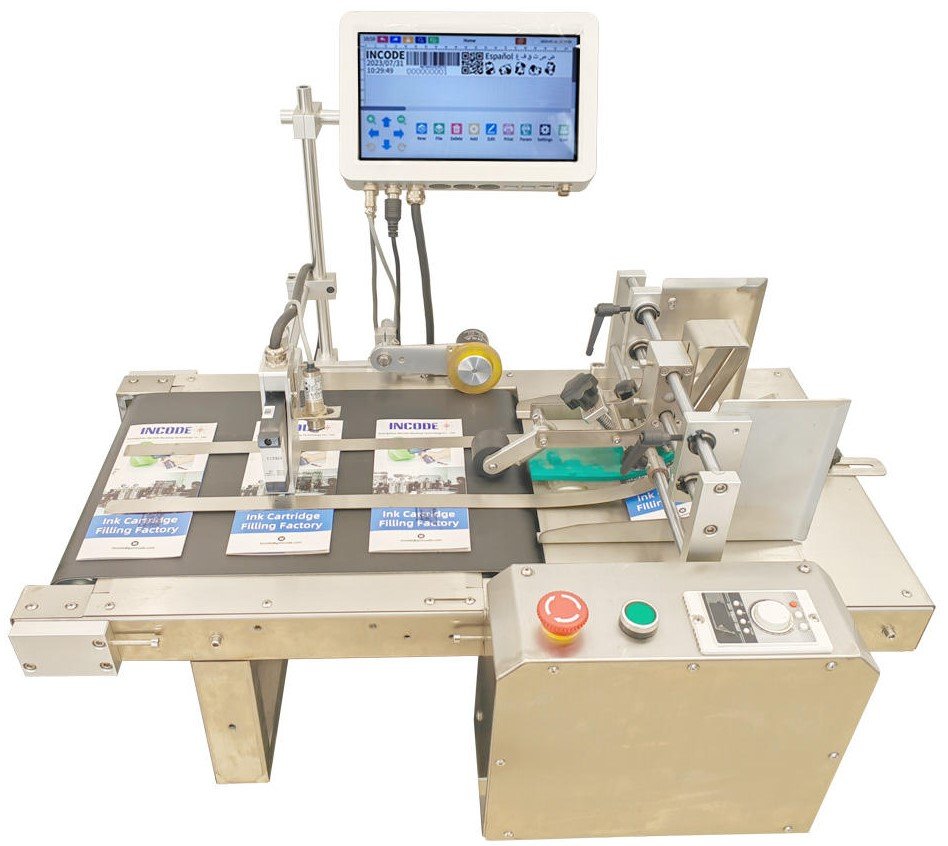

AIMS brand Compact Continuous flat belt Compact variable speed conveyor with inbuilt 12.7mm TIJ Printer Model SCS – 250P (250 x 610mm) with PVC conveyor belt of size 200 mm width X 610 mm long & 70 mm height Stainless Steel machine, having a Variable speed 1 to 15 meters/min. Used to automatically separate stacked packaging bags or card products into single pages, custom-made universal paging machine, effectively reducing friction paging sound and improving paging efficiency, equipped with a scale thickness fine-tuning knob, convenient for changing products of different thicknesses, the whole machine is made of stainless steel, and the surface is finely brushed.It is suitably designed to provide proper conveyance to objects for proper Ink Jet Printing.

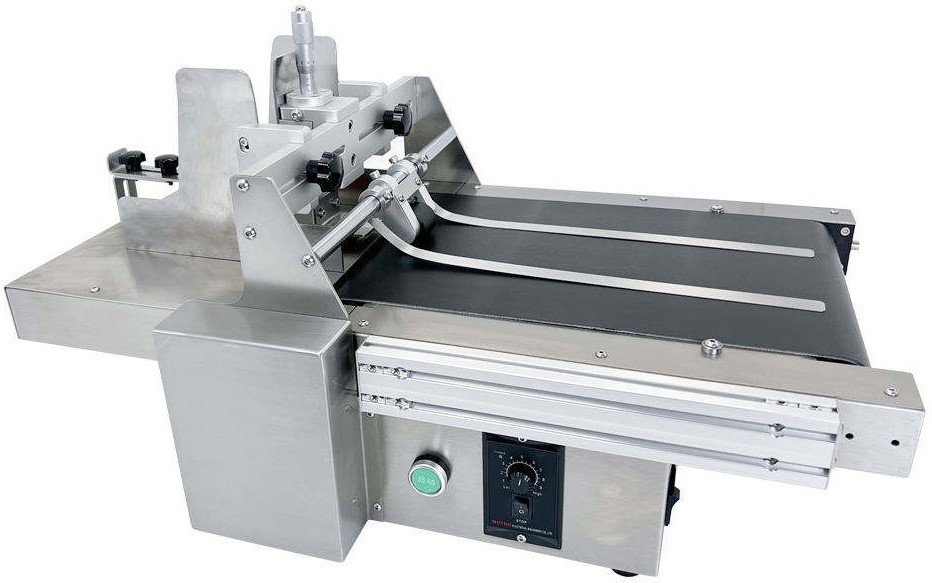

Optional Same as above without Printer Model SCS – 250S (250 x 610mm)

Specifications (6)

Substrate	Open Flap Cartons / Labels / Pouches*
Substrate Size	75 × 75 mm to 300 × 200 mm
Conveying Speed	10-50M/min (adjustable)
Supply Voltage	1Ø 220 Vac ± 10%, 60 W
Machine Size (mm)	680 L X 460 W X 480 H
Weight (Approx.)	30 Kgs net. 35 Kgs gross.
