Laser Printers

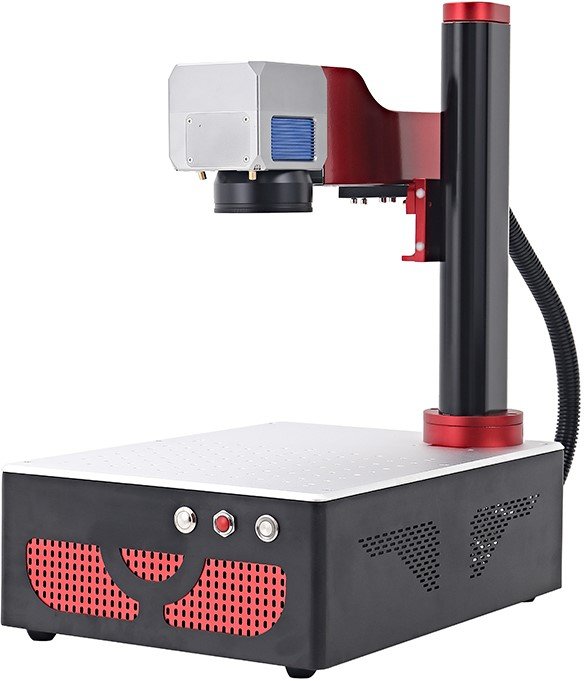

30W Smart Colored MOPA Static Laser Printer Model SLP M30T 110 x 110 mm
SLP-M30T

30W Smart Colored MOPA Static Laser Printer Model SLP M30T 110 x 110 mm

₹589,000

Offline MOPA laser marker with independently adjustable pulse frequency and pulse width. Supplier lists colour marking on stainless steel, aluminium-oxide blackening and fine phone-case marking. Work-area dimensions conflict between title and table.

Confirm configuration, availability and commercial terms with our team.

Specifications

ModelSLP-M20T / SLP-M30T / SLP-M50T
Work Area (mm)100 × 100 (Optionally 200 × 200, 300 × 300)
Laser Power20 / 30 / 50 W
Laser Repetition Frequency20 KHz – 80 KHz
Wavelength1064 ± 10 nm
Beam Quality (M²)< 2
Minimum Line Width0.012 mm
Minimum Character0.15 mm
Marking Speed≤ 7000 mm/s (≤ 420 M/min)
Marking Depth≤ 0.5 / 0.7 mm
Repeat Precision± 0.002 mm
Positioning SystemDouble Red Light Focus
Laser LifetimeMore than 100000 hours without failure.
InputText, Graphics, Variable Bar Code, Serial No. (Meter Marking), Date, TXT file, RS232 (TCP/IP), etc.
Dimension (mm) / Weight670 mm × 210 mm × 570 mm / 25 kg
Expanded specification view ↓

Product details

Industrial Off-Line Compact 30W Smart Colored MOPA Static Laser Printer Model SLP-M30T (110 x 110 mm) is a long-term alternative to ink-jet printers. The laser beam is focused onto the surface of the material to be marked with an f-theta lens, which has the property of being able to maintain its focus throughout a plane, rather than focusing on just one spot, steered by a pair of computer-controlled mirrors. That mark can be in the form of graphical images, text, machine-readable codes (i.e. barcodes, UID codes or 2D codes), or any other type of mark imaginable. Pulse frequency, and pulse width of MOPA can be adjusted independently. Therefore, Mopa lasers can achieve effects of color marking (on stainless steel) and fine marking of mobile phone cases. Alumina blackened, fine marking. It can carry out high-quality laser marking which is clear, effective and cannot be erased (for security). The machine can run continuously 24/7 and is maintenance-free for more than 1,00,000 hours, reducing production costs, using no consumables and improving production efficiency. A fiber laser is a laser where the active medium being used is an optical fiber that has been doped in rare elements. There is some dust and smoke when laser is printing, but not as much as CO2. Marking material can be Metal (copper, aluminum, iron, stainless steel, etc.), Aluminum foil pouches, HDPE / PVC products (pipes, containers, etc.), ABS, etc.

Specifications (15)

ModelSLP-M20T / SLP-M30T / SLP-M50T
Work Area (mm)100 × 100 (Optionally 200 × 200, 300 × 300)
Laser Power20 / 30 / 50 W
Laser Repetition Frequency20 KHz – 80 KHz
Wavelength1064 ± 10 nm
Beam Quality (M²)< 2
Minimum Line Width0.012 mm
Minimum Character0.15 mm
Marking Speed≤ 7000 mm/s (≤ 420 M/min)
Marking Depth≤ 0.5 / 0.7 mm
Repeat Precision± 0.002 mm
Positioning SystemDouble Red Light Focus
Laser LifetimeMore than 100000 hours without failure.
InputText, Graphics, Variable Bar Code, Serial No. (Meter Marking), Date, TXT file, RS232 (TCP/IP), etc.
Dimension (mm) / Weight670 mm × 210 mm × 570 mm / 25 kg
