IJP-MX1-F

Model IJP MX1 F 13.5mm

Name: Model IJP MX1 F 13.5mm
SKU: KFT-IJP-MX1-F
Price: 69000 INR

₹69,000

Standalone online thermal inkjet printer with touch-screen operation and computer software input. Supplier positions its 2–12 mm print distance as an alternative to CIJ for selected applications; replacement suitability requires verification.

Confirm configuration, availability and commercial terms with our team.

Specifications

Coder Model	Ink Jet Printer IJP – MX1-F

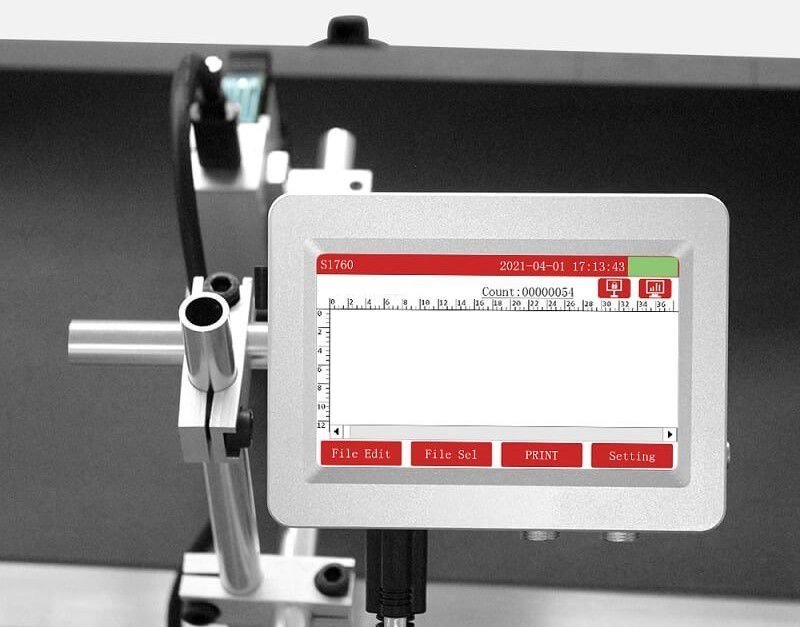

Display	5" capacitive full color Touch Screen LCD with LED backlight.
Languages	English, Spanish, French, German, Chinese, etc.
Input Device	5" 800x480 colour LCD touch screen & Computer Software.
Printable Images	Alphanumeric, Logo, Date/Time, Counter, Variable Barcode, etc. UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA128, PDF417, DATAMATRIX, QR
Printing Area	1 to 8 lines of 120 char. each from 2 to 13.5 mm high.
Message Capacity	Store upto 999 messages with Message Name.
Printing Speed	Max. 80 meters/min for 1 to 8 line printing at 800 dpi
Printing Direction	Adjustable with 360 degree rotation.
Prints Using	TIJ-13.5 Print-head for spraying ink
Print Distance	2 ~ 12 mm from substrate down or in front.

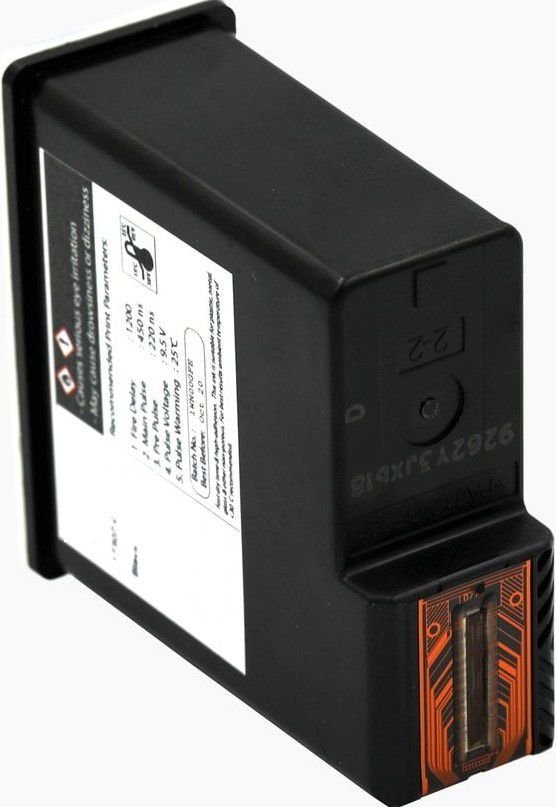

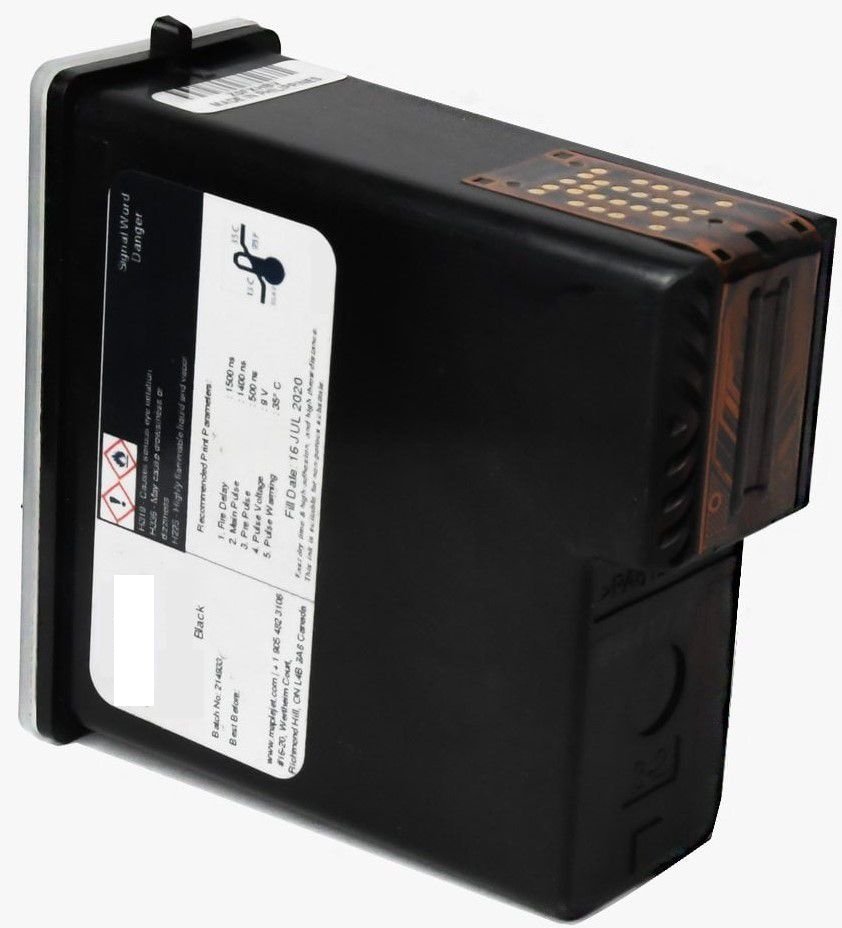

Inking Medium	55 cc disposable pre-mix ink in Cartridge form with head.
Printing Medium	Solvent/Oil based inks (black, white, red, blue, yellow, etc.)
Ink Drying Time	Min. 5 seconds on plastics & laminates.
Impressions	Appx. 30 Lakh dot matrix char. of 2 mm per cartridge of ink
Operating Range	0 ~ +45ºC, 10% - 80% RH, non-condensing.
Supply Voltage	100 ~ 240 Vac, 50/60 Hz, 600 W
Dimensions	Controller 150 x 110 x 45 mm, Printhead120 x 30 x 83 mm
Weight	Controller 0.5 Kg, Print head 0.5 Kg.

Expanded specification view ↓

Product details

AIMS brand (made in Taiwan) Smallest CIJ Replacement On-Line Non-Contact Ink Jet Printer Model IJP – MX1-F (13.5mm), with ink throwing distance of 12mm (instead of 2 ~ 5 mm as per standard HP-TIJ-2.5 printers). It is a TRUE REPLACEMENT FOR CIJ PRINTERS which have very high maintenance & running costs. It is a Compact design, Zero Maintenance, 800 dpi high resolution, EIGHT line (character height 2 to 13.5 mm) Printer & can be used on Porous / Non-Porous products to print B.No., Exp.Date, Time, Serial No. (AGMARK), Logos, Scannable Variable Bar Codes, etc. on labels, cartons, pouches, bottles, etc. It is fully programmable using the 5-inch full colour Touch Screen LCD with stand-alone operation (no PC required) where it can print 8 lines Data at a very low price.

The system is inclusive of below mentioned accessories worth Rs. 35,000/- free of cost:

a. Complete Printer stand with bracket for Conveyor mounting.

b. 1 Nos. disposable Pre-mix ink cartridge.

c. Operator Tool Kit, Operation & Maintenance Manual.

This printer is fully Electronic & does not have any air pump, viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the disposable ink cartridges making it very user friendly for the Operator. The running / Printing cost is only about 4 Paisa per impression (20 char).

Specifications (19)

Coder Model	Ink Jet Printer IJP – MX1-F
Display	5" capacitive full color Touch Screen LCD with LED backlight.
Languages	English, Spanish, French, German, Chinese, etc.
Input Device	5" 800x480 colour LCD touch screen & Computer Software.
Printable Images	Alphanumeric, Logo, Date/Time, Counter, Variable Barcode, etc. UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA128, PDF417, DATAMATRIX, QR
Printing Area	1 to 8 lines of 120 char. each from 2 to 13.5 mm high.
Message Capacity	Store upto 999 messages with Message Name.
Printing Speed	Max. 80 meters/min for 1 to 8 line printing at 800 dpi
Printing Direction	Adjustable with 360 degree rotation.
Prints Using	TIJ-13.5 Print-head for spraying ink
Print Distance	2 ~ 12 mm from substrate down or in front.
Inking Medium	55 cc disposable pre-mix ink in Cartridge form with head.
Printing Medium	Solvent/Oil based inks (black, white, red, blue, yellow, etc.)
Ink Drying Time	Min. 5 seconds on plastics & laminates.
Impressions	Appx. 30 Lakh dot matrix char. of 2 mm per cartridge of ink
Operating Range	0 ~ +45ºC, 10% - 80% RH, non-condensing.
Supply Voltage	100 ~ 240 Vac, 50/60 Hz, 600 W
Dimensions	Controller 150 x 110 x 45 mm, Printhead120 x 30 x 83 mm
Weight	Controller 0.5 Kg, Print head 0.5 Kg.
