IJP-EGG-E30S

Colored Touch Screen XY Axis Scanning Single Head Egg Tray Jet Printer Model IJP EGG E30S 12.7mm

Name: Colored Touch Screen XY Axis Scanning Single Head Egg Tray Jet Printer Model IJP EGG E30S 12.7mm
SKU: KFT-IJP-EGG-E30S-12_7MM
Price: 79000 INR

₹79,000

Single-head XY scanning printer for six-row egg trays. Supplier claims 30 eggs in an 11-second printing cycle and approximately 6,800 eggs/hour; includes tray forwarding and adjustable anti-collision nozzle support.

Confirm configuration, availability and commercial terms with our team.

Specifications

Coder Model	IJP – EGG–E30S
Supply Voltage	1Ø, 100 to 240 Vac, 50~60 Hz, 100 VA
Operating Range	0~45 deg. C, 10~90% RH non-condensing.
Printing Area	1~ 6 lines from 1.2 ~ 12.7 mm high.
Printing Speed	Max. 6,800 Eggs / hr. for 1 to 6 line printing.
Prints Using	Thermal foam type print head for spraying ink.
Printing Distance	2 ~ 5 mm
Inking Medium	42 mL. Disposable pre-mix Food Grade ink cartridge
Printing Medium	Food Grade inks (Red, Blue, Green, Purple, etc.), easy to fill.
Impressions	Appx. 25 Lakh characters of 2 mm per cartridge of ink.
Dimensions	500 × 500 × 220 mm.
Weight	11 Kgs for machine.

Expanded specification view ↓

Product details

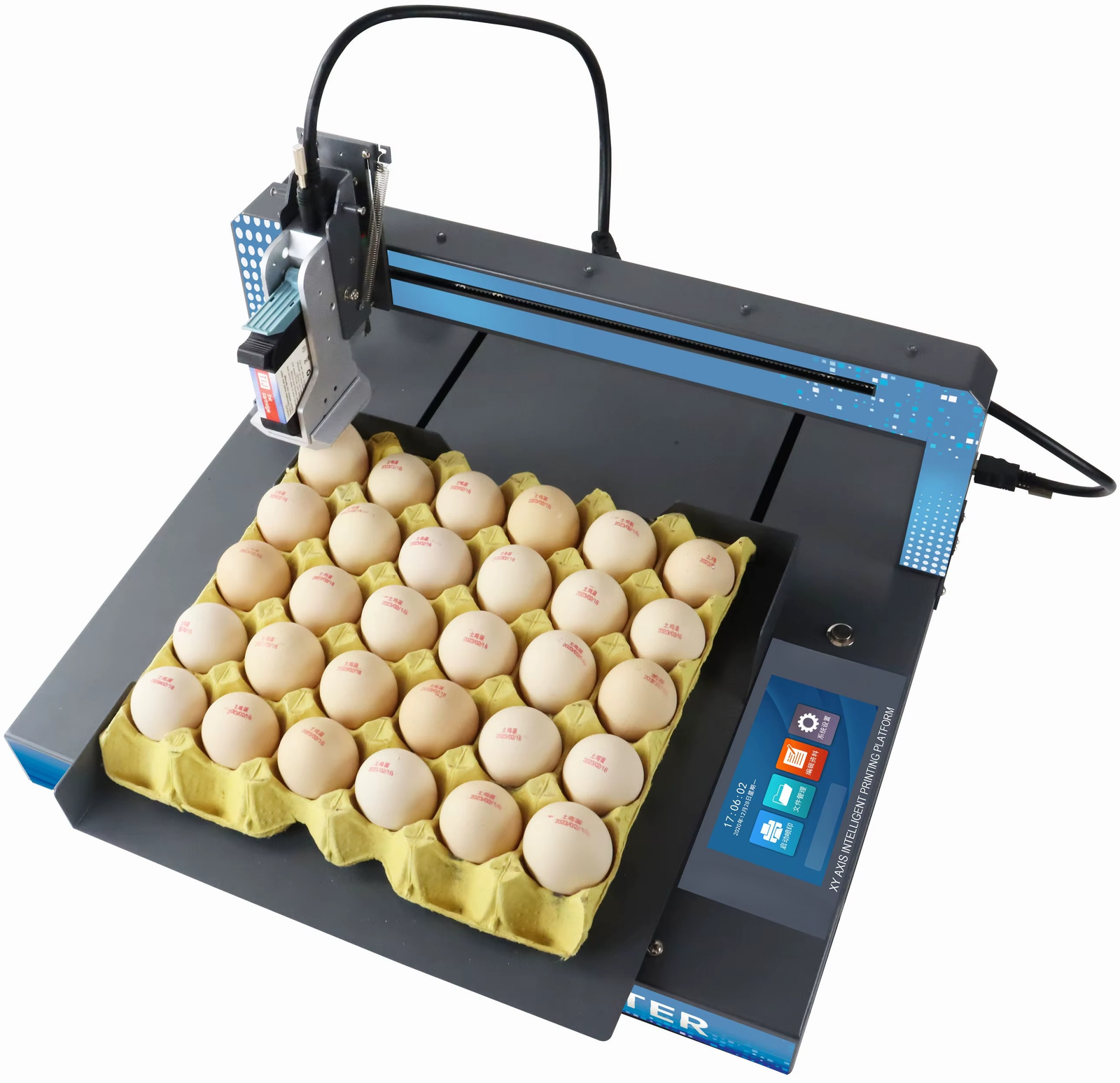

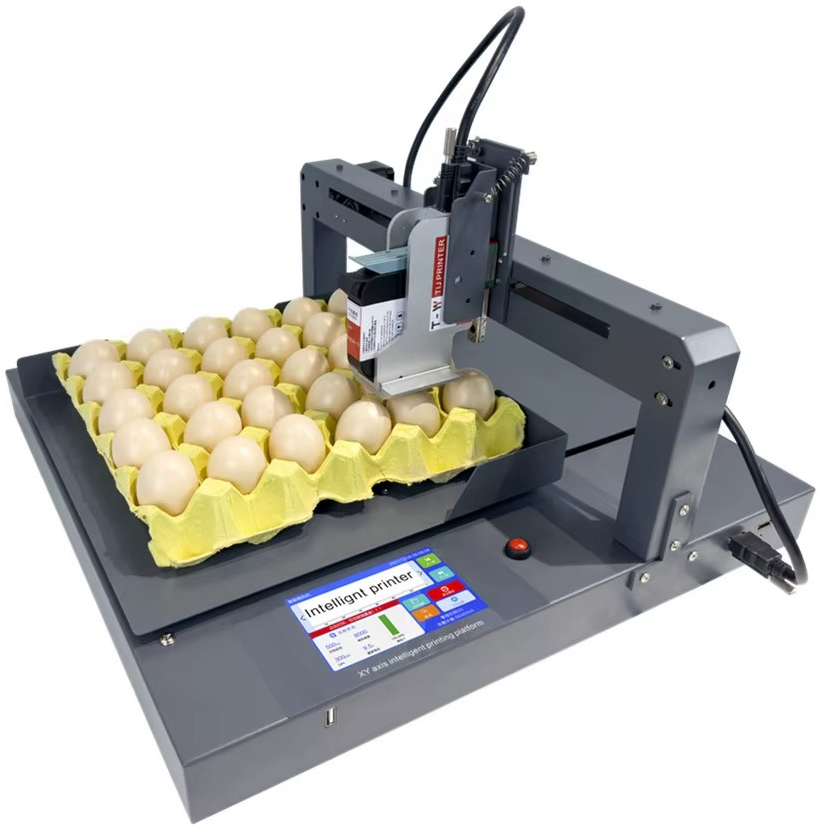

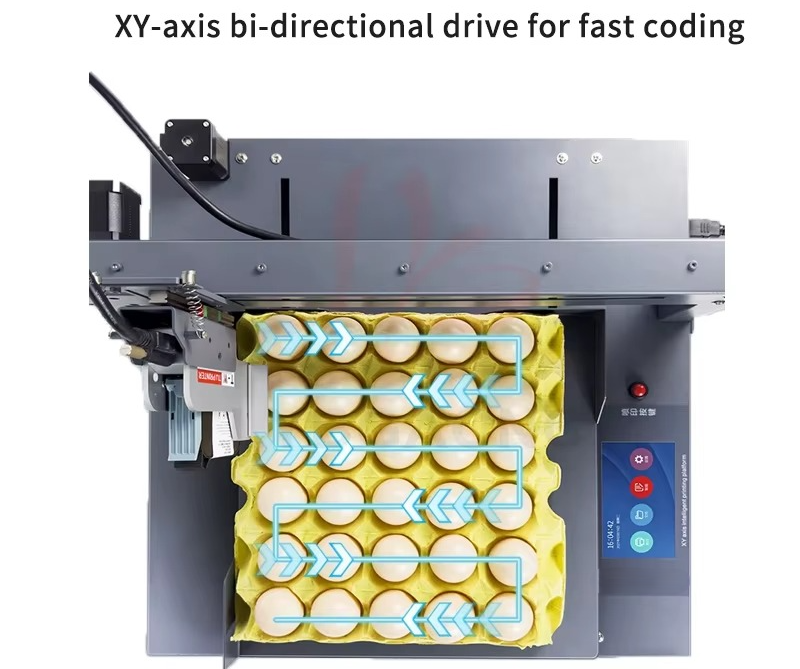

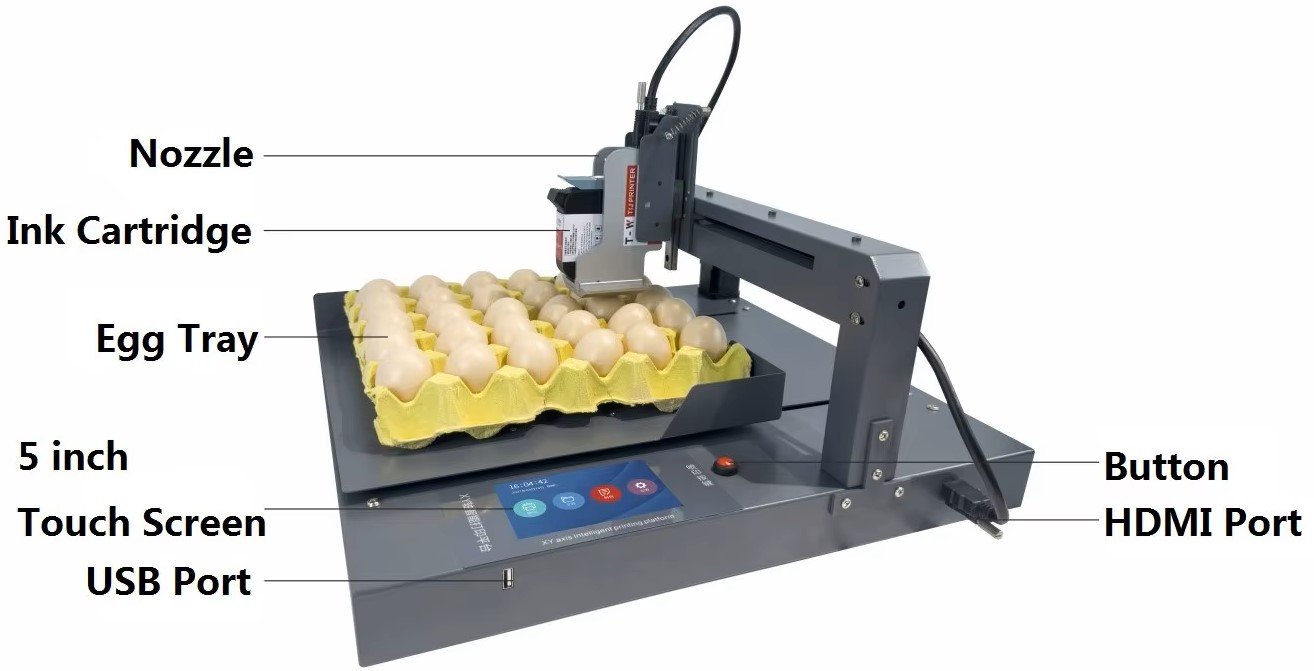

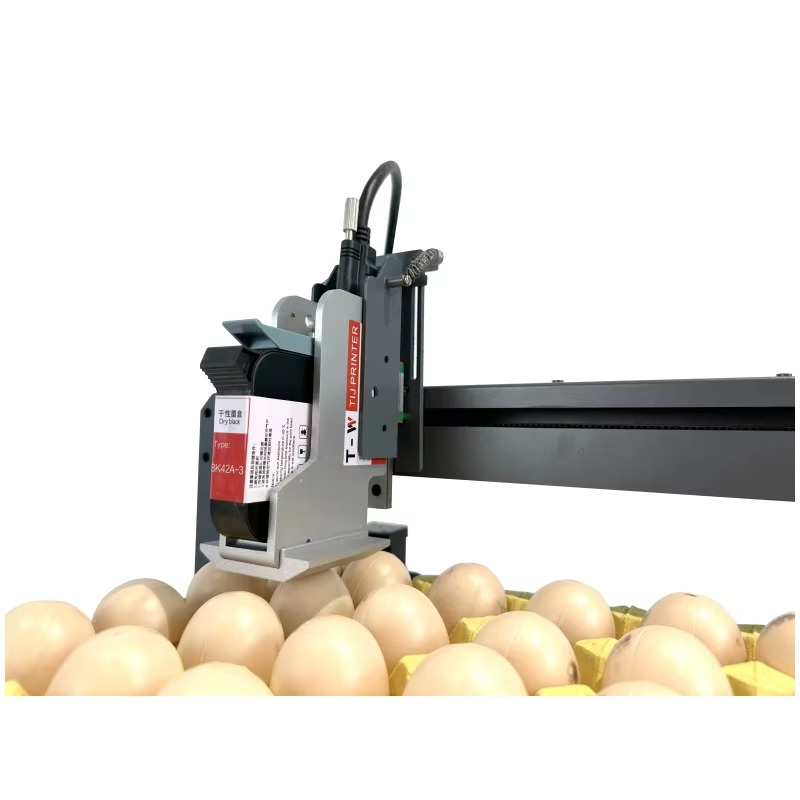

Colored Touch Screen XY Axis Scanning Single-Head Egg Tray Jet Printer Model IJP – EGG–E30S (12.7mm), which is an economical, Zero Maintenance, user friendly, high resolution, SIX line, Non-Contact printer specially designed to print on 6 rows of eggs on tray with the use of Print-Head traversing system. Prints 30 eggs on a full tray in 11 seconds. The nozzle height is adjustable, applicable to a variety of egg products. The nozzle spring-balance anti-collision device prevents collision of nozzle, in order to ensure better printing results. The system comes complete with Tray Forwarding System to feed egg trays & can print Company Name, Serial No., LOGO, Pro. Dt., Exp. Dt., B. No., QR Code, etc. It is a High-Speed multiple pass printer & has a 4.3” Colored Touch Screen Display for setting all parameters. There is a simple drag-and-drop editing software that is used to enter the information on the. The printer can store unlimited messages. It has a capacity of printing appx. 6,800 eggs / hour of soil eggs, firewood eggs, foreign eggs, duck eggs, pine eggs, preserved eggs, colorful eggs, etc. This increases the product value, reduces labor costs, saves economic expenditures.

Similar Low-Cost Simple Machine as above Model IJP-EGG-E30L (9mm)

The system is inclusive of below mentioned accessories worth ₹ 30,000/- free of cost:

a. Special Tray Forwarding System with Print head Stand.

b. Product Detector with stand.

c. 1 Nos. disposable Pre-mix Food Grade ink cartridge.

d. Operator Tool Kit, Operation & Maintenance Manual, Operation Video.

This printer is fully Electronic without CORE system & does not have any air pump, viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the disposable ink cartridges making it very user friendly for the Operator. The running / Printing cost is only about 2 Paise per impression (25 char).

Specifications (12)

Coder Model	IJP – EGG–E30S
Supply Voltage	1Ø, 100 to 240 Vac, 50~60 Hz, 100 VA
Operating Range	0~45 deg. C, 10~90% RH non-condensing.
Printing Area	1~ 6 lines from 1.2 ~ 12.7 mm high.
Printing Speed	Max. 6,800 Eggs / hr. for 1 to 6 line printing.
Prints Using	Thermal foam type print head for spraying ink.
Printing Distance	2 ~ 5 mm
Inking Medium	42 mL. Disposable pre-mix Food Grade ink cartridge
Printing Medium	Food Grade inks (Red, Blue, Green, Purple, etc.), easy to fill.
Impressions	Appx. 25 Lakh characters of 2 mm per cartridge of ink.
Dimensions	500 × 500 × 220 mm.
Weight	11 Kgs for machine.

Colored Touch Screen XY Axis Scanning Single Head Egg Tray Jet Printer Model IJP EGG E30S 12.7mm

Specifications

Product details

Specifications (12)
