Manual Printers

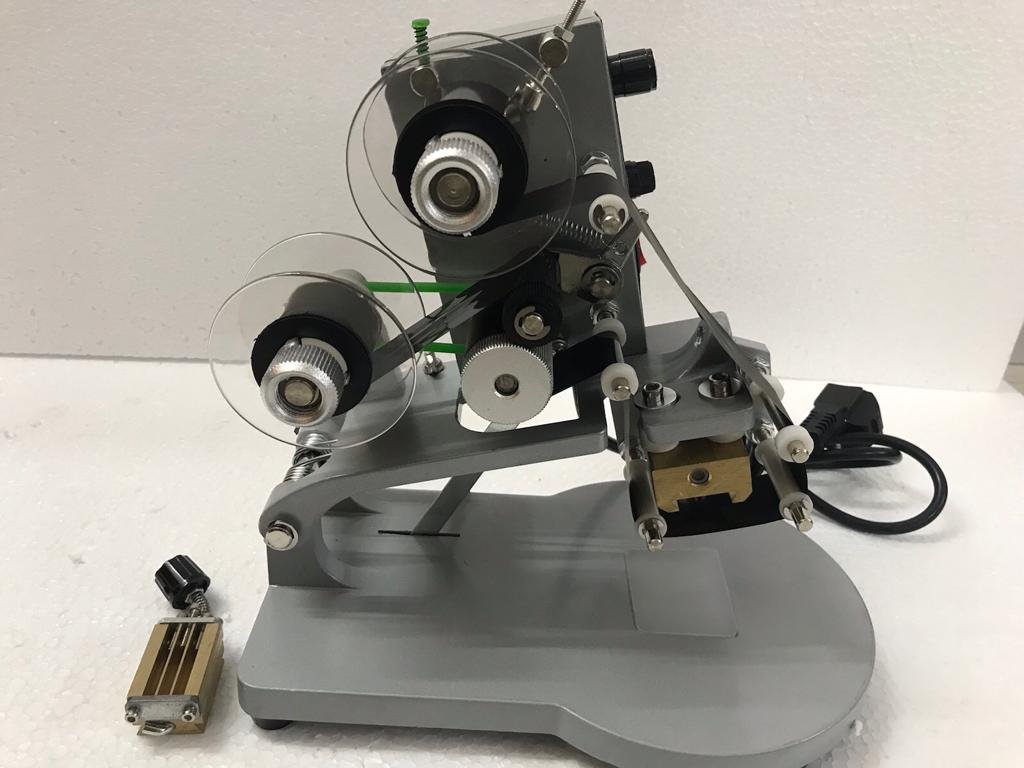

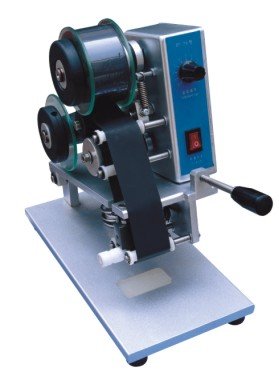

Manual Hot Foil Coder Model HFC 30 M
HFC-30-M

Manual Hot Foil Coder Model HFC 30 M

₹9,900

Manual hot-foil coder using heated brass/copper type and automatically advanced ribbon. Supplier lists pouch/carton coding and instant-dry embossed marks; description allows more lines than the table.

Confirm configuration, availability and commercial terms with our team.

Specifications

Supply Voltage230 Vac, 70 W
Printing Area3 lines of 13 char.
Printing SpeedManual 40 / min.
Prints UsingEasily Changeable Copper / Brass stereos
Printing MediumReplaceable Foil Ribbon roll (Black, Red, White, Golden, etc.)
ImpressionsAppx. 5000 impressions per 400 ft. roll of 25 to 35 mm width.
Weight4 Kgs
Dimensions mm.150L 100W 180H
Expanded specification view ↓

Product details

Manual Hot Foil Coder Model HFC - 30 - M for manual printing of B.No., Mfg.Dt., Exp.Dt., M.R.P. `, etc. using imported foil ribbon & heated Brass type stereos. The 3 to 4 line message (of 13 character in each line) to be printed is easily composed by pushing the Brass Stereos into the grooves & tightening them for speeds upto 40 impressions per minute. The inking is in the form of Foil ribbon, which passes below the stereos & is advanced automatically after each print. The brass stereos are heated to a temperature of around 150 deg. C & hit the film onto the substrate thus transferring the print with embossing which has no drying time and is better quality than pre-printed quality. (Free accessories include 2 mm Numeric Brass Character Set & Hot Foil Ribbon). This Coder is suitable for high quality manual printing on pouches, cartons, etc.

Specifications (8)

Supply Voltage230 Vac, 70 W
Printing Area3 lines of 13 char.
Printing SpeedManual 40 / min.
Prints UsingEasily Changeable Copper / Brass stereos
Printing MediumReplaceable Foil Ribbon roll (Black, Red, White, Golden, etc.)
ImpressionsAppx. 5000 impressions per 400 ft. roll of 25 to 35 mm width.
Weight4 Kgs
Dimensions mm.150L 100W 180H
