EPC-35-O

Electro Pneumatic Coder print head Model EPC 35 O

Name: Electro Pneumatic Coder print head Model EPC 35 O
SKU: KFT-EPC-35-O
Price: 19000 INR

₹19,000

Electro-pneumatic registered print head with changeable type for intermittent FFS/packaging machinery. Supplier cites milk/oil packing; air supply and mounting/control scope require confirmation.

Confirm configuration, availability and commercial terms with our team.

Specifications

Supply Voltage	230 Vac ± 10%, 10 VA
Printing Area	4 to 6 lines (max. 35 X 35 mm)
Printing Speed	Max. 150 imprints / min.
Prints Using	Easily Changeable grooved / flat, rubber / nylon stereos
Inking Medium	Special rechargeable ink cartridge
Printing Medium	Quick drying liquid ink (Black, Red, White, Golden, etc.)
Impressions	15,000 per 20 ml. charge
Weight	6 Kgs, 2 Kgs (Only head)

Expanded specification view ↓

Product details

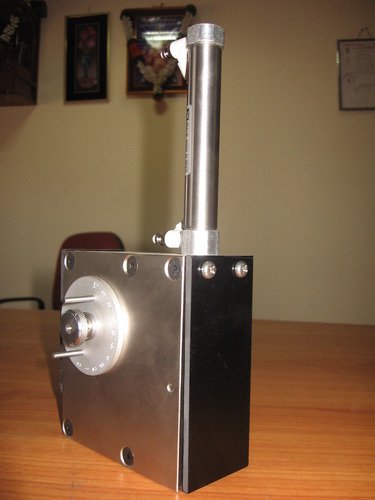

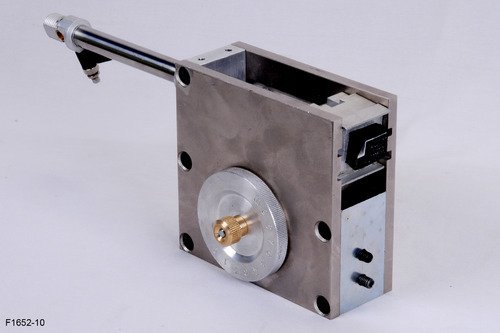

Electro - Pneumatic Coder print head Model EPC – 35 – O for registered printing of B.No., Mfg.Dt., Exp.Dt., M.R.P. `, etc. The stereos used are grooved type which can be easily replaced daily on site. The maximum size of printing is 4 to 6 lines of total area 35X35 mm. Quality Pneumatic accessories ensure reliability, long life & speeds upto 150 impressions per minute. (Free accessories include ½ Lit. Ink, ½ Lit. Solvent, 2.5 mm Grooved Rubber Character Set & Ink Cartridge). This Coder is suitable for intermittent motion FFS / Packaging Machine eg. for Milk & Oil Packaging.

Specifications (8)

Supply Voltage	230 Vac ± 10%, 10 VA
Printing Area	4 to 6 lines (max. 35 X 35 mm)
Printing Speed	Max. 150 imprints / min.
Prints Using	Easily Changeable grooved / flat, rubber / nylon stereos
Inking Medium	Special rechargeable ink cartridge
Printing Medium	Quick drying liquid ink (Black, Red, White, Golden, etc.)
Impressions	15,000 per 20 ml. charge
Weight	6 Kgs, 2 Kgs (Only head)
