Form Fill Seal Machine
Powder and Granule Packing Machine Model FFS 1000PG 420mm
FFS-1000PG

Powder and Granule Packing Machine Model FFS 1000PG 420mm

₹199,000

Automatic roll-fed form-fill-seal packer for free-flowing powders and granules. Supplier describes weighing, PLC bag-length regulation and heating/cam features. Despite the 1000PG model name, the table states only 10–100 g per pack; the actual maximum must be confirmed.

Confirm configuration, availability and commercial terms with our team.

Specifications

DescriptionDETAILS
SealingCenter Seal (Optional 3 SIDE seal)
Pouch Size0-200 MM (W) and 0-200 MM (L) HEIGHT
RangeFor 10 to 100 grams
Output (Pouches/Min)10 to 18 ppm, depending upon product characteristics, fill weight, bulk density of the product, it’s flow properties. It also depends upon the kind, quality and thickness of laminate being used.
Packaging MaterialAny heat sealing films (laminates) 0.5mm to 0.8mm
DriveSINGLE PHASE MOTOR
Registration SystemOptional Photocell control using optical scanning head sensor & control unit to drive 1/8 HP forward reverse correction motors.
Contact PartsPRODUCT CONTACT PARTS SS 304 BODY WILL BE COVERED WITH SS 304 DRIVE ROLLER SHAFT MS EN8 SEALING JAW MS EN8
Accuracy+/- 2% Actual fill depend upon type of product and consistency in its flow characteristics.
Roll DiameterMaximum 14 inches.
Core Inner Diameter76 MM ID.
Net Wt.70 Kg. approximately.
MountingOn wheels.
Overall Dimensions430 mm(L) x 510(W) mm x 1400 mm(H)
Expanded specification view ↓

Product details

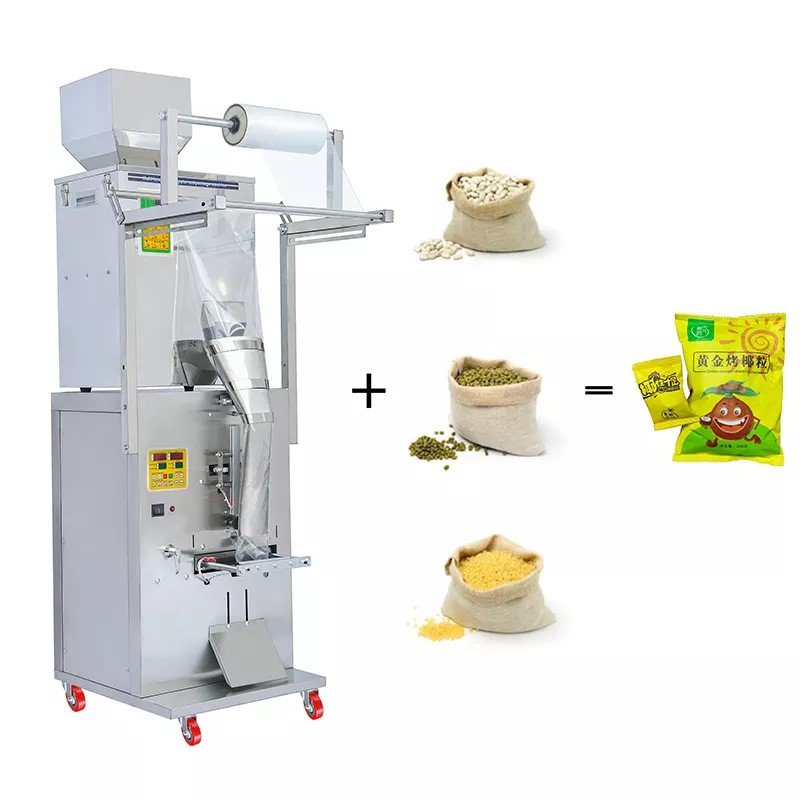

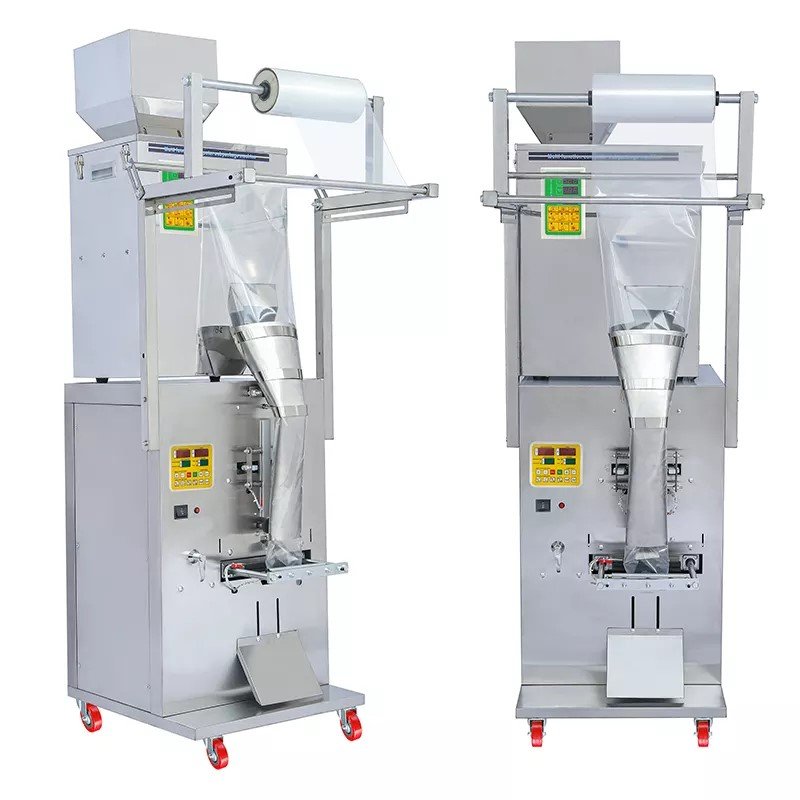

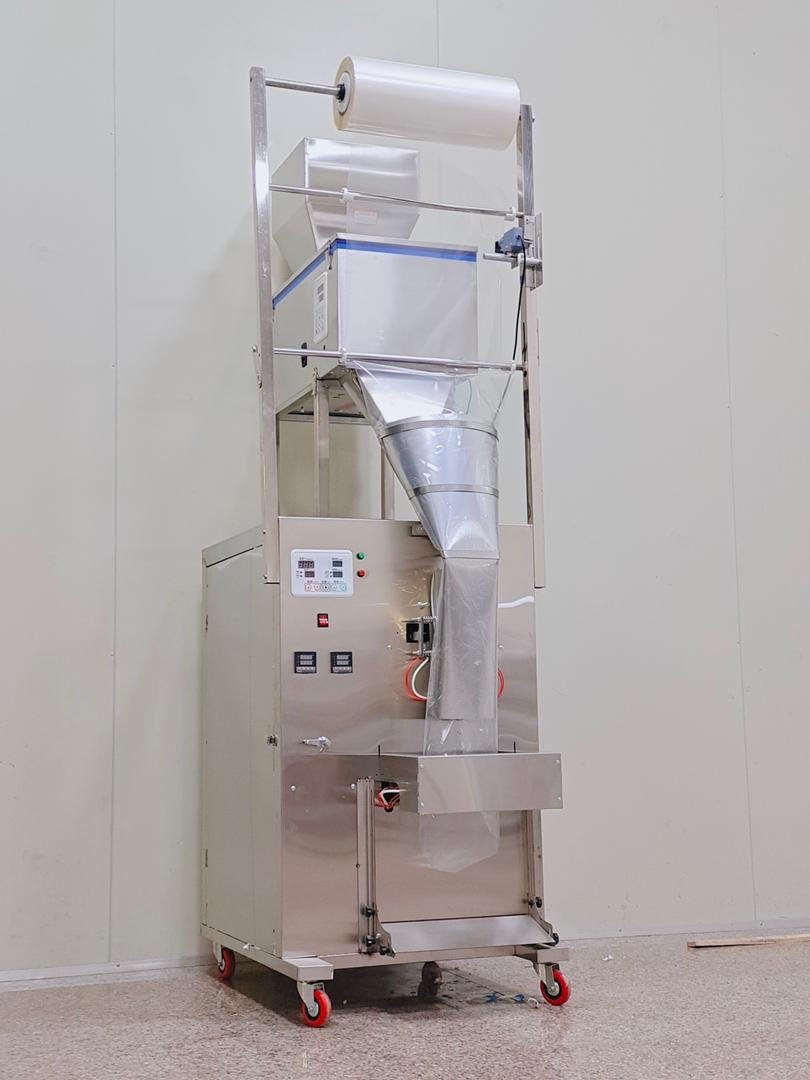

Automatic High Speed Powder Packing Machine Model FFS-1000PG (420mm) are ideal for packing of free flow powders and granules like tea, food, seeds, fruit, grain shape chemicals and pharmaceuticals, micro and small components such as general non-sticky solid materials, salt, sugar, pepper and spices. Machines that form the package, fill it with a wet or dry product, and seal it shut are known as Form-Fill-Seal machines. Flexible film is used in most FFS packing machine to create the primary kit, such as a bag or pouch. These machines ensure hygienic packing of the product along with the focus on keeping moisture away from the product for retaining the free flow texture of the same. Our machines are automatic and equipped with a high accuracy weighing scale. Advanced innovative technology is used in designing the machines to minimize film overlap to reduce film consumption thereby making them cost effective. These machines often feature intermediate perforation for consecutive pouches, as well as the ability to cut strips after a predetermined number of pouches using a digital auto–cut feature.

Features

Rapid modification of the bag specifications.

Modular heating, more precise temperature control.

Easy and convenient operation

The CAM design of the single shaft

Cost saving

Clean and no wastage

Leak-proof sealing

Energy efficient

High-functioning and improvised productivity

We provide Granule Filling Machines with PLC control bag length regulation. It can be used with heat-sealable compound materials, including single paper/PE, cellophane/PE, aluminium foil/PE, BOPP/PE, Nylon/PE, and so on.

Extra Chute / Former of any size

LD + Polyster Plain Transparent Roll of 75GSM (Per Kg)

Specifications (15)

DescriptionDETAILS
SealingCenter Seal (Optional 3 SIDE seal)
Pouch Size0-200 MM (W) and 0-200 MM (L) HEIGHT
RangeFor 10 to 100 grams
Output (Pouches/Min)10 to 18 ppm, depending upon product characteristics, fill weight, bulk density of the product, it’s flow properties. It also depends upon the kind, quality and thickness of laminate being used.
Packaging MaterialAny heat sealing films (laminates) 0.5mm to 0.8mm
DriveSINGLE PHASE MOTOR
Registration SystemOptional Photocell control using optical scanning head sensor & control unit to drive 1/8 HP forward reverse correction motors.
Contact PartsPRODUCT CONTACT PARTS SS 304 BODY WILL BE COVERED WITH SS 304 DRIVE ROLLER SHAFT MS EN8 SEALING JAW MS EN8
Accuracy+/- 2% Actual fill depend upon type of product and consistency in its flow characteristics.
Roll DiameterMaximum 14 inches.
Core Inner Diameter76 MM ID.
Net Wt.70 Kg. approximately.
MountingOn wheels.
Overall Dimensions430 mm(L) x 510(W) mm x 1400 mm(H)
