Thermal Transfer Overptrinters
Smart Thermal Transfer Overprinter Model TTO 24A E 24mm
TTO-24A-E

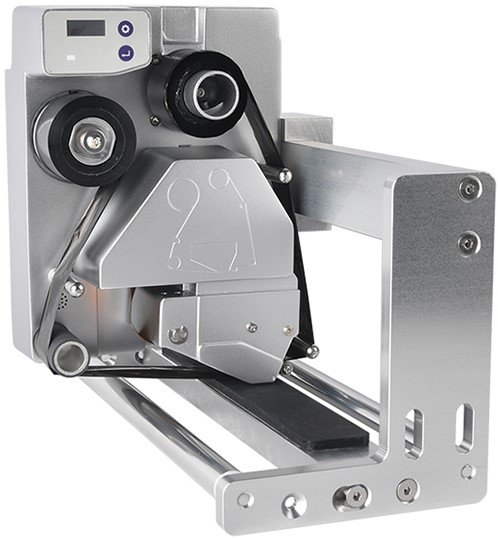

Smart Thermal Transfer Overprinter Model TTO 24A E 24mm

₹99,000

Phone-controlled ribbon thermal-transfer overprinter for flexible-packaging integration. Prints dates, batches, text, codes and graphics. Its stated 200 packets/min applies to fixed content with a 12 mm print length and specified film stop time.

Confirm configuration, availability and commercial terms with our team.

Specifications

Printing ModesIntermittent (Static) & Continuous* (Online*) Modes
Print Density203 dpi (8 dots/mm)
Print Speed20–200mm/sec
Print Area24mm×12mm
Maximum. Ribbon Length200m (Wax/Resin, Resin)
Ribbon Width24mm
Ribbon Saving FeaturesCan save up to 60% ribbon usage
Coding Direction0º to 180º
Applicable Capacity200 packets/min (print fixed content with 12 mm length)
Printing Time100ms (minimum stopping time of packaging film)
External InputSensor Input Signal: NPN/PNP (DC 12-24V), switch-type sensor
Operating Range5ºC ~ 40ºC, 10% - 90% RH, non-condensing.
IP ClassIP40
Dimensions (W×H×D)262mm × 191mm × 204mm
Weight7.8kg
Power Supply110 – 240 VAC, 50/60Hz, 4A
Expanded specification view ↓

Product details

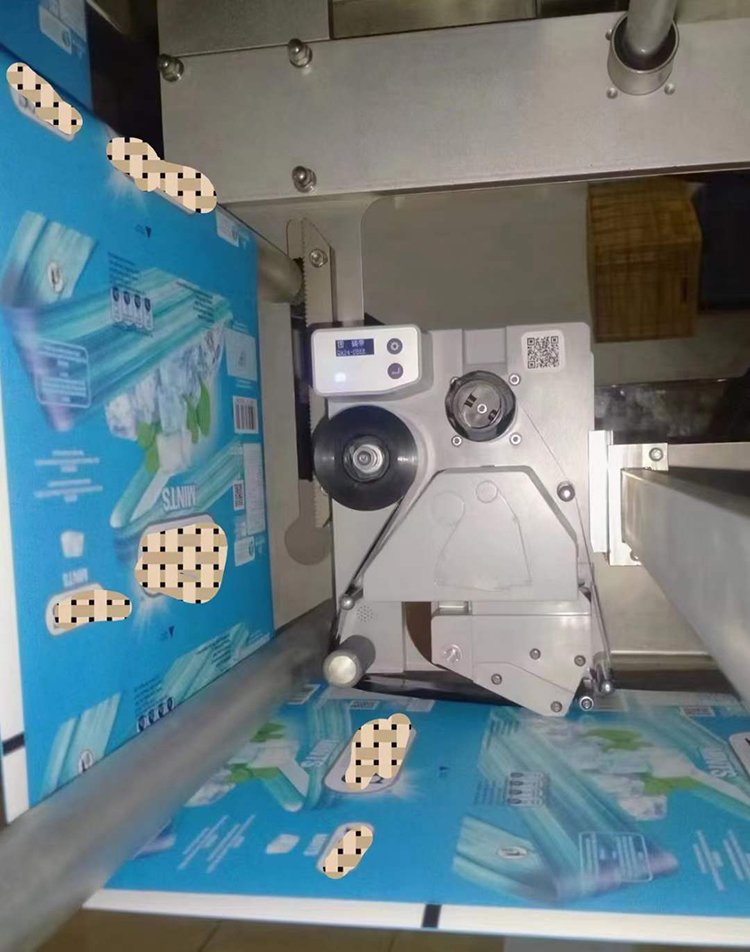

Industrial Advanced Smart Thermal Transfer Overprinter Model TTO-24A-E (24mm) is an enhanced smart product designed for the upgrade of traditional TTO. In addition to using it to print of Production Date, shelf life, series number, batch number, time, etc., you can also print any 1D code, 2D code, product traceability code, logo, graphics and other content as needed. It can integrate seamlessly into a range of flexible packaging machines & can print clear legible alpha numeric, logo, barcode as well as text on both intermittent and high-speed production lines.

Easy & quick installation, can directly replace the traditional Coding Machines.

Mobile Phone controls the Settings & Coding matter, so there is no need for cumbersome operations (such as typesetting), except the replacement of ribbon.

Stable printing quality without puncture of packaging material & smudged printing.

Intelligent control of ribbon operation maximizes ribbon use & not allows it to run empty.

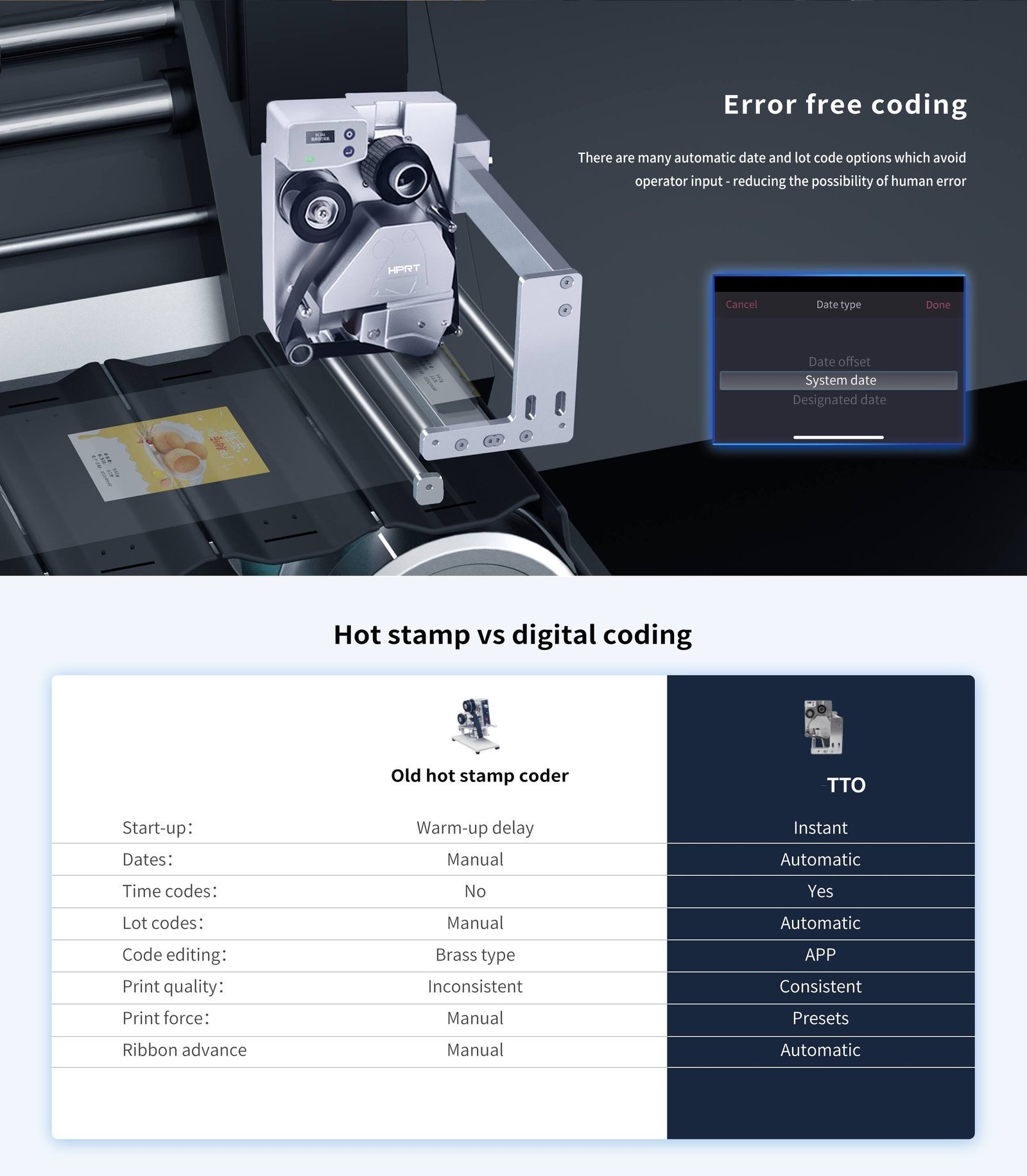

Coding Time and Batch Number can be updated automatically to avoid human errors, misprint and omissions.

Start immediately without heating with clear printing at Low print cost & high speeds.

Able to freely edit 1D code, 2D code, serial number, characters, numbers, punctuation, etc. in the printing area along with LOGOs. & Graphics.

Specifications (16)

Printing ModesIntermittent (Static) & Continuous* (Online*) Modes
Print Density203 dpi (8 dots/mm)
Print Speed20–200mm/sec
Print Area24mm×12mm
Maximum. Ribbon Length200m (Wax/Resin, Resin)
Ribbon Width24mm
Ribbon Saving FeaturesCan save up to 60% ribbon usage
Coding Direction0º to 180º
Applicable Capacity200 packets/min (print fixed content with 12 mm length)
Printing Time100ms (minimum stopping time of packaging film)
External InputSensor Input Signal: NPN/PNP (DC 12-24V), switch-type sensor
Operating Range5ºC ~ 40ºC, 10% - 90% RH, non-condensing.
IP ClassIP40
Dimensions (W×H×D)262mm × 191mm × 204mm
Weight7.8kg
Power Supply110 – 240 VAC, 50/60Hz, 4A
