IJP-X2

Table Top Ink Jet Printer Model IJP X2 12.7 mm

Name: Table Top Ink Jet Printer Model IJP X2 12.7 mm
SKU: KFT-IJP-X2
Price: 59000 INR

₹59,000

Tabletop operator-fed printer for individual small objects, with a product support shelf and pedal/sensor triggering. The head can move in or out by 3 mm; bottle neck, side and bottom coding are listed applications.

Confirm configuration, availability and commercial terms with our team.

Specifications

Coder Model	Ink Jet Printer IJP – X2
Display	5” full color LCD Touch Screen with LED backlight.
Languages	Chinese, Traditional Chinese, English, Korean, etc.
Input Device	800 x 480 Touch Screen LCD, Pen Drive.
Printable Images	Alphanumeric, Logo, Date/Time, Counter, Barcode, etc. UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA128, PDF417, DATAMATRIX, QR
Printing Area	1 to 6 lines from 1.2 to 12.7 mm high x 60 mm width max.
Printing Direction	Adjustable at any angle within 360 degree
Message Capacity	Store upto 1,000 messages with Message Name.
Printing Speed	Max. 40 pieces/min for 1 to 6 line printing at 300-600 dpi
Prints Using	Hewlett-Packard (hp) TIJ 2.5 Print-head for spraying ink
Print Distance	Max. 6 mm from substrate down or in front.
Inking Medium	42 cc disposable pre-mix ink in Cartridge form with head.
Printing Medium	Solvent/Oil based inks (black, white, red, blue, yellow, etc.)
Ink Drying Time	Min. 5 seconds on plastics & laminates.
Impressions	Appx. 15 Lakh d/m characters of 2 mm per cartridge of ink.
Operating Range	10 ~ +38ºC, 10% - 80% RH, non-condensing.
Supply Voltage	90 - 240 Vac, 50/60 Hz, 5 W
Dimensions	L180 x W144 x D155 mm
Weight	3 Kg including cartridge.

Expanded specification view ↓

Product details

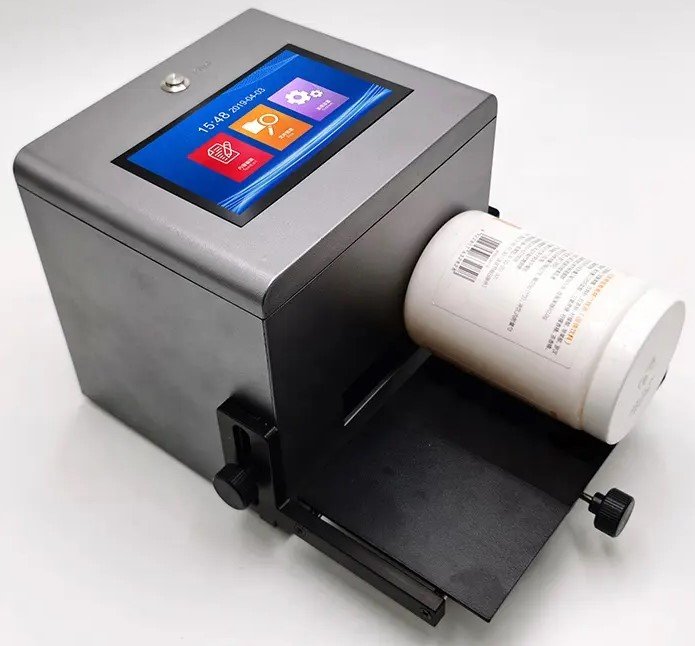

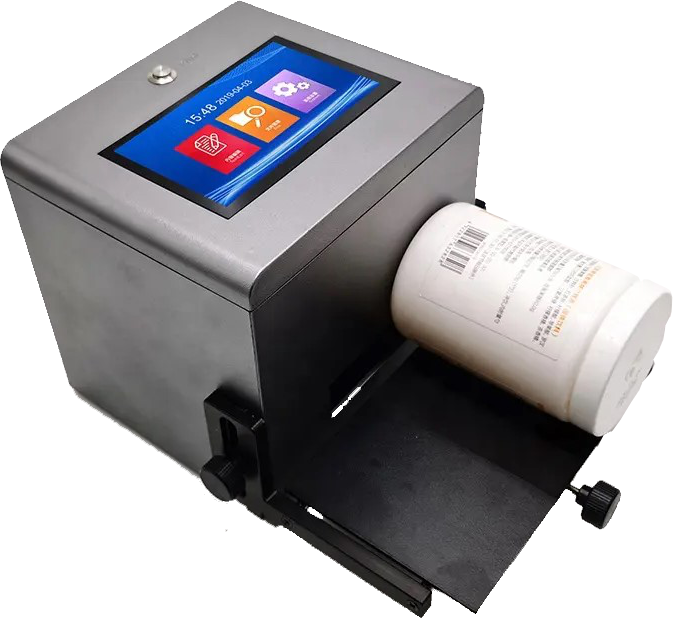

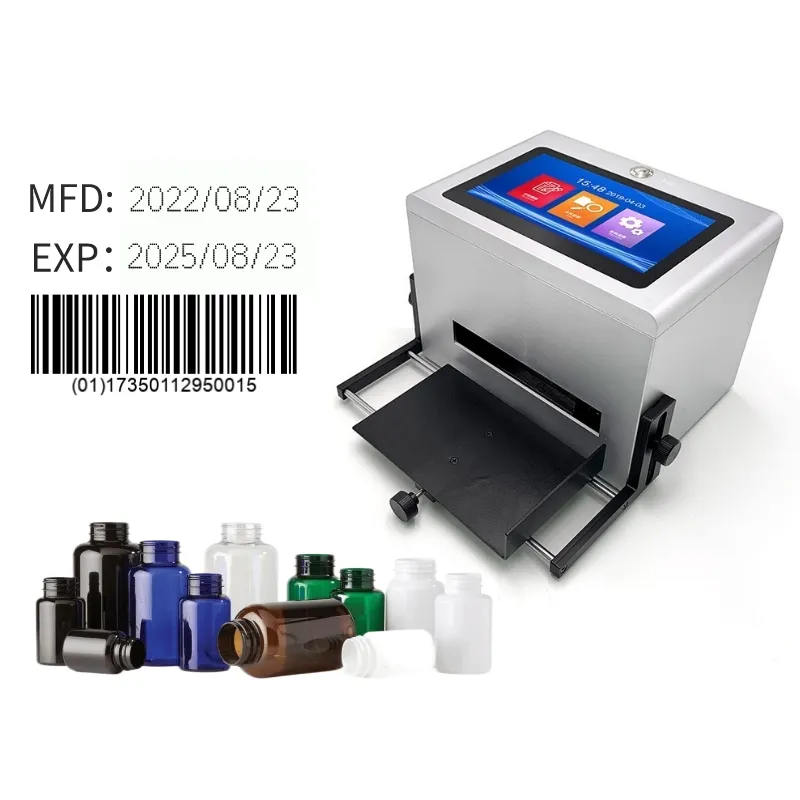

Standalone Touch Screen Table Top Non-Contact Ink Jet Printer Model IJP – X2 (12.7 mm), which is a Zero Maintenance, 300-600 dpi high resolution, SIX line (character height 1.2 to 12.7 mm) Printer & can be used on Porous / Non-Porous products to print B.No., Exp.Date, Time, Serial No. (AGMARK), Logos, Scannable Bar Codes, etc. on labels, cartons, pouches, containers, etc. Data to be printed can easily be composed on its 5 inch touchscreen. It is table top type(print one by one by hand), suitable for small objects of variety of shapes, offers products shelf to hold the products, select pedal or sensor to trigger print, printing head can be adjust in or out by 3 mm and can print on the bottle neck, bottle side or bottom of bottle.

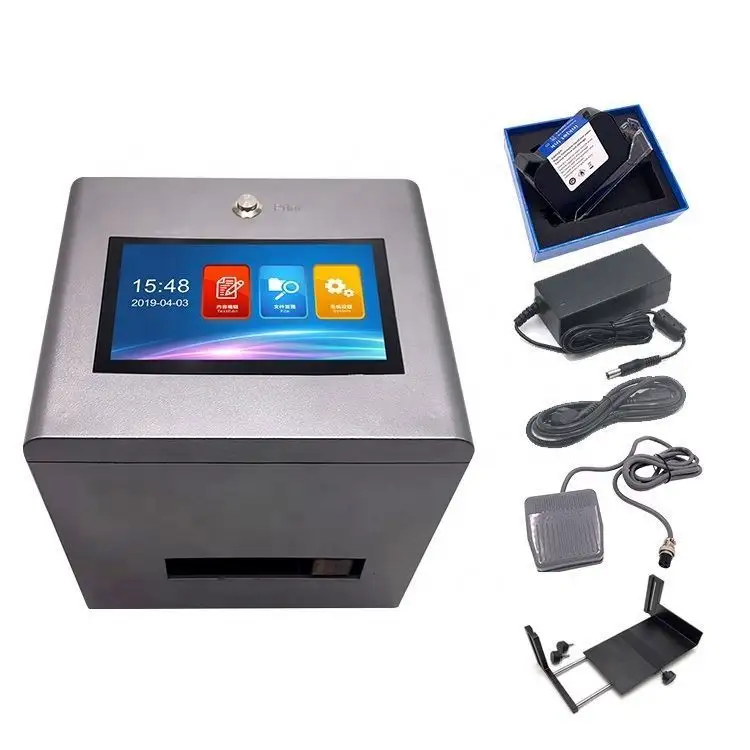

The system is inclusive of below mentioned accessories worth Rs. 15,000/- free of cost:

a. Foot Switch or External Sensor (optional).

b. 1 No. disposable Pre-mix Black ink cartridge, Cartridge cleaning Wipe.

d. Product Bracket, Operation & Maintenance Manual, Instruction Video.

This printer is fully Electronic without CORE system &does not have any air pump, viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the disposable ink cartridges making it very user friendly for the Operator. The running / Printing cost is only about 6 Paise per impression (25 char).

Specifications (19)

Coder Model	Ink Jet Printer IJP – X2
Display	5” full color LCD Touch Screen with LED backlight.
Languages	Chinese, Traditional Chinese, English, Korean, etc.
Input Device	800 x 480 Touch Screen LCD, Pen Drive.
Printable Images	Alphanumeric, Logo, Date/Time, Counter, Barcode, etc. UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA128, PDF417, DATAMATRIX, QR
Printing Area	1 to 6 lines from 1.2 to 12.7 mm high x 60 mm width max.
Printing Direction	Adjustable at any angle within 360 degree
Message Capacity	Store upto 1,000 messages with Message Name.
Printing Speed	Max. 40 pieces/min for 1 to 6 line printing at 300-600 dpi
Prints Using	Hewlett-Packard (hp) TIJ 2.5 Print-head for spraying ink
Print Distance	Max. 6 mm from substrate down or in front.
Inking Medium	42 cc disposable pre-mix ink in Cartridge form with head.
Printing Medium	Solvent/Oil based inks (black, white, red, blue, yellow, etc.)
Ink Drying Time	Min. 5 seconds on plastics & laminates.
Impressions	Appx. 15 Lakh d/m characters of 2 mm per cartridge of ink.
Operating Range	10 ~ +38ºC, 10% - 80% RH, non-condensing.
Supply Voltage	90 - 240 Vac, 50/60 Hz, 5 W
Dimensions	L180 x W144 x D155 mm
Weight	3 Kg including cartridge.
