PFM-1000P

Pneumatic Pickle Filling Machine Model PFM 1000P 1Kg

Name: Pneumatic Pickle Filling Machine Model PFM 1000P 1Kg
SKU: KFT-PFM-1000P
Price: 119000 INR

₹119,000

Semi-automatic single-head pneumatic machine named for pickle filling, with adjustable piston dosing, five-way flow control, magnetic reed sensing and drip-resistant cutoff. Narrative lists generic paste examples; no pickle chunk-size, solids-ratio or chunk-damage data is supplied.

Confirm configuration, availability and commercial terms with our team.

Specifications

Filling Range	100gm – 1000 gm ± 1 %
Can Fill	Tubes, Bottles , Pouches
Output	10 - 18 Fills/min
Hopper Capacity	90 Kg
Gas Pressure	0.4 – 0.6 Mpa
Power	220 VAc – 50 Hz / 20 W
Dimensions / Approx. Weight	100 x 50 x 105 cm (L x W x H) / 40kgs

Expanded specification view ↓

Product details

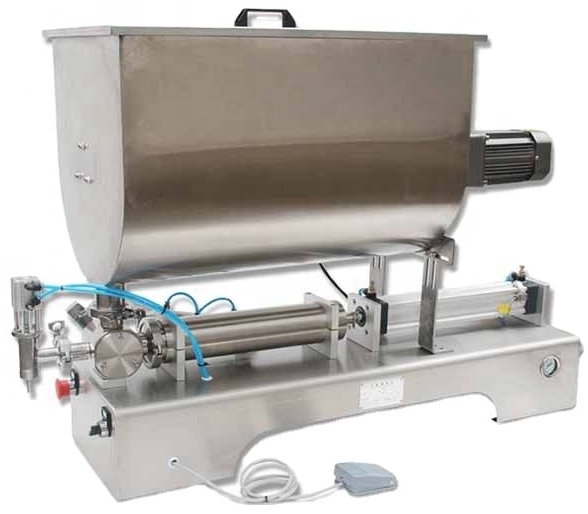

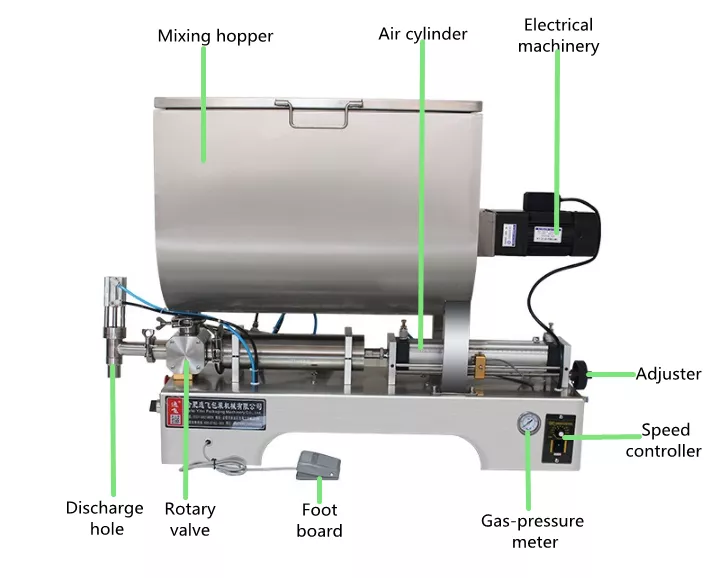

Semi-Automatic Single Head Pneumatic Pickle Filling Machine Model PFM-1000P (1Kg) is perfect for handling products with different viscosities with contact parts made of SS 304 / 316. Driven by a cylinder and piston with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder stroke to regulated filling volume. It possesses clean cut-off for drip free filling, positive displacement type suction as well as delivery stroke. The piston is a specially designed one, which does suction and filling in one stroke. It has quantity adjustment screw for setting the desired volume. Suitable for cream, Mango pulp, Paint, Paste, Chywanprash, Gulkand, Kiwam, Adhesive, Grease, etc.

Specifications (7)

Filling Range	100gm – 1000 gm ± 1 %
Can Fill	Tubes, Bottles , Pouches
Output	10 - 18 Fills/min
Hopper Capacity	90 Kg
Gas Pressure	0.4 – 0.6 Mpa
Power	220 VAc – 50 Hz / 20 W
Dimensions / Approx. Weight	100 x 50 x 105 cm (L x W x H) / 40kgs
