CSM-22-XN

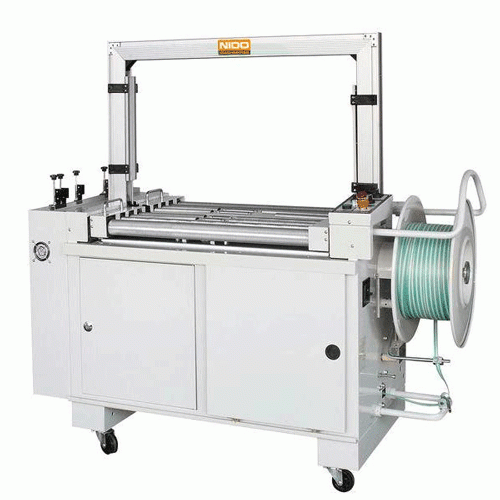

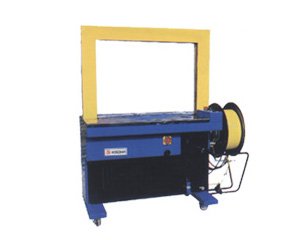

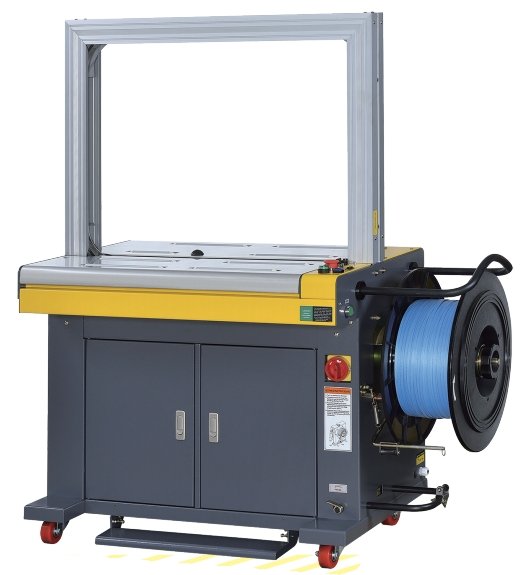

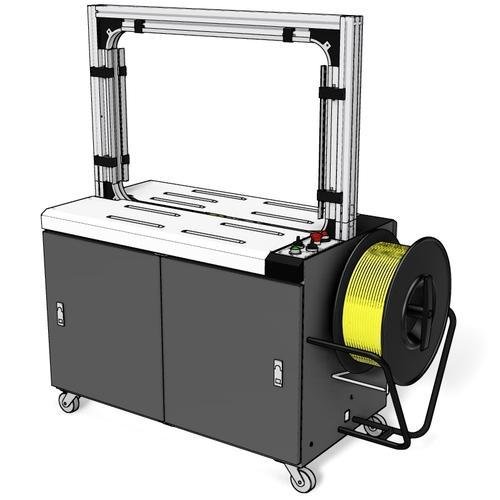

Fully Automatic Carton Strapping Machine Model CSM 22 XN

Name: Fully Automatic Carton Strapping Machine Model CSM 22 XN
SKU: KFT-CSM-22-XN
Price: 149000 INR

₹149,000

Automatic carton strapper with an aluminium arch and adjustable tension, tightening, heat-welding and cutting. Supplier identifies polyethylene band and a two-second strap cycle. Arch size alone does not establish usable carton envelope or automatically conveyed line throughput.

Confirm configuration, availability and commercial terms with our team.

Specifications

Aluminium Arch Size (mm)	600 (W) x 500 (H)
Strapping Tension	5 – 90 Kg
Strapping Speed	2 sec/strap
Strap Width	9 – 12 mm
Power Supply	440/380 VAc, 3 Ph
Consumption	0.85 KVA
Machine Size	141 x 60 x 154 cm
Machine Weight	250 Kg

Expanded specification view ↓

Product details

Fully Automatic Carton Strapping Machine Model CSM-22-XN is suitable for automatically strapping cartons, packages, wood boxes, etc. of various heights very quickly without the need for bothersome strapping tools & metal seals using polyethylene plastic band which tightens, heat-seals & gets cut automatically. Tension can be easily adjusted by a simple knurled nut. This sealer is suitable for strapping of Corrugated Cartons, boxes, etc.

Specifications (8)

Aluminium Arch Size (mm)	600 (W) x 500 (H)
Strapping Tension	5 – 90 Kg
Strapping Speed	2 sec/strap
Strap Width	9 – 12 mm
Power Supply	440/380 VAc, 3 Ph
Consumption	0.85 KVA
Machine Size	141 x 60 x 154 cm
Machine Weight	250 Kg
