SWS-5038B
Expanded specification view ↓

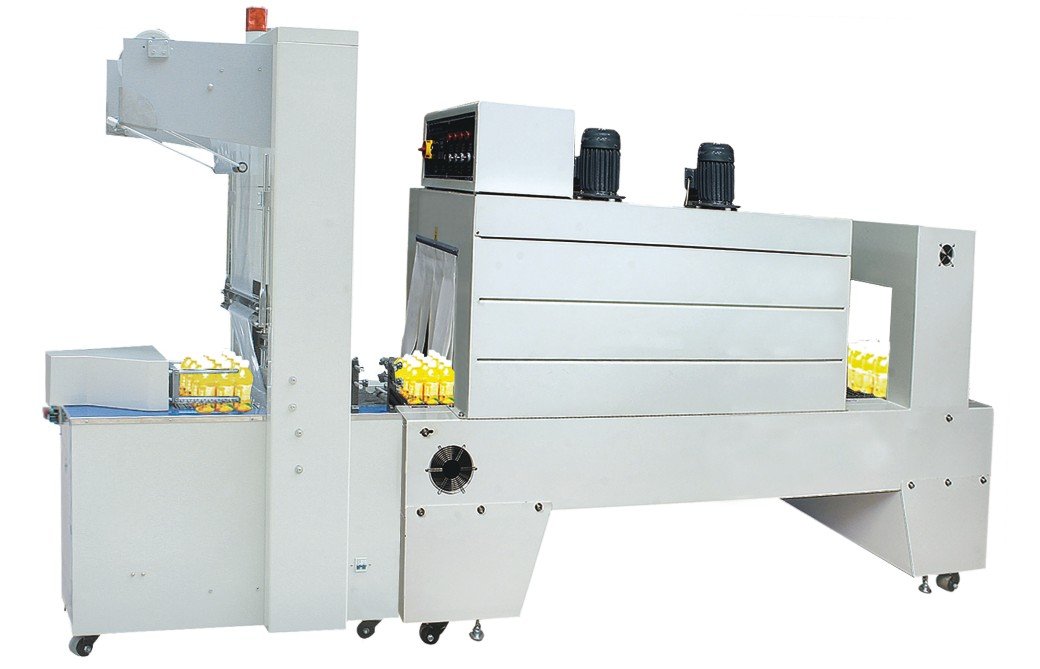

Semi Auto Shrink Packager Web Sealer Model SWS 5038B
₹249,000
Semi-automatic web/sleeve shrink packager for bottle, jar and can bundles with or without a tray. Supplier describes magnetic up/down switches, stepless conveyor feed and heating fans. Four-column table contains separate BZJ-5038 pneumatic sealer and BSE-5038M tunnel specifications; displayed bundle scope is unstated.
Confirm configuration, availability and commercial terms with our team.
Specifications
| Power Supply — Bzj-5038 (Pneumatic) | 220-240V, 50 Hz;1.8KW |
|---|---|
| Power Supply — Bse-5038M | 3phase 380V 50 Hz |
| Capacity — Bzj-5038 (Pneumatic) | 2-5pcs/minute |
| Heater Power — Bse-5038M | 25KW Adjuster |
| Sealing Time/Shrink Time — Bzj-5038 (Pneumatic) | 0.5-1.5s, 0-0.6s |
| Conveyer Speed — Bse-5038M | 0-10m/minute |
| Conveyor Loading — Bzj-5038 (Pneumatic) | 30kg |
| Tunnel Size(L*W*H) — Bse-5038M | 1200*500*380mm |
| Film Width — Bzj-5038 (Pneumatic) | Max. 500mm |
| Conveyer Loading — Bse-5038M | 25Kkg MAX. |
| Film Thickness — Bzj-5038 (Pneumatic) | 0.04-0.12mm |
| Shrink Film — Bse-5038M | PE,POF,PVC,PP |
| Maximum. Packing Dimension — Bzj-5038 (Pneumatic) | 450L x 270Wx350H mm |
| Machine Weight — Bse-5038M | 250KG |
| Minimum. Packing Dimension — Bzj-5038 (Pneumatic) | 250L x 60W x 60H mm |
| Machine Size — Bse-5038M | 2200*780*1470mm |
