Form Fill Seal Machine
Paste Packing Machine with stirrer Model FFS 100PL 160 mm
FFS-100PL

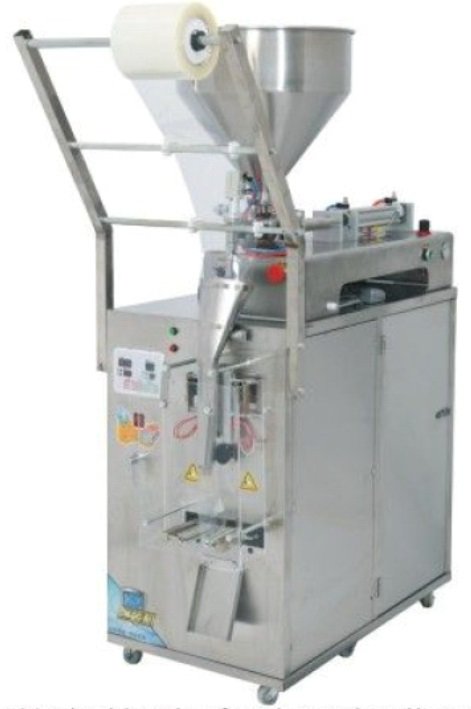

Paste Packing Machine with stirrer Model FFS 100PL 160 mm

₹199,000

Automatic paste/gel form-fill-seal packer described with a stirrer. Table gives a 3–100 g base range and optional 5–250 g configuration. Stirring and product dosing must be confirmed for the actual recipe; chunky products are not established by this page.

Confirm configuration, availability and commercial terms with our team.

Specifications

DescriptionDETAILS
SealingCenter Seal (Optional 3 SIDE seal)
Pouch Size0-125 MM (W) and 0-150 MM (L) HEIGHT
RangeFor 3 to 100 grams (Optional 5 to 250 grams)
Output (pouches/min)28 to 35 ppm, depending upon product characteristics, fill weight, bulk density of the product, it’s flow properties. It also depends upon the kind, quality and thickness of laminate being used.
Packaging MaterialAny heat sealing films (laminates) 0.5mm to 0.8mm
DriveSINGLE PHASE MOTOR
Registration SystemOptional Photocell control using optical scanning head sensor & control unit to drive 1/8 HP forward reverse correction motors.
Contact PartsPRODUCT CONTACT PARTS SS 304 BODY WILL BE COVERED WITH SS 304 DRIVE ROLLER SHAFT MS EN8 SEALING JAW MS EN8
Accuracy+/- 5% Actual fill depend upon type of product and consistency in its flow characteristics.
Roll DiameterMaximum 14 inches.
Core Inner Diameter76 MM ID.
Net Wt.90 Kg. approximately.
MountingOn wheels.
Overall Dimensions940 mm(L) x 570(W) mm x 1610 mm(H)
Expanded specification view ↓

Product details

Automatic High Speed Paste Packing Machine with stirrer Model FFS-100PL (160 mm) are ideal for packing of free flow liquids like chemicals and pharmaceuticals, paste, gel, etc. Machines that form the package, fill it with a wet or dry product, and seal it shut are known as Form-Fill-Seal machines. Flexible film is used in most FFS packing machine to create the primary kit, such as a bag or pouch. These machines ensure hygienic packing of the product along with the focus on keeping moisture away from the product for retaining the free flow texture of the same. Our machines are automatic and equipped with a high accuracy weighing scale. Advanced innovative technology is used in designing the machines to minimize film overlap to reduce film consumption thereby making them cost effective. These machines often feature intermediate perforation for consecutive pouches, as well as the ability to cut strips after a predetermined number of pouches using a digital auto–cut feature.

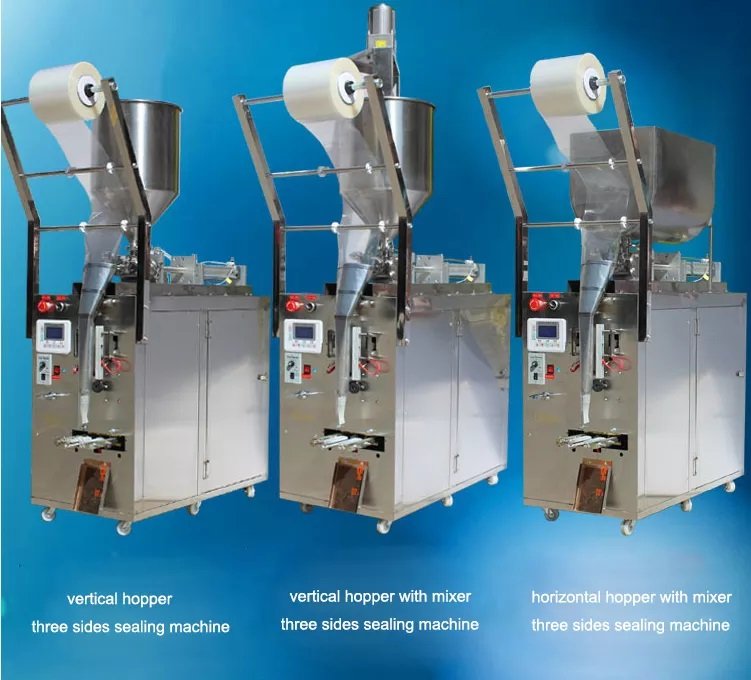

Same machine as above with STIRRER for constant stirring

Features

Rapid modification of the bag specifications.

Modular heating, more precise temperature control.

Easy and convenient operation

The CAM design of the single shaft

Cost saving

Clean and no wastage

Leak-proof sealing

Energy efficient

High-functioning and improvised productivity

We provide Paste Filling Machines with PLC control bag length regulation. It can be used with heat-sealable compound materials, including single paper/PE, cellophane/PE, aluminium foil/PE, BOPP/PE, Nylon/PE, and so on.

Specifications (15)

DescriptionDETAILS
SealingCenter Seal (Optional 3 SIDE seal)
Pouch Size0-125 MM (W) and 0-150 MM (L) HEIGHT
RangeFor 3 to 100 grams (Optional 5 to 250 grams)
Output (pouches/min)28 to 35 ppm, depending upon product characteristics, fill weight, bulk density of the product, it’s flow properties. It also depends upon the kind, quality and thickness of laminate being used.
Packaging MaterialAny heat sealing films (laminates) 0.5mm to 0.8mm
DriveSINGLE PHASE MOTOR
Registration SystemOptional Photocell control using optical scanning head sensor & control unit to drive 1/8 HP forward reverse correction motors.
Contact PartsPRODUCT CONTACT PARTS SS 304 BODY WILL BE COVERED WITH SS 304 DRIVE ROLLER SHAFT MS EN8 SEALING JAW MS EN8
Accuracy+/- 5% Actual fill depend upon type of product and consistency in its flow characteristics.
Roll DiameterMaximum 14 inches.
Core Inner Diameter76 MM ID.
Net Wt.90 Kg. approximately.
MountingOn wheels.
Overall Dimensions940 mm(L) x 570(W) mm x 1610 mm(H)
