Laser Printers
On Line 20W Smart Flying Fiber Laser Printer Model SLP F20 O
SLP-F20-O

On Line 20W Smart Flying Fiber Laser Printer Model SLP F20 O

₹489,000

Online/offline flying fibre-laser marker with dynamic workpiece tracking for moving-line marking. Supplier lists metals, foil packaging and selected plastics. Laser power depends on the selected family variant; actual production rate requires a mark-specific test.

Confirm configuration, availability and commercial terms with our team.

Specifications

ModelSLP-F20-O / SLP-F30-O / SLP-F50-O
Work Area (mm)110 × 110 (Optionally 200 × 200, 300 × 300)
Laser Power20 / 30 / 50 W
Laser Repetition Frequency20 KHz – 80 KHz
Wavelength1064 ± 10 nm
Beam Quality (M²)< 2
Minimum Line Width0.012 mm
Minimum Character0.15 mm
Marking Speed≤ 7000 mm/s (≤ 420 M/min)
Marking Depth≤ 0.5 / 0.7 mm
Repeat Precision± 0.002 mm
Positioning SystemDouble Red Light Focus
Laser LifetimeMore than 100000 hours without failure.
InputText, Graphics, Variable Bar Code, Serial No. (Meter Marking), Date, TXT file, RS232 (TCP/IP), etc.
Dimension (mm) / Weight524 mm × 550 mm × 1455 mm / 83 kg
Expanded specification view ↓

Product details

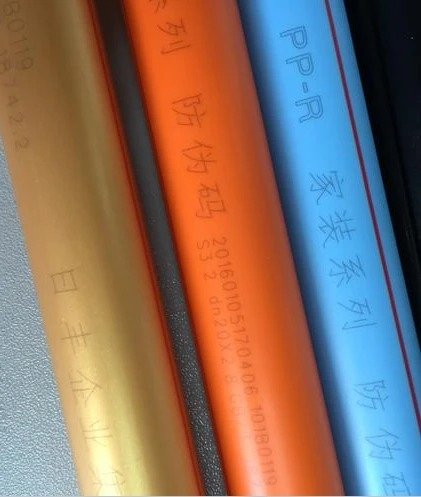

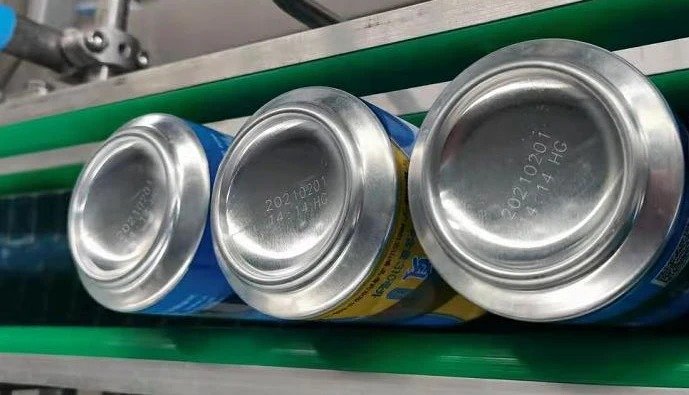

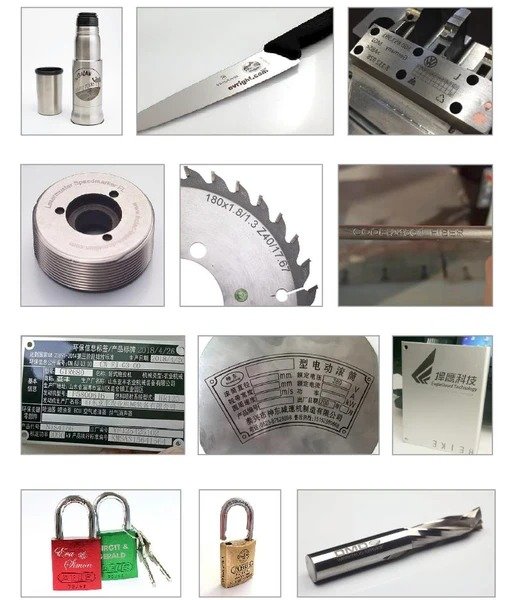

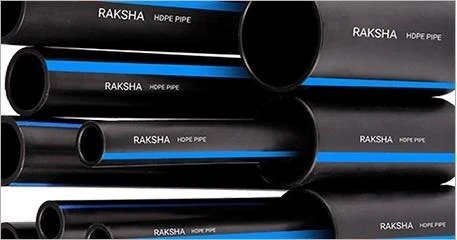

Industrial On-Line / Off-Line 20W Smart Flying Fiber Laser Printer Model SLP-F20-O is a long-term alternative to ink-jet printers. It has a dynamic control system which is equipped with software and hardware which tracks the fast-moving workpiece for marking on the production line without stopping. The system can be integrated with various types of production lines to carry out high-quality laser marking which is clear, effective and cannot be erased (for security). The machine can run continuously 24/7 and is maintenance-free for more than 1,00,000 hours, reducing production costs, using no consumables and improving production efficiency. A fiber laser is a laser where the active medium being used is an optical fiber that has been doped in rare elements. There is some dust and smoke when laser is printing, but not as much as CO2. High production speed requires higher laser power. Marking material can be Metal (copper, aluminum, iron, stainless steel, etc.), Aluminum foil pouches / film roll, HDPE / PVC products (pipes, cables, containers, etc.), ABS, etc.

Specifications (15)

ModelSLP-F20-O / SLP-F30-O / SLP-F50-O
Work Area (mm)110 × 110 (Optionally 200 × 200, 300 × 300)
Laser Power20 / 30 / 50 W
Laser Repetition Frequency20 KHz – 80 KHz
Wavelength1064 ± 10 nm
Beam Quality (M²)< 2
Minimum Line Width0.012 mm
Minimum Character0.15 mm
Marking Speed≤ 7000 mm/s (≤ 420 M/min)
Marking Depth≤ 0.5 / 0.7 mm
Repeat Precision± 0.002 mm
Positioning SystemDouble Red Light Focus
Laser LifetimeMore than 100000 hours without failure.
InputText, Graphics, Variable Bar Code, Serial No. (Meter Marking), Date, TXT file, RS232 (TCP/IP), etc.
Dimension (mm) / Weight524 mm × 550 mm × 1455 mm / 83 kg
