Double Head Pneumatic Paste Filling Machine Model PFM 1000D 1Kg

Name: Double Head Pneumatic Paste Filling Machine Model PFM 1000D 1Kg
SKU: KFT-PFM-1000D
Price: 89000 INR

₹89,000

Semi-automatic two-head pneumatic paste filler with adjustable cylinder stroke, five-way flow control, magnetic reed sensing and drip-resistant cutoff. Supplier lists creams, fruit pulp, pastes and industrial viscous products; quantified viscosity and particle limits are absent.

Confirm configuration, availability and commercial terms with our team.

Specifications

Filling Range	100gm – 1000 gm± 1 %
Can Fill	Tubes, Bottles , Pouches
Output	20 - 36 Bottles/min
Hopper Capacity	30 Kg
Gas Pressure	0.4 – 0.6 Mpa
Power	220 VAc – 50 Hz / 50 W
Dimensions / Approx. Weight	950 x 420 x 380 (L x W x H) / 60kgs

Expanded specification view ↓

Product details

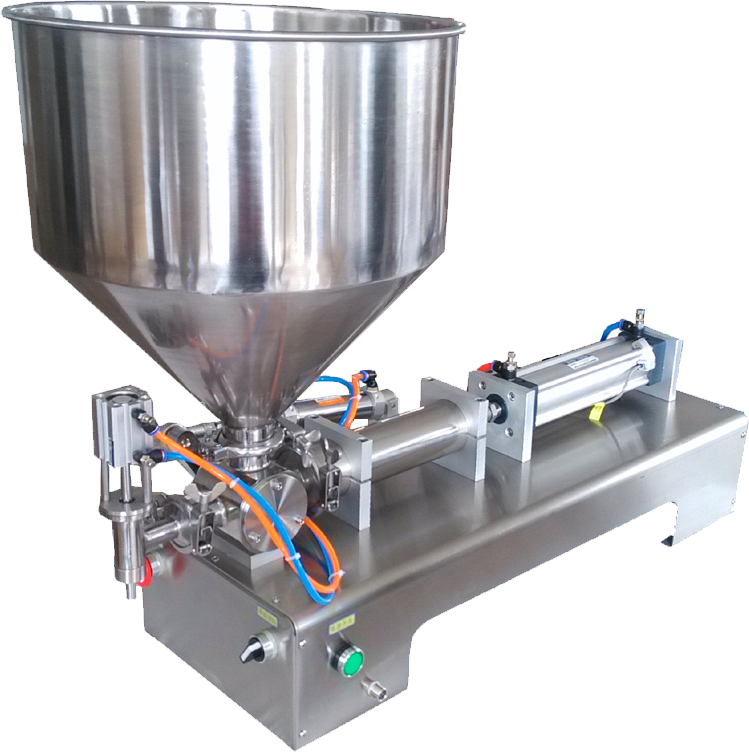

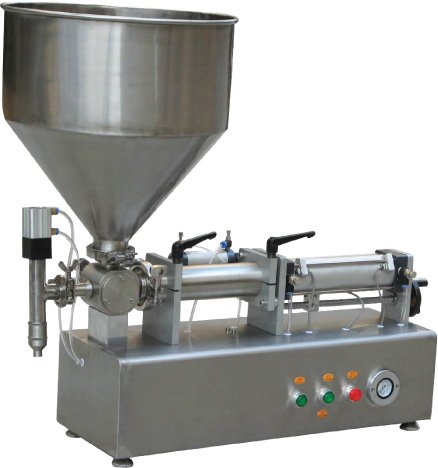

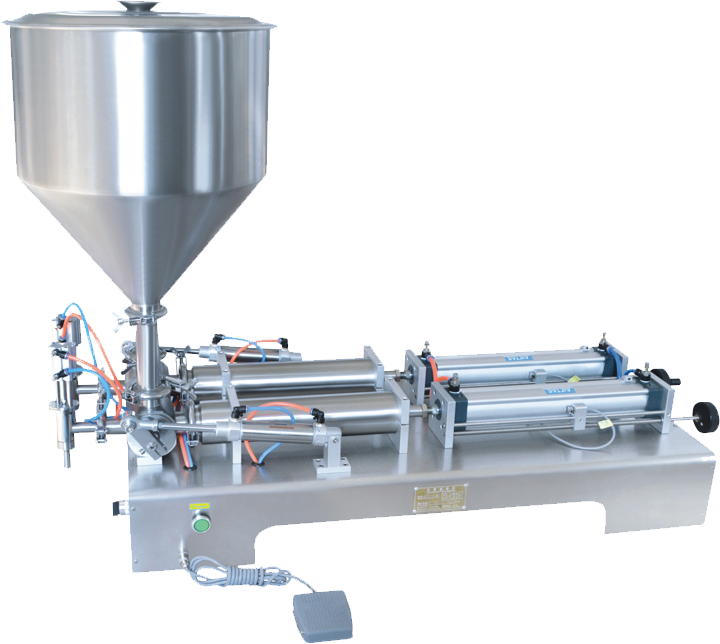

Semi-Automatic Double Head Pneumatic Paste Filling Machine Model PFM-1000D (1Kg) is perfect for handling products with different viscosities with contact parts made of SS 304 / 316. Driven by a cylinder and piston with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder stroke to regulated filling volume. It possesses clean cut-off for drip free filling, positive displacement type suction as well as delivery stroke. The piston is a specially designed one, which does suction and filling in one stroke. It has quantity adjustment screw for setting the desired volume. Suitable for cream, Mango pulp, Paint, Paste, Chywanprash, Gulkand, Kiwam, Adhesive, Grease, etc.

Specifications (7)

Filling Range	100gm – 1000 gm± 1 %
Can Fill	Tubes, Bottles , Pouches
Output	20 - 36 Bottles/min
Hopper Capacity	30 Kg
Gas Pressure	0.4 – 0.6 Mpa
Power	220 VAc – 50 Hz / 50 W
Dimensions / Approx. Weight	950 x 420 x 380 (L x W x H) / 60kgs
