AFM-100-4

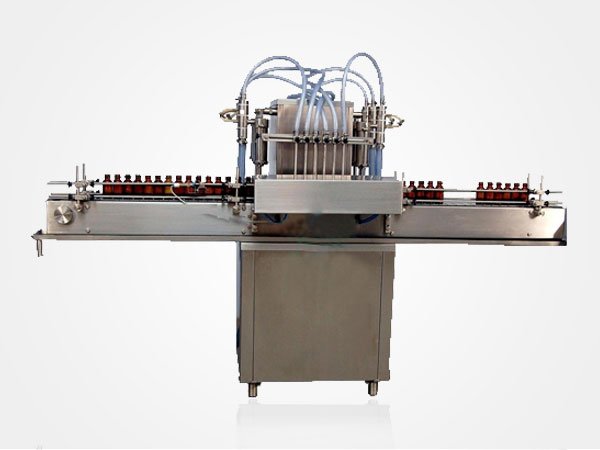

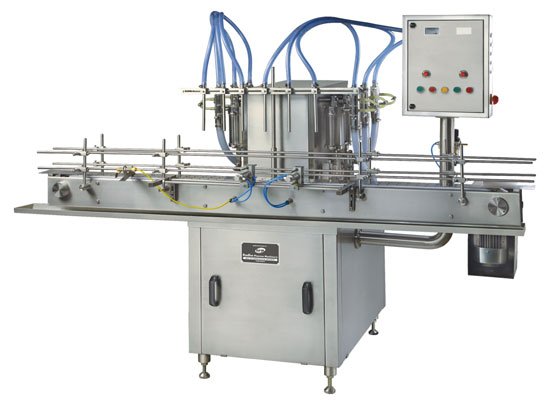

Automatic 4 Head Bottle Filling Machine Model AFM 100 4

Name: Automatic 4 Head Bottle Filling Machine Model AFM 100 4
SKU: KFT-AFM-100-4
Price: 299000 INR

₹299,000

Automatic four-head conveyor filler with adjustable syringe stroke, no-bottle/no-fill, diving arrangement for foaming liquids and drip-resistant nozzles. Supplier lists beverages, milk products, oils, syrups and other liquids; technical viscosity and particle limits are absent.

Confirm configuration, availability and commercial terms with our team.

Specifications

Filling Range	15 ml – 1000 ml ± 1 – 2 % (Std. 250 ml.)
Can Fill	Bottles 15 mm to 200 mm Diameter
Output	20 to 120 Bottles/min
Motor	2 HP Three Phase, 415 Volts.
Dimensions / Approx. Weight	2200mm x 200mm x 1600mm / 450 kgs

Expanded specification view ↓

Product details

Automatic 4 Head Bottle Filling Machine Model AFM-100-4 is suitable for filling Pharmaceuticals, Beverages, etc. such as juices, petroleum jelly, syrups, drinking water, paints, strainers, perfumes, flavored milk, dahi, adhesives, shampoo, edible oil, hair oil, lube oils, coolants etc. on a continuous conveyor line with no bottle no fill attachment. The speed depends on number of syringes & has diving arrangement for foaming products as well as specially designed nozzles for drip proof filling. All contact parts are made of SS (304/316). The stroke of the syringe is adjustable to adjust for the quantity to be dispensed. This is useful for filling of Beverages, Milk products, etc. in Bottles & Glasses.

Specifications (5)

Filling Range	15 ml – 1000 ml ± 1 – 2 % (Std. 250 ml.)
Can Fill	Bottles 15 mm to 200 mm Diameter
Output	20 to 120 Bottles/min
Motor	2 HP Three Phase, 415 Volts.
Dimensions / Approx. Weight	2200mm x 200mm x 1600mm / 450 kgs
