IJP-X3

Standalone Touch Screen Hand Held Auto Non Contact Ink Jet Printer Model IJP X3 12.7 MM

Name: Standalone Touch Screen Hand Held Auto Non Contact Ink Jet Printer Model IJP X3 12.7 MM
SKU: KFT-IJP-X3
Price: 59000 INR

₹59,000

Handheld operator-triggered printer for individual shaped objects, with product shelf, pedal/sensor trigger and 3 mm head adjustment. Touchscreen and USB editing; bottle neck, side and bottom coding are supplier examples.

Confirm configuration, availability and commercial terms with our team.

Specifications

Coder Model	Ink Jet Printer IJP – X3
Display	5” full color LCD Touch Screen with LED backlight.
Input Device	800 x 480 Touch Screen LCD, Pen Drive.
Printable Images	Alphanumeric, Logo, Date/Time, Counter, Barcode, etc. UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA128, PDF417, DATAMATRIX, QR
Printing Area	1 to 6 lines from 1.2 to 12.7 mm high x 60 mm width max.
Printing Direction	Adjustable at any angle within 360 degree
Message Capacity	Store upto 1,000 messages with Message Name.
Printing Speed	Max. 40 pieces/min for 1 to 6 line printing at 300-600 dpi
Prints Using	Hewlett-Packard (hp) TIJ 2.5 Print-head for spraying ink
Print Distance	Max. 6 mm from substrate down or in front.
Inking Medium	42 cc disposable pre-mix ink in Cartridge form with head.
Printing Medium	Solvent/Oil based inks (black, white, red, blue, yellow, etc.)
Ink Drying Time	Min. 5 seconds on plastics & laminates.
Impressions	Appx. 25 Lakh d/m characters of 2 mm per cartridge of ink.
Operating Range	10 ~ +38ºC, 10% - 80% RH, non-condensing.
Supply Voltage	90 - 240 Vac, 50/60 Hz, 5 W
Dimensions	L180 x W144 x D155 mm
Weight	2 Kg including cartridge.

Expanded specification view ↓

Product details

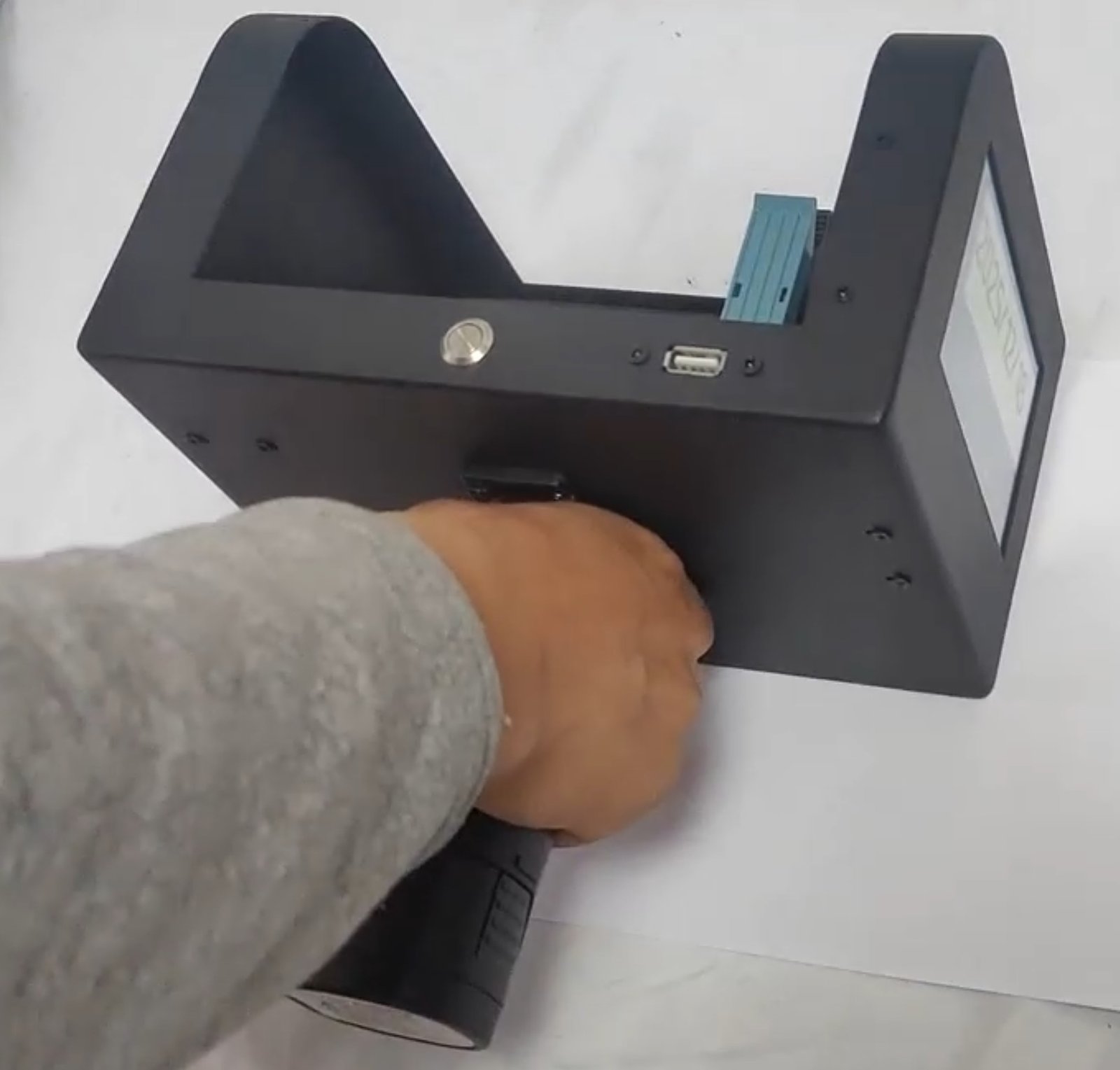

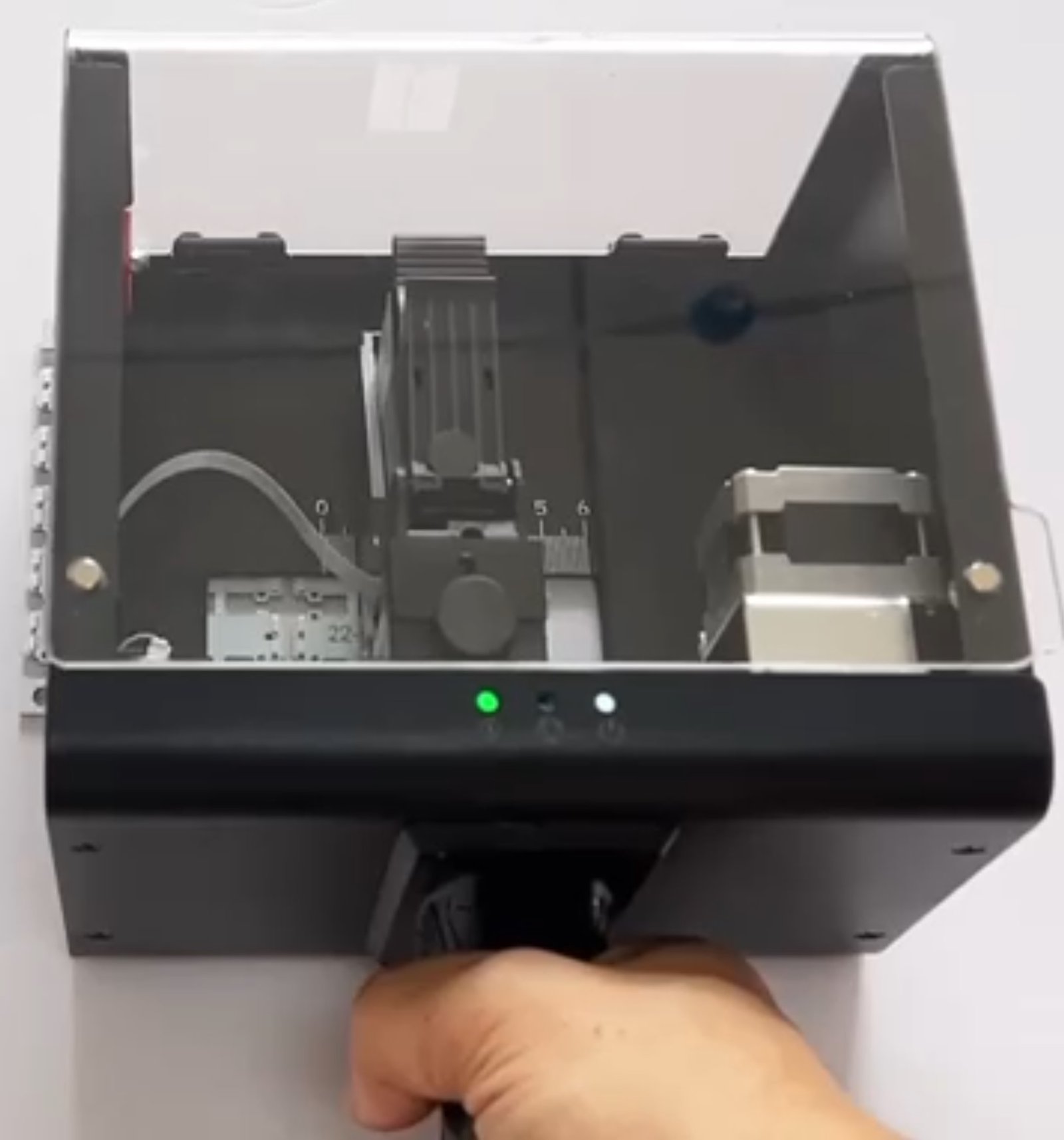

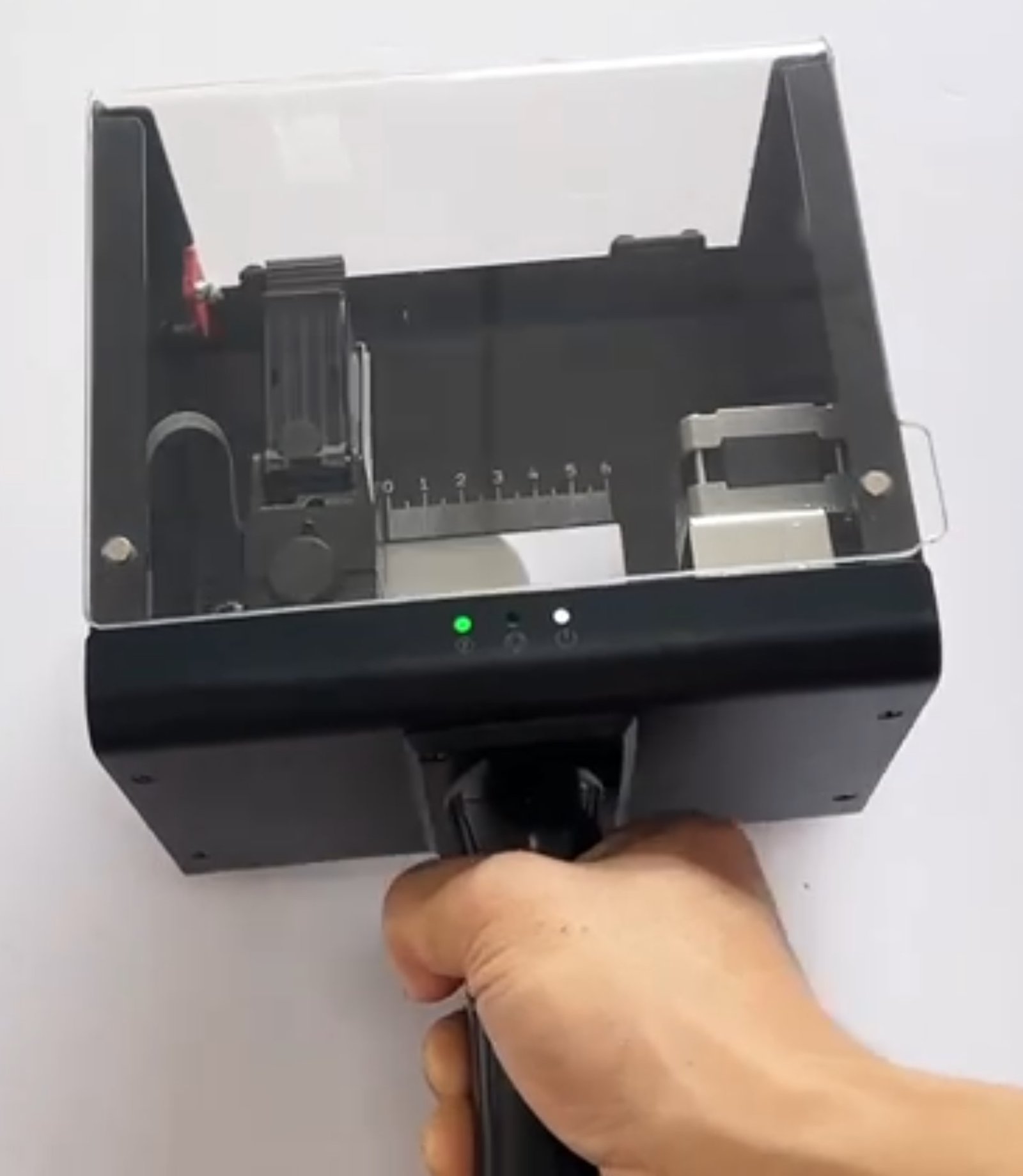

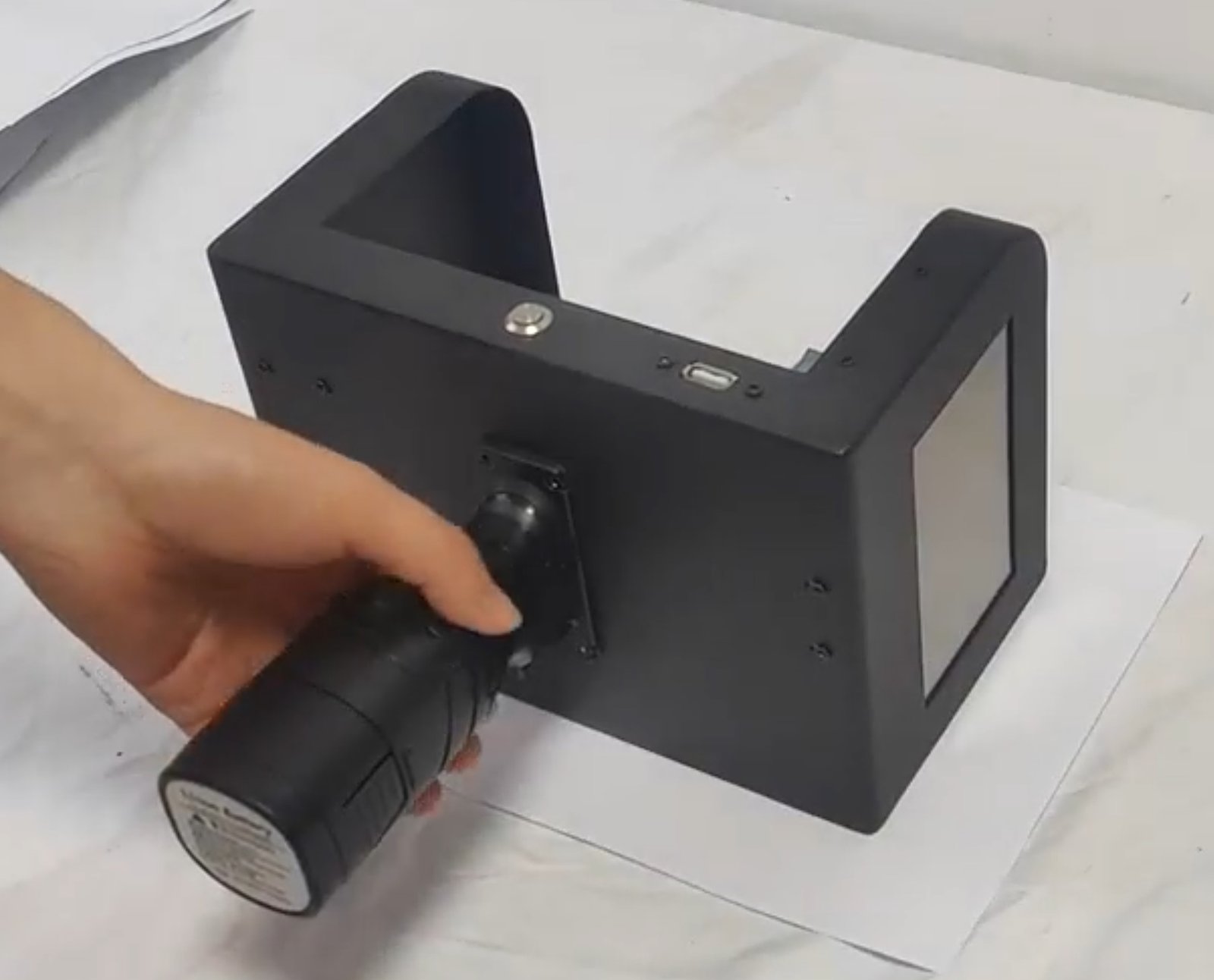

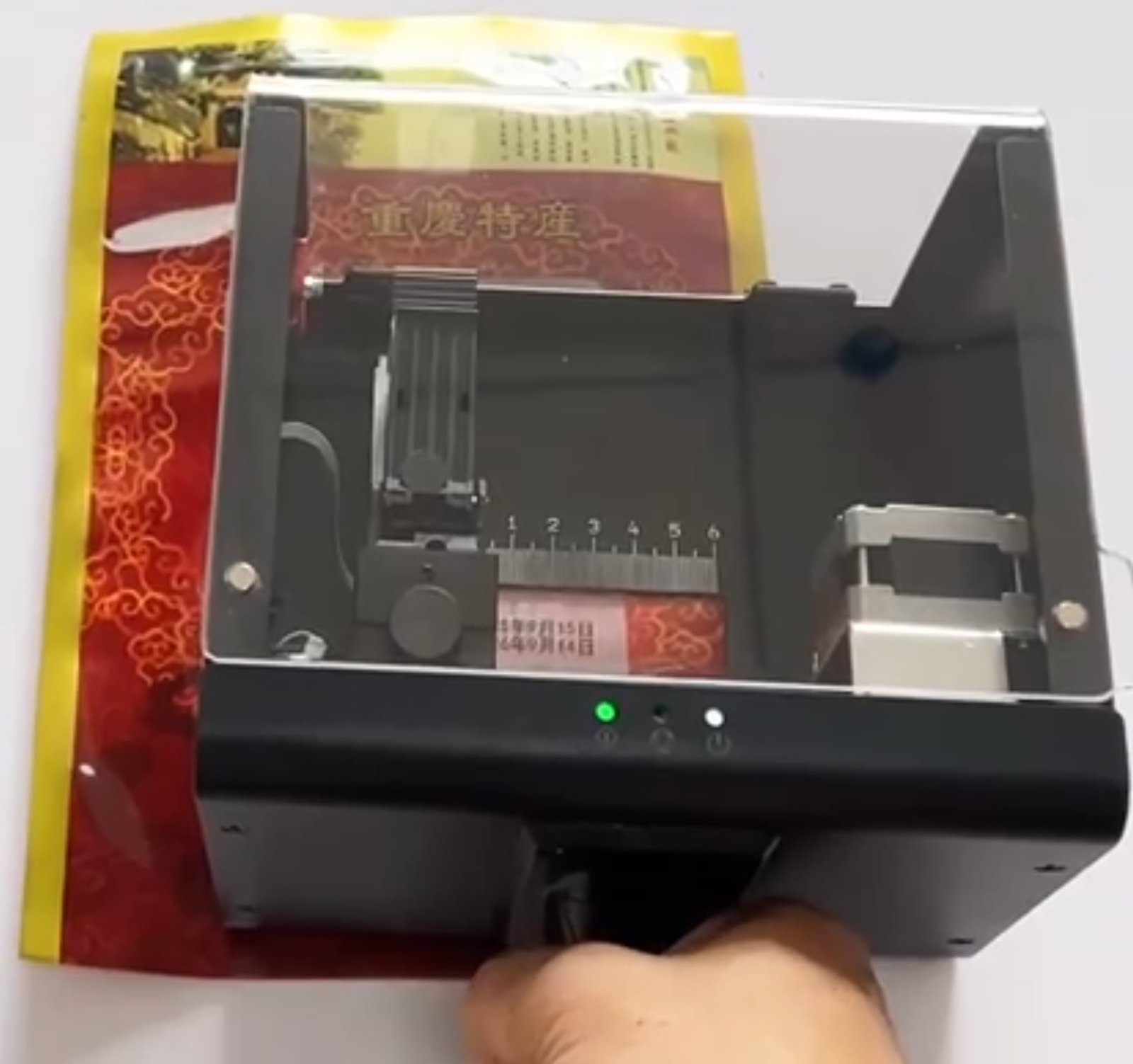

Standalone Touch Screen Hand Held Auto Non-Contact Ink Jet Printer Model IJP – X3 (12.7 mm), which is a Zero Maintenance, 300-600 dpi high resolution, SIX line (character height 1.2 to 12.7 mm) Printer & can be used on Porous / Non-Porous products to print B.No., Exp.Date, Time, Serial No. (AGMARK), Logos, Scannable Bar Codes, etc. on labels, cartons, pouches, containers, etc. Data to be printed can easily be composed on its 5 inch touchscreen. It is hand held type (print one by one by hand), suitable for small objects of variety of shapes, offers products shelf to hold the products, select pedal or sensor to trigger print, printing head can be adjusted in or out by 3 mm and can print on the bottle neck, bottle side or bottom of bottle.

Specifications (18)

Coder Model	Ink Jet Printer IJP – X3
Display	5” full color LCD Touch Screen with LED backlight.
Input Device	800 x 480 Touch Screen LCD, Pen Drive.
Printable Images	Alphanumeric, Logo, Date/Time, Counter, Barcode, etc. UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA128, PDF417, DATAMATRIX, QR
Printing Area	1 to 6 lines from 1.2 to 12.7 mm high x 60 mm width max.
Printing Direction	Adjustable at any angle within 360 degree
Message Capacity	Store upto 1,000 messages with Message Name.
Printing Speed	Max. 40 pieces/min for 1 to 6 line printing at 300-600 dpi
Prints Using	Hewlett-Packard (hp) TIJ 2.5 Print-head for spraying ink
Print Distance	Max. 6 mm from substrate down or in front.
Inking Medium	42 cc disposable pre-mix ink in Cartridge form with head.
Printing Medium	Solvent/Oil based inks (black, white, red, blue, yellow, etc.)
Ink Drying Time	Min. 5 seconds on plastics & laminates.
Impressions	Appx. 25 Lakh d/m characters of 2 mm per cartridge of ink.
Operating Range	10 ~ +38ºC, 10% - 80% RH, non-condensing.
Supply Voltage	90 - 240 Vac, 50/60 Hz, 5 W
Dimensions	L180 x W144 x D155 mm
Weight	2 Kg including cartridge.

Standalone Touch Screen Hand Held Auto Non Contact Ink Jet Printer Model IJP X3 12.7 MM

Specifications

Product details

Specifications (18)
