IJP-M3S-O

Model IJP M3S O 12.7 mm

Name: Model IJP M3S O 12.7 mm
SKU: KFT-IJP-M3S-O
Price: 49000 INR

₹49,000

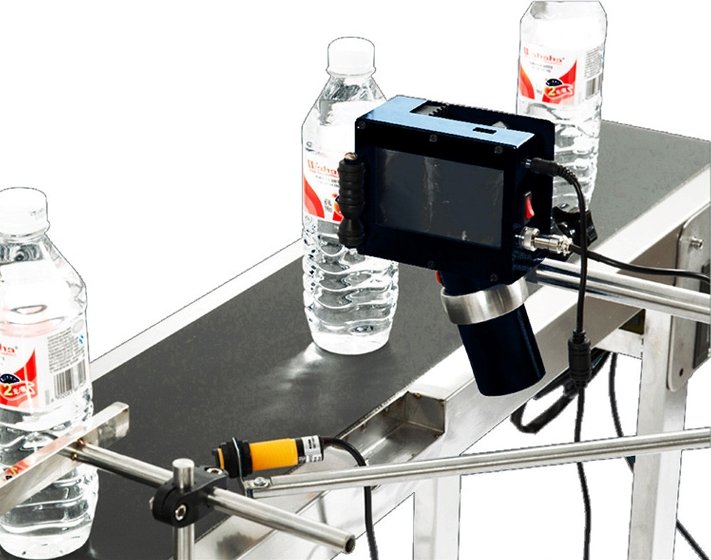

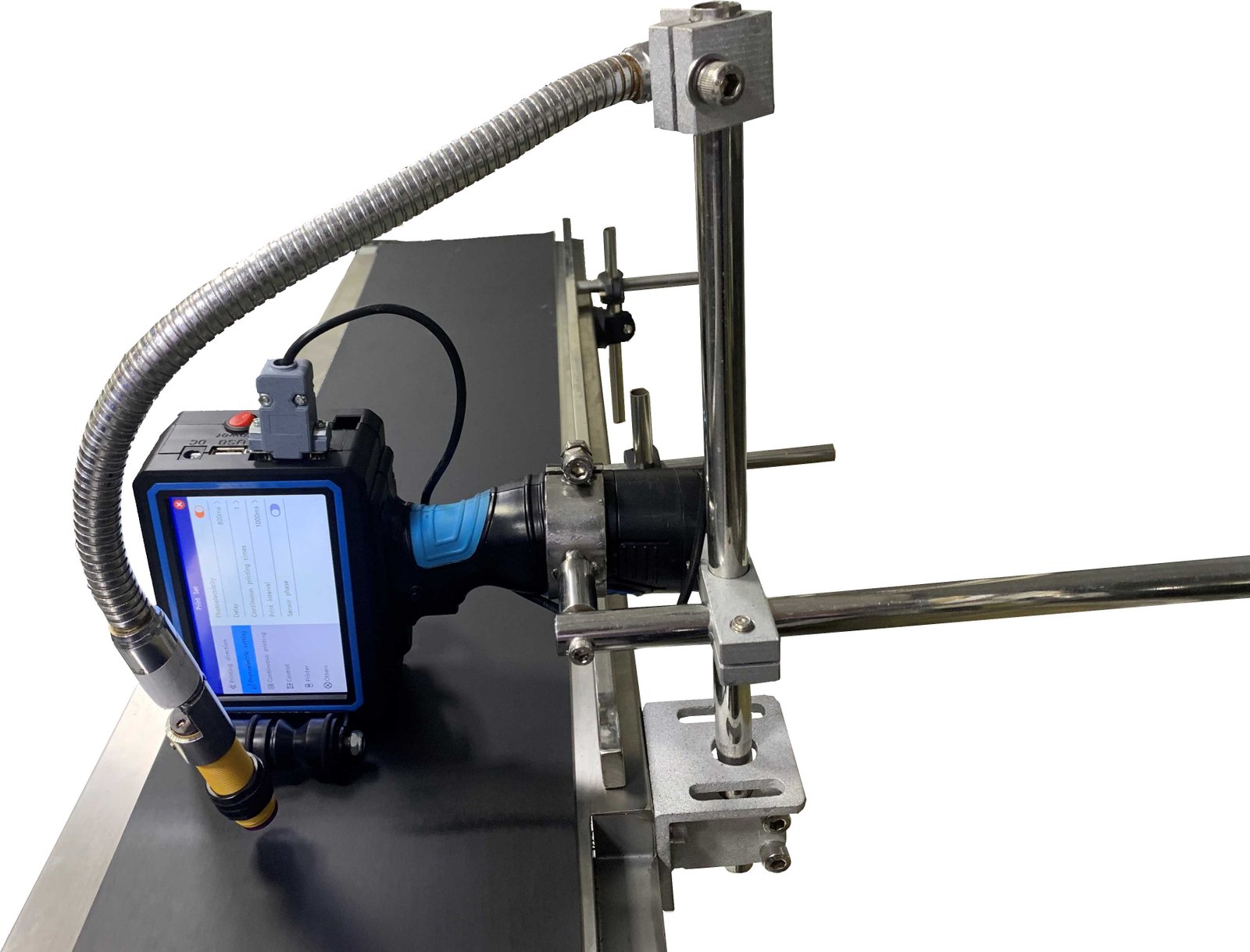

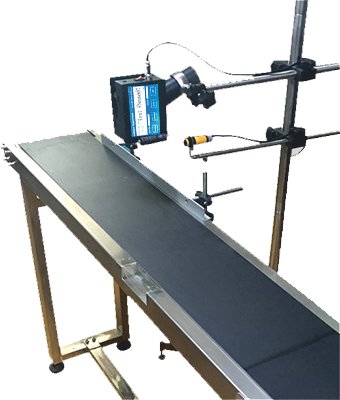

Online cartridge printer mounted on a conveyor or packing machine with bracket and external sensor. Supplier also states handheld use; touchscreen/USB editing and battery operation are listed.

Confirm configuration, availability and commercial terms with our team.

Specifications

Coder Model	Ink Jet Printer IJP – M3S-O
Display	5” full color Touch Screen LCD with LED backlight.
Languages	English, Spanish, French, German, Chinese, etc.
Input Device	800 x 480 Touch Screen LCD, Pen Drive.
Printable Images	Alphanumeric, Logo, Date/Time, Counter, Barcode, etc. UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA128, PDF417, DATAMATRIX, QR
Printing Area	1 to 6 lines of 2000 characters from 1.2 to 12.7 mm high.
Printing Direction	Adjustable at any angle within 360 degree
Message Capacity	Store upto10,000 messages with Message Name.
Printing Speed	Max. 70 meters/min for 1 to 6 line printing at 300-600 dpi
Prints Using	Hewlett-Packard (hp) TIJ 2.5 Print-head for spraying ink
Print Distance	Max. 6 mm from substrate down or in front.
Inking Medium	42 cc disposable pre-mix ink in Cartridge form with head.
Printing Medium	Solvent/Oil based inks (black, white, red, blue, yellow, etc.)
Ink Drying Time	Min. 5 seconds on plastics & laminates.
Impressions	Appx. 20 Lakh dot matrix char. of 2 mm per cartridge of ink
Operating Range	10 ~ +38ºC, 10% - 80% RH, non-condensing.
Supply Voltage	90 - 240 Vac, 50/60 Hz, 5 W
Battery Voltage	14.8 V lithium battery, 10 hours use / 20 hours standby
Dimensions	L190 x W143 x D74 mm
Weight	1.0 Kg excluding cartridge & battery.

Expanded specification view ↓

Product details

AIMS brand (made in India) Best Quality World's Lightest Industrial Online (including bracket & sensor for online mounting) Non-Contact Ink Jet Printer Model IJP – M3S-O (12.7 mm), which is a 4-in-1 Compact design, Zero Maintenance, 300-600 dpi high resolution, SIX line (character height 1.2 to 12.7 mm) Printer & can be used on Porous / Non-Porous products to print B.No., Exp.Date, Time, Serial No. (AGMARK), Logos, Scannable variable Bar Codes, etc. on labels, cartons, pouches, drums, containers, etc. It can be mounted on conveyor or Packing Machine with the stand for On-Line Printing. It is fully programmable using the 5-inch full color Touch Screen LCD or with input from USB Pen Drive. It can also be used by Hand for Manual Printing.

The system is inclusive of below mentioned accessories worth Rs. 25,000/- free of cost:

a. Hard Aluminum Carry Case with molded slots for printer & accessories.

b. 1 No. 2200 mAh Rechargeable Batteries.

c. 1 No. disposable Pre-mix Black ink cartridge, Cartridge cleaning Wipe.

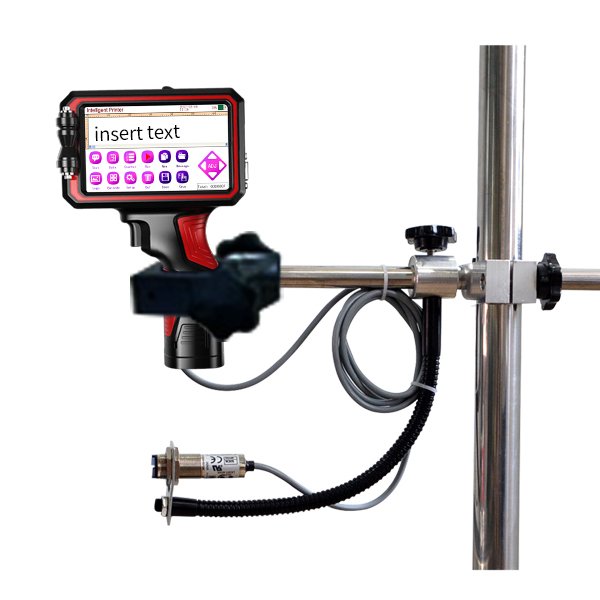

d. Bracket with External Sensor, Operation & Maintenance Manual, Instruction Video.

This printer is fully Electronic without CORE system &does not have any air pump, viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the disposable ink cartridges making it very user friendly for the Operator. The running / Printing cost is only about 6 Paise per impression (25 char).

Specifications (20)

Coder Model	Ink Jet Printer IJP – M3S-O
Display	5” full color Touch Screen LCD with LED backlight.
Languages	English, Spanish, French, German, Chinese, etc.
Input Device	800 x 480 Touch Screen LCD, Pen Drive.
Printable Images	Alphanumeric, Logo, Date/Time, Counter, Barcode, etc. UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA128, PDF417, DATAMATRIX, QR
Printing Area	1 to 6 lines of 2000 characters from 1.2 to 12.7 mm high.
Printing Direction	Adjustable at any angle within 360 degree
Message Capacity	Store upto10,000 messages with Message Name.
Printing Speed	Max. 70 meters/min for 1 to 6 line printing at 300-600 dpi
Prints Using	Hewlett-Packard (hp) TIJ 2.5 Print-head for spraying ink
Print Distance	Max. 6 mm from substrate down or in front.
Inking Medium	42 cc disposable pre-mix ink in Cartridge form with head.
Printing Medium	Solvent/Oil based inks (black, white, red, blue, yellow, etc.)
Ink Drying Time	Min. 5 seconds on plastics & laminates.
Impressions	Appx. 20 Lakh dot matrix char. of 2 mm per cartridge of ink
Operating Range	10 ~ +38ºC, 10% - 80% RH, non-condensing.
Supply Voltage	90 - 240 Vac, 50/60 Hz, 5 W
Battery Voltage	14.8 V lithium battery, 10 hours use / 20 hours standby
Dimensions	L190 x W143 x D74 mm
Weight	1.0 Kg excluding cartridge & battery.
