TLC-100

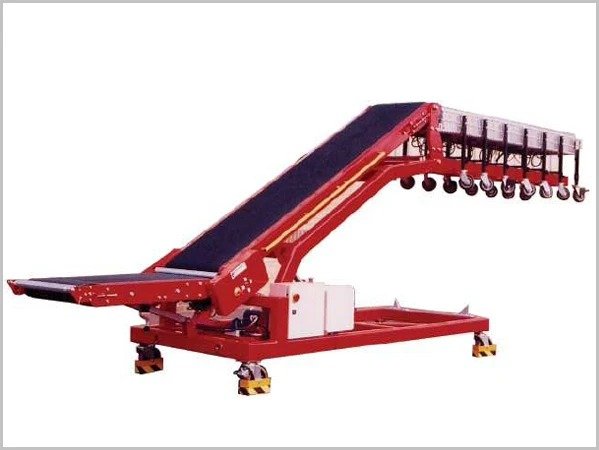

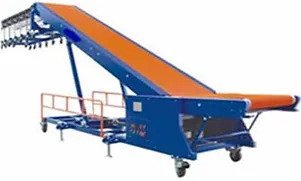

Truck Loading Conveyor Model TLC 100

Name: Truck Loading Conveyor Model TLC 100
SKU: KFT-TLC-100
Price: 439000 INR

₹439,000

Reversible truck-loading/unloading conveyor for boxes and gunny bags, also described for raised stacking. Source lists 2 m inclined delivery length plus 0.75 m horizontal loading section,600 mm collection height and 1500 mm adjustable delivery height. Fixed 20 m/min,15–25 cartons/min and 35 kg/metre are supplier claims without pack/loading test conditions.

Confirm configuration, availability and commercial terms with our team.

Specifications

Inclined, Delivery Length(Mtr.)	2 mtr
Horizontal, Loading Length(Mtr.)	0.75 mtr.
Collection Ht. (mm)	600 mm
Delivery Height Adjustable (mm)	1500 mm
Linear Speed(Mtr/Min)	20 mtr/min Fixed
Output Speed (Cartons/Min)	15-25 Cartons/min
Power	3 phase × 440 V AC
Load Capacity (Kgs/Mtr.)	35 Kgs/mtr.

Expanded specification view ↓

Product details

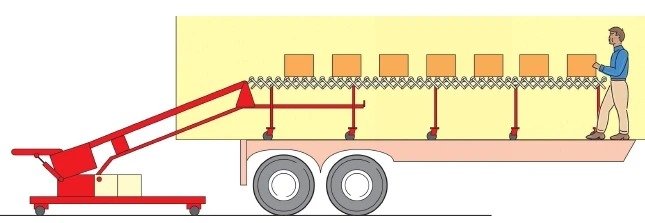

Truck Loading Conveyor Model TLC – 100 is an extremely durable material handling equipment consumes low energy of 440W, has the linear speed of 20 mtr. per min and its carton output speed of 15 to 25 carton per min. These innovative and precisely engineered Truck Loading Conveyor System works from both the directions (Rev/Fwd).We offer high quality & high capacity Truck Loading Conveyor that is used in loading / unloading of boxes and gunny bags into truck and used for moving them into higher places for stacking purposes.

Specifications (8)

Inclined, Delivery Length(Mtr.)	2 mtr
Horizontal, Loading Length(Mtr.)	0.75 mtr.
Collection Ht. (mm)	600 mm
Delivery Height Adjustable (mm)	1500 mm
Linear Speed(Mtr/Min)	20 mtr/min Fixed
Output Speed (Cartons/Min)	15-25 Cartons/min
Power	3 phase × 440 V AC
Load Capacity (Kgs/Mtr.)	35 Kgs/mtr.
