Liquid Filling Machines

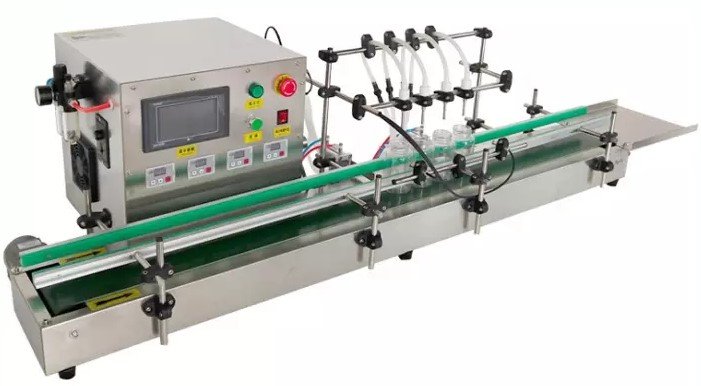

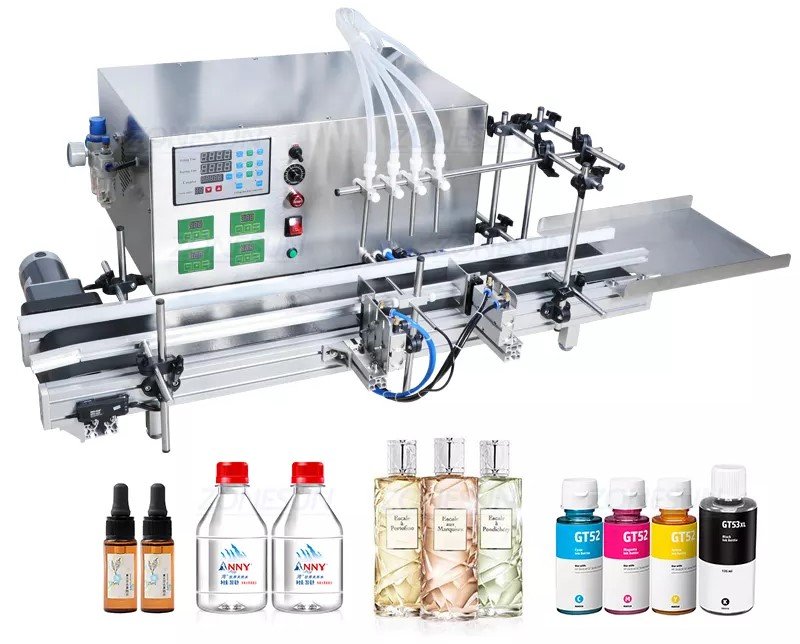

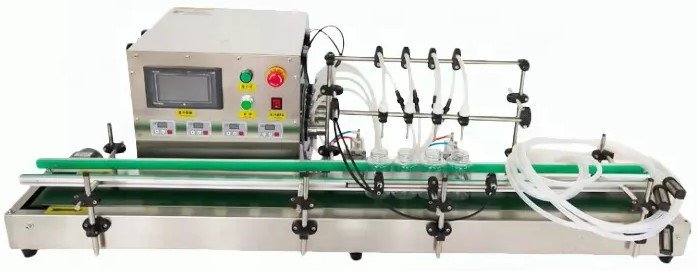

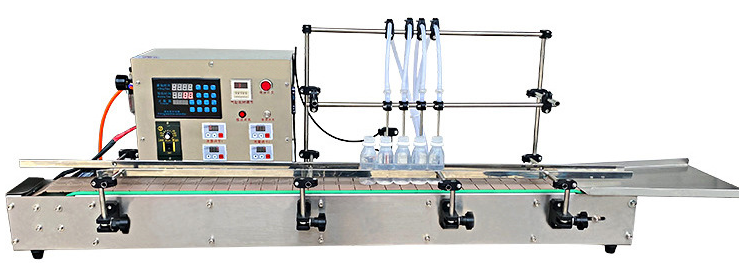

compact 4 Head Bottle Filling Machine Model AFM 100 4T
AFM-100-4T

compact 4 Head Bottle Filling Machine Model AFM 100 4T

₹249,000

Automatic four-head conveyor filler described with adjustable syringe stroke, no-bottle/no-fill, diving arrangement for foaming liquids and drip-resistant nozzles. Shares its model name with a materially different pump-based page; identity and configuration require confirmation.

Confirm configuration, availability and commercial terms with our team.

Specifications

Typesmall liquid Filling Machine
Voltage220V
Dimension(L*W*H)1750MM(L)*800MM(W)*700MM(H)
Weight75KG
Filling Accuracy±0.5%-1%
Filling Head4 Heads (customization)
Air Pressure0.4-0.6Mpa
Filling Range10-10000ml
Filling Speed20-60 bottles / Min (depend on liquid and bottle)
Expanded specification view ↓

Product details

Automatic compact 4 Head Bottle Filling Machine Model AFM-100-4T is suitable for filling Pharmaceuticals, Beverages, etc. such as juices, petroleum jelly, syrups, drinking water, paints, strainers, perfumes, flavored milk, dahi, adhesives, shampoo, edible oil, hair oil, lube oils, coolants etc. on a continuous conveyor line with no bottle no fill attachment. The speed depends on number of syringes & has diving arrangement for foaming products as well as specially designed nozzles for drip proof filling. All contact parts are made of SS (304/316). The stroke of the syringe is adjustable to adjust for the quantity to be dispensed. This is useful for filling of Beverages, Milk products, etc. in Bottles & Glasses.

Specifications (9)

Typesmall liquid Filling Machine
Voltage220V
Dimension(L*W*H)1750MM(L)*800MM(W)*700MM(H)
Weight75KG
Filling Accuracy±0.5%-1%
Filling Head4 Heads (customization)
Air Pressure0.4-0.6Mpa
Filling Range10-10000ml
Filling Speed20-60 bottles / Min (depend on liquid and bottle)
