IJP-M10

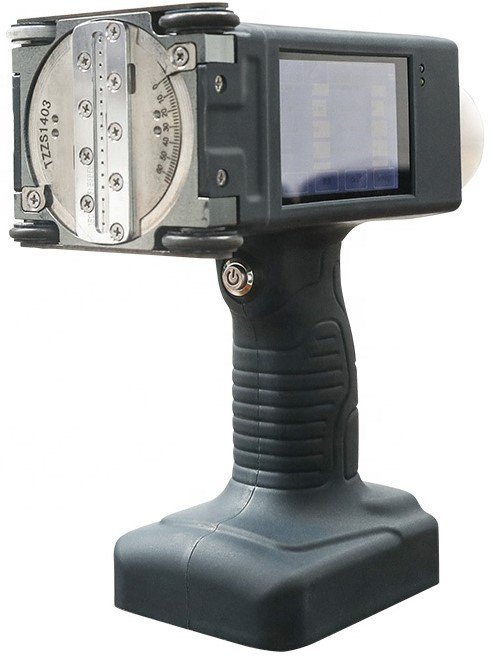

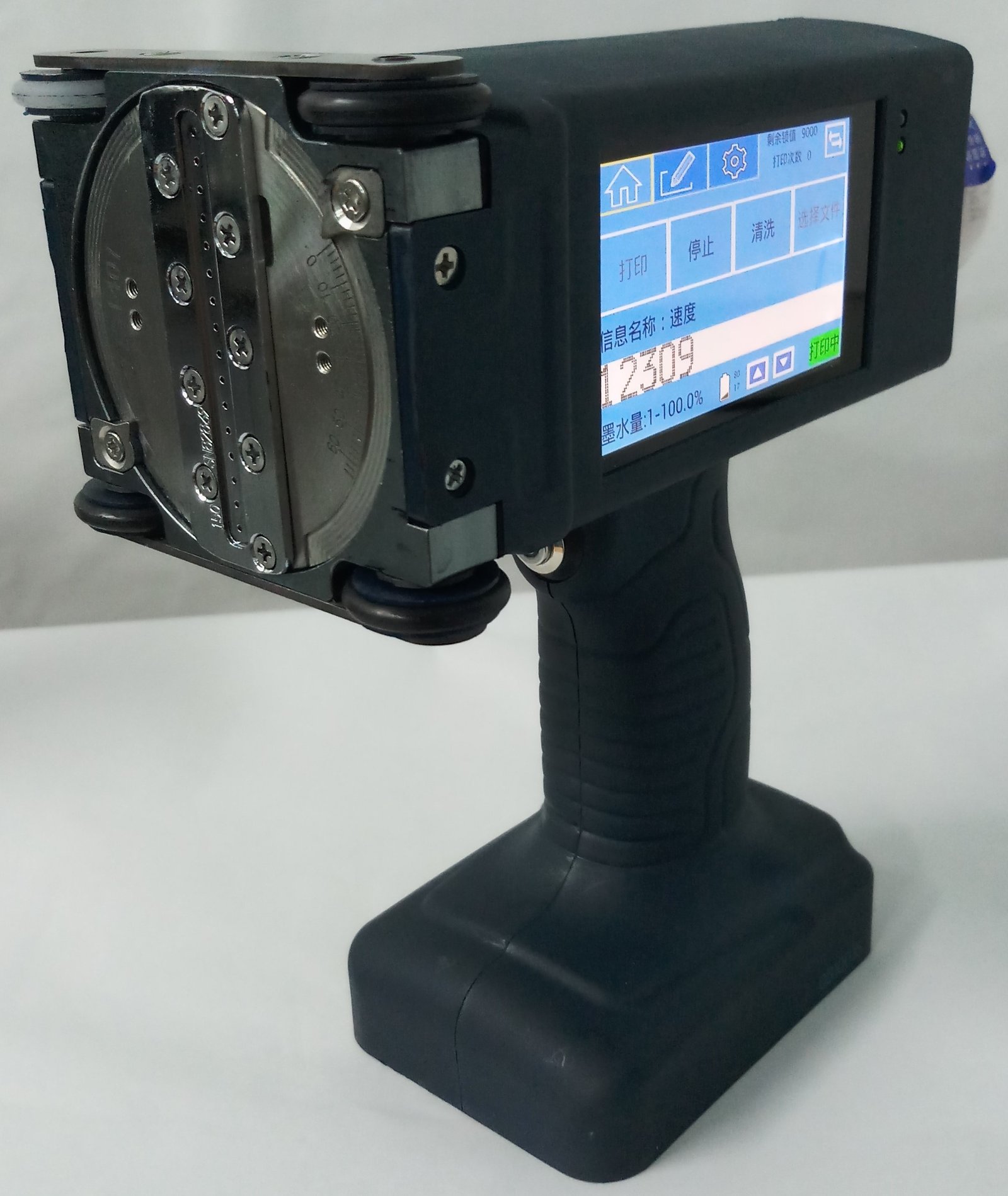

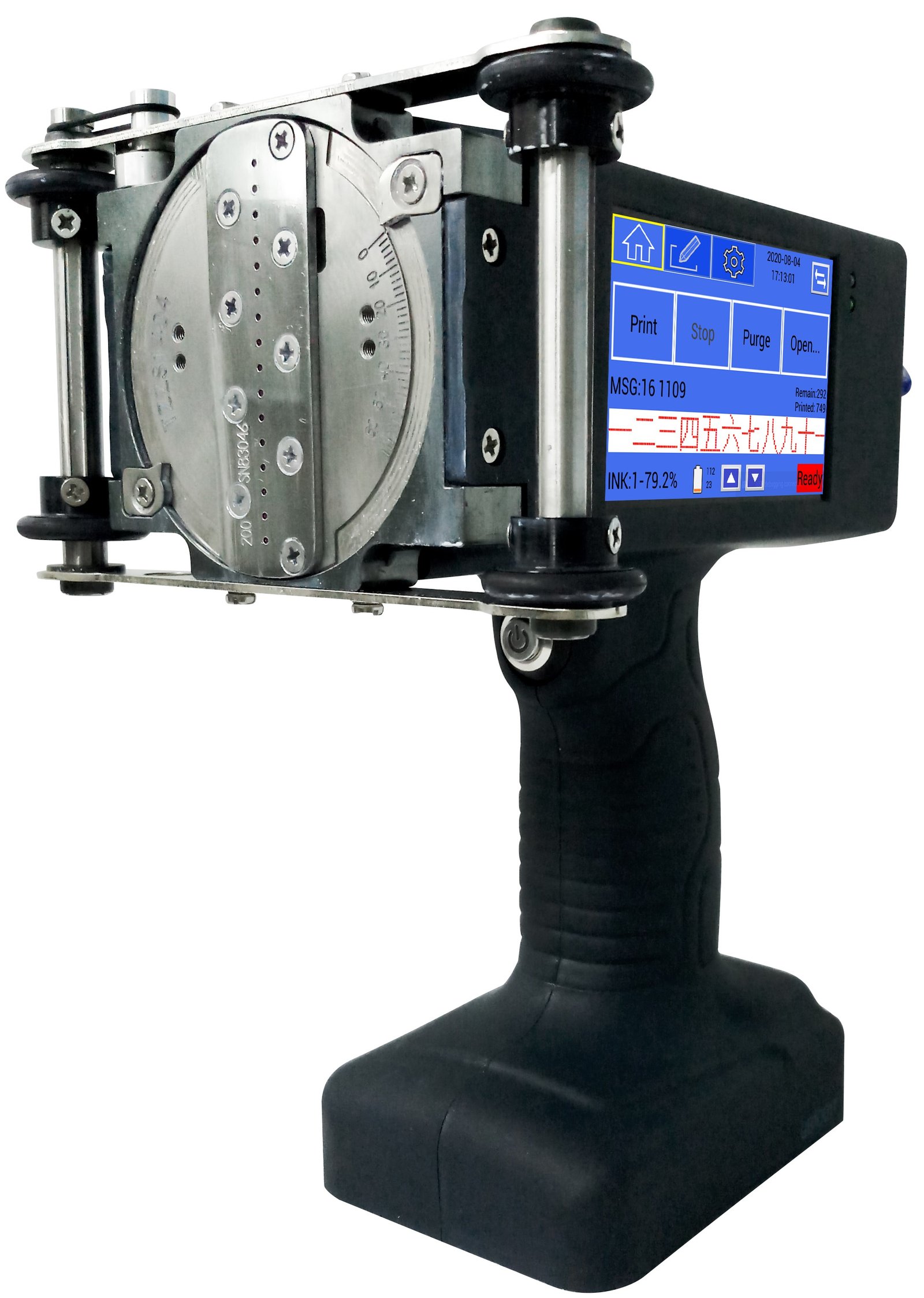

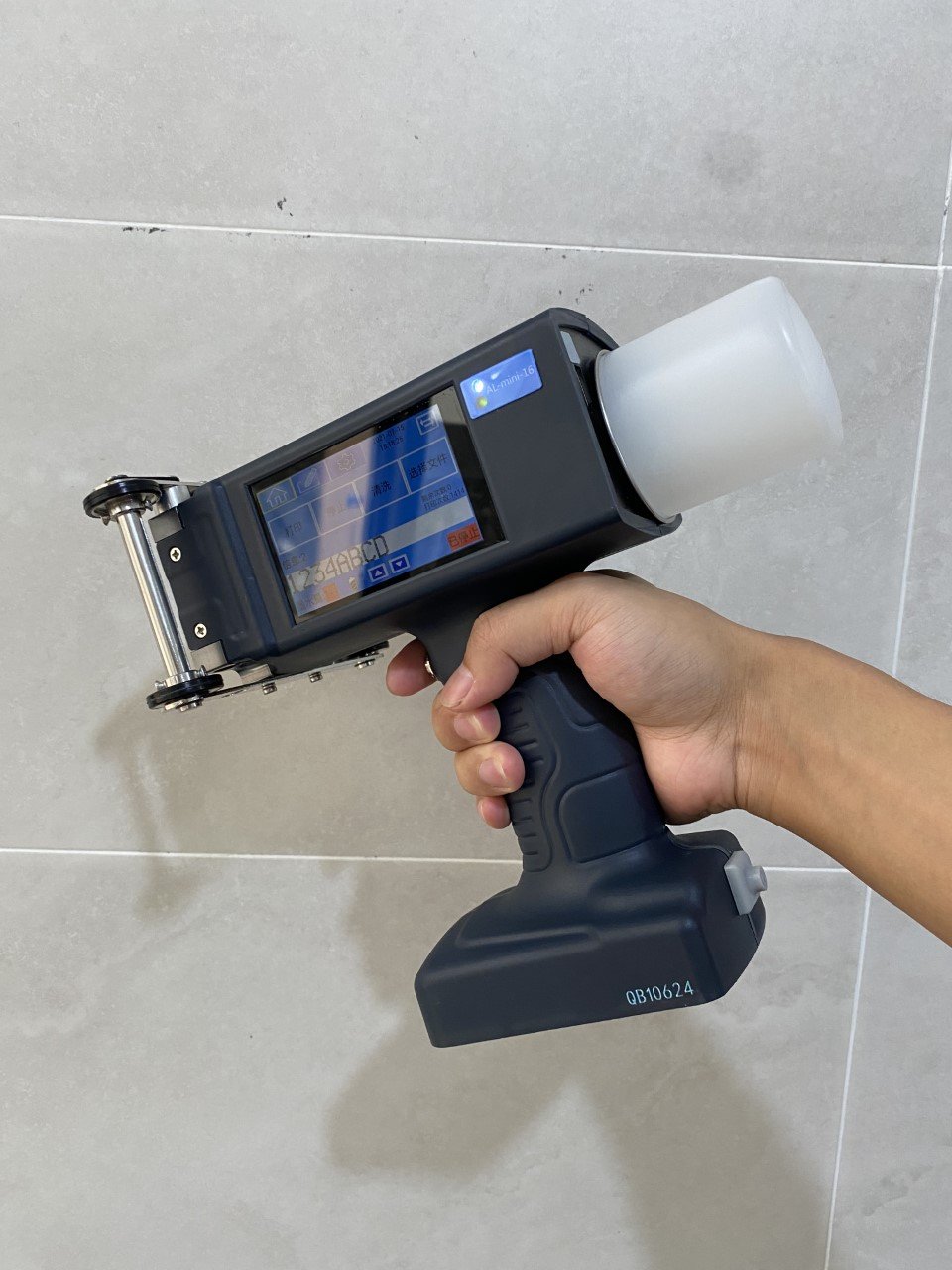

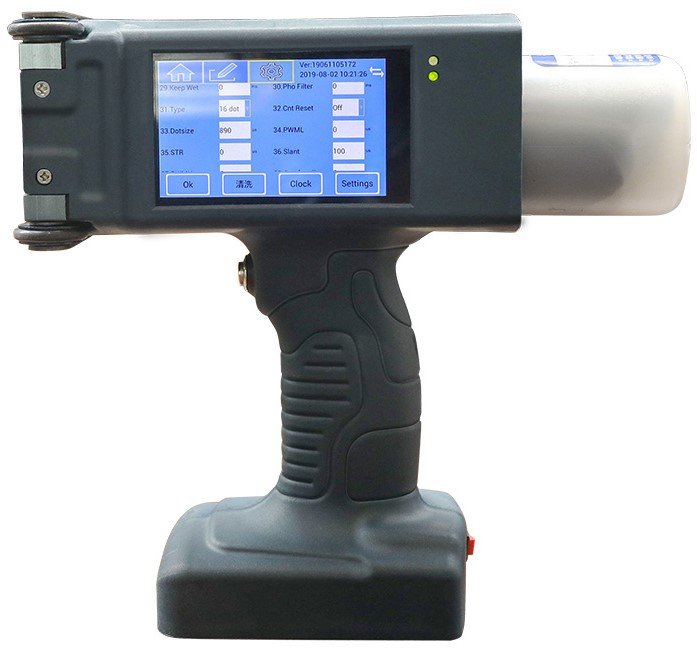

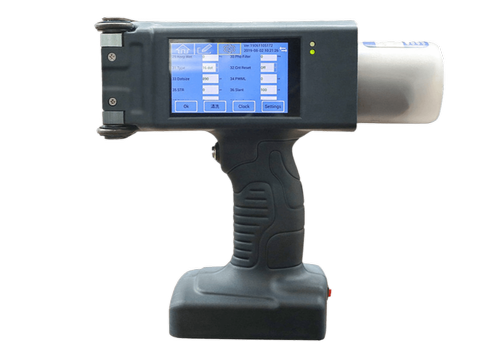

Handheld Large Character Ink Jet Printer Model IJP M10 63mm

Name: Handheld Large Character Ink Jet Printer Model IJP M10 63mm
SKU: KFT-IJP-M10
Price: 269000 INR

₹269,000

Battery-powered handheld large-character printer using electromagnetic valves. Supplier lists bags, cartons, drums and containers, with touch-screen, Wi-Fi/Android, PC and USB/database capabilities.

Confirm configuration, availability and commercial terms with our team.

Specifications

Coder Model	Ink Jet Printer IJP – M10
Display	3.5” LCD Touch Screen display.
Language	English, Chinese, Turkish, Arabic, Korean, Italian
Input Device	Android System with WiFi connect wireless transmission, USB Flash Drive for Import Database Printing, Supports External Variable Data Printing& Touch Screen
Printable Images	Alphanumeric, Logo, Date/Time, Counter/Serial No., etc.
Printing Area	1 to 2 lines from 25 to 63 mm high (Adjustable).
Printing Matrix	16 × 10, 14 × 10, 12 × 8, 9 × 6, 7 × 5
Message Capacity	1000 memory location, No limitation to length per message
Printing Speed	Max. 70 meters/min for 1 to 2 line printing
Prints Using	16 Nozzle electromagnetic valve Print-head for spraying ink
Print Distance	Max. 12 to 30 mm from substrate.
Inking Medium	200 cc ink in Cartridge form, 250g ±5g
Printing Medium	MEK / Water based inks (black, red, blue, yellow, white, etc.)
Ink Drying Time	Min. 3 to 5 seconds on plastics & laminates.
Impressions	Appx. 50,000 char. of 30 mm per 200 mL cartridge of ink.
Operating Range	5 ~ +45ºC, 10% - 70% RH, non-condensing.
Supply Voltage	24V±5%, Charger: DC 24V /1.5A DC, 30W
Battery	4 Lithium Battery with More than 8 hours printing.
Dimensions	350 × 280 × 200 mm
Weight	1.6 Kg ±10g including full ink cartridge & battery.

Expanded specification view ↓

Product details

Industrial Handheld Non-Contact Large Character Ink Jet Printer Model IJP – M10 (63mm), which is a Zero Maintenance, Battery Powered TWO line (character height 25 to 63 mm) Printer & can be used on Porous / Non-Porous products to print B.No., Exp.Date, Time, Serial No. (AGMARK), Logos, etc. on labels, cartons, bags, drums, containers, etc. It is an ultra-compact portable and light inkjet printer equipped with a print-head with electromagnetic valves. It is battery operated and WiFi controlled & is fully programmable through its Touch Screen or PC with user-friendly software where it can print 2 lines Data at a very low price. It is also capable of printing Multi-Segment / Grouped messages upto 6 lines.

The system is inclusive of below mentioned accessories worth Rs. 30,000/- free of cost:

a. Molded Carry Case with molded slots for printer & accessories.

b. Rechargeable Batteries.

c. 1 No. Pre-mix Black ink cartridge, 1 No. Solvent Cartridge.

d. Operator Tool Kit, Operation & Maintenance Manual, Instructions.

This printer is fully Electronic &does not have any viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the ink cartridges making it very user friendly for the Operator. The running / Printing cost is only about 75 Paisa per impression (20 char).

Specifications (20)

Coder Model	Ink Jet Printer IJP – M10
Display	3.5” LCD Touch Screen display.
Language	English, Chinese, Turkish, Arabic, Korean, Italian
Input Device	Android System with WiFi connect wireless transmission, USB Flash Drive for Import Database Printing, Supports External Variable Data Printing& Touch Screen
Printable Images	Alphanumeric, Logo, Date/Time, Counter/Serial No., etc.
Printing Area	1 to 2 lines from 25 to 63 mm high (Adjustable).
Printing Matrix	16 × 10, 14 × 10, 12 × 8, 9 × 6, 7 × 5
Message Capacity	1000 memory location, No limitation to length per message
Printing Speed	Max. 70 meters/min for 1 to 2 line printing
Prints Using	16 Nozzle electromagnetic valve Print-head for spraying ink
Print Distance	Max. 12 to 30 mm from substrate.
Inking Medium	200 cc ink in Cartridge form, 250g ±5g
Printing Medium	MEK / Water based inks (black, red, blue, yellow, white, etc.)
Ink Drying Time	Min. 3 to 5 seconds on plastics & laminates.
Impressions	Appx. 50,000 char. of 30 mm per 200 mL cartridge of ink.
Operating Range	5 ~ +45ºC, 10% - 70% RH, non-condensing.
Supply Voltage	24V±5%, Charger: DC 24V /1.5A DC, 30W
Battery	4 Lithium Battery with More than 8 hours printing.
Dimensions	350 × 280 × 200 mm
Weight	1.6 Kg ±10g including full ink cartridge & battery.
