Strapping & Taping Machines
Carton Taping Machine Model CTM 6050
CTM-6050

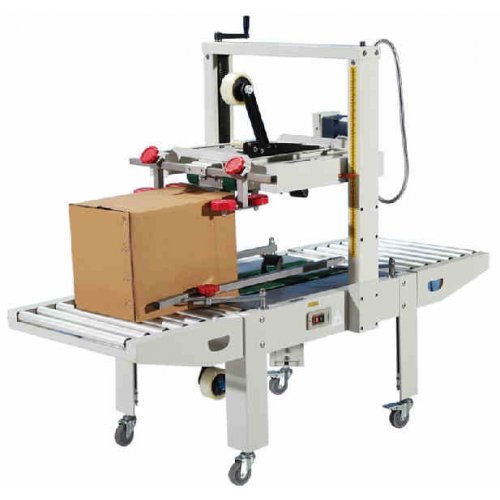

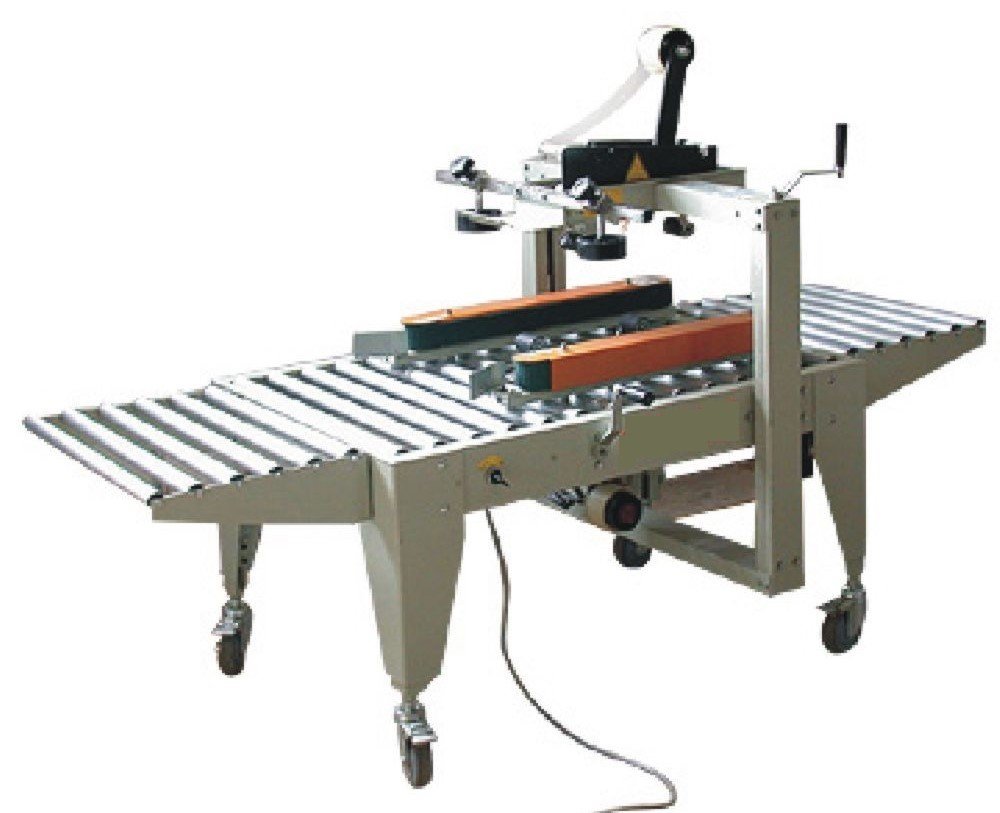

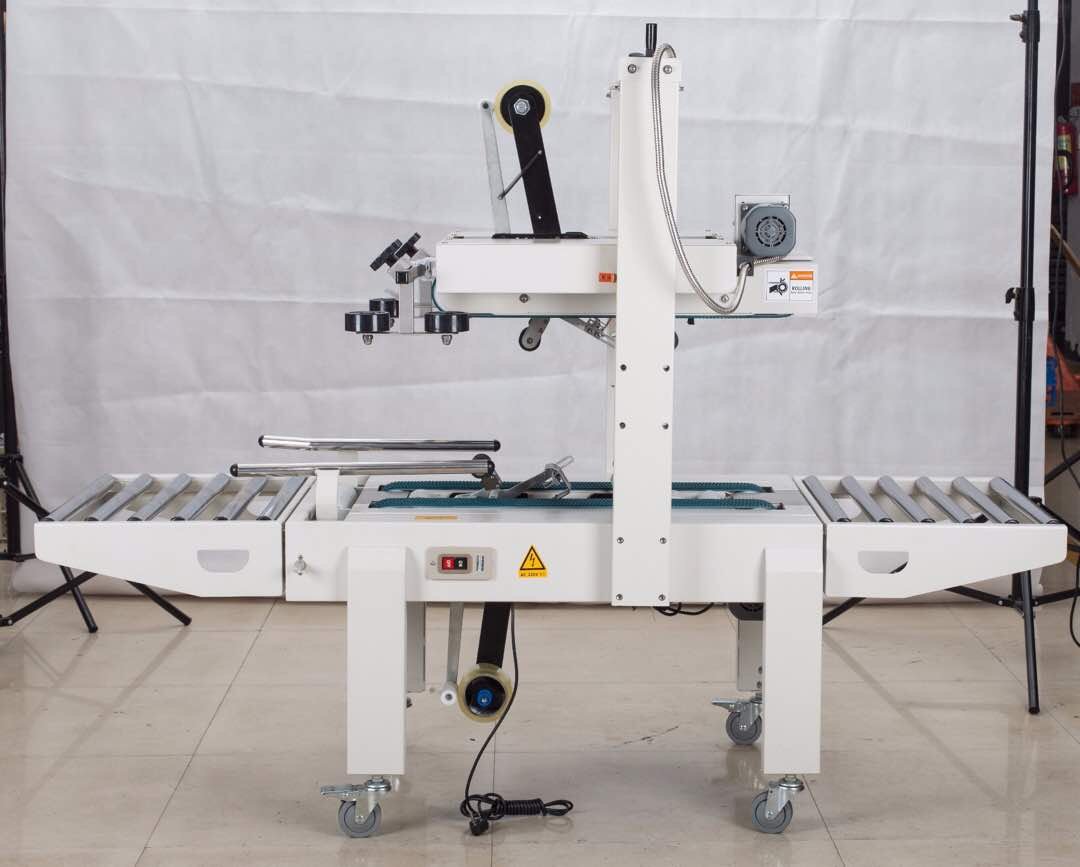

Carton Taping Machine Model CTM 6050

₹89,000

Carton taper described for uniform cartons, with simultaneous top/bottom BOPP self-adhesive tape, two-inch heads, tape-pressure rollers, motorized conveyor, automatic centering and dual motors. A three-inch-head configuration is separately mentioned.

Confirm configuration, availability and commercial terms with our team.

Specifications

Maximum Carton Sizex L X 500W X 600 H
Minimum Carton Size150 L X 170 W X 110 H
Conveyor Speed0 – 20 m/min.
Production Speed9 – 20 Cartons / min.
Power Supply220V 1-Phase / 180 W
Width Of Tape2”, 2.5”, 3” (optional)
Machine Size105 X 76 X 143 cm
Machine Weight133 Kg
Expanded specification view ↓

Product details

Carton Taping Machine Model CTM-6050 with 2” Taping Heads is designed for sticking of the BOPP type self-adhesive tape onto the Top & Bottom flaps of the cartons simultaneously along with rollers pressing the tape for a tight seal for uniform cartons and is an excellent choice for any low to high volume closure needs. The system has motorized conveyor for pulling the cartons, automatic box centering & double motor drive. This sealer is suitable for taping of Corrugated Cartons, boxes, etc. in home appliance, textile, food, medicine, chemical and so on.

Same machine as above with 3” Taping Head

Specifications (8)

Maximum Carton Sizex L X 500W X 600 H
Minimum Carton Size150 L X 170 W X 110 H
Conveyor Speed0 – 20 m/min.
Production Speed9 – 20 Cartons / min.
Power Supply220V 1-Phase / 180 W
Width Of Tape2”, 2.5”, 3” (optional)
Machine Size105 X 76 X 143 cm
Machine Weight133 Kg
