Auto Height Adjustable Pneumatic Carton Taping Machine Model FXA 6050

Name: Auto Height Adjustable Pneumatic Carton Taping Machine Model FXA 6050
SKU: KFT-FXA-6050
Price: 189000 INR

₹189,000

Pneumatic carton taper described with automatic adjustment to different carton sizes, simultaneous top/bottom BOPP taping, two-inch heads, centering and dual-motor conveyor drive. Air requirements and supplied tape-width tooling are absent.

Confirm configuration, availability and commercial terms with our team.

Specifications

Maximum Carton Size	x L X 500W X 500 H
Minimum Carton Size	180 L X 100 W X 110 H
Conveyor Speed	0 – 24 m/min.
Production Speed	9 – 20 Cartons / min.
Power Supply	220V 1-Phase / 180 W
Width Of Tape	2”, 2.5”, 3”
Machine Size	197 X 66 X 146 cm
Machine Weight	150 Kg

Expanded specification view ↓

Product details

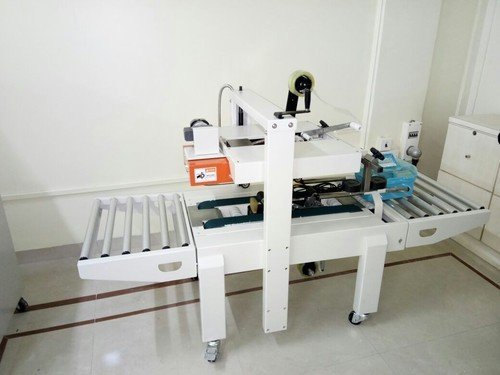

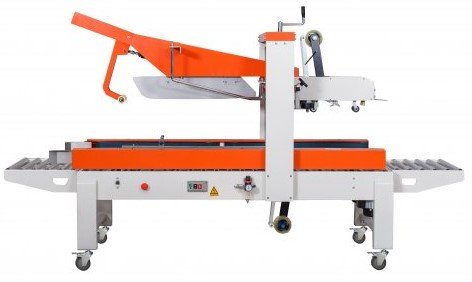

Auto Height Adjustable Pneumatic Carton Taping Machine Model FXA-6050 with 2” Taping Heads is designed for sticking of the BOPP type self-adhesive tape onto the Top & Bottom flaps of the cartons simultaneously along with rollers pressing the tape for a tight seal. The machine can adjust itself to different sizes of cartons. This machine adopts pneumatic method for packaging automatically and is an excellent choice for any low to high volume closure needs. The system has motorized conveyor for pulling the cartons, automatic box centering & double motor drive. This sealer is suitable for taping of Corrugated Cartons, boxes, etc. in home appliance, textile, food, medicine, chemical and so on.

Specifications (8)

Maximum Carton Size	x L X 500W X 500 H
Minimum Carton Size	180 L X 100 W X 110 H
Conveyor Speed	0 – 24 m/min.
Production Speed	9 – 20 Cartons / min.
Power Supply	220V 1-Phase / 180 W
Width Of Tape	2”, 2.5”, 3”
Machine Size	197 X 66 X 146 cm
Machine Weight	150 Kg
