PFM-8B/4+K

A3 Paper Folding Machine with Cross Fold Model PFM 8B 4 K

Name: A3 Paper Folding Machine with Cross Fold Model PFM 8B 4 K
SKU: KFT-PFM-8B-4-K
Price: 599000 INR

₹599,000

Automatic A3 paper folder with four folding plates plus one cross fold. Source describes stepless front-machine speed and eight-gear back-machine regulation, positive/countdown and batch counting, linked operation, paperless/jam detection and overload protection. Table gives 500-sheet loading at 70 gsm and claimed maxima 60 m/min and 7200 sheets/hour. Included module and full-system power scope need confirmation.

Confirm configuration, availability and commercial terms with our team.

Specifications

Paper Size	110 x 128mm / 297 x 420mm
Paper Thickness	50g ~ 120 gsm
Loading Capacity	500 sheets (70 gsm)
Maximum Speed	60m/min, 7200 sheets / hour, stepless speed regulation.

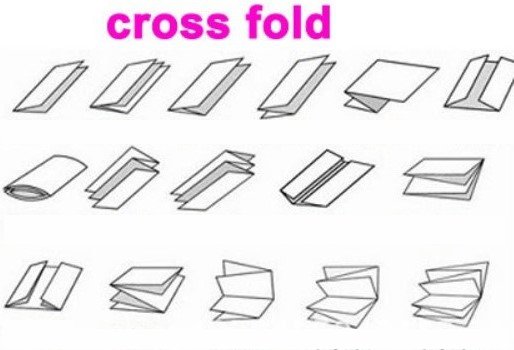

Folding Plates	4 fold + 1 cross fold
Power Supply	AC 220V/50Hz, 50 W
Size / Weight	1210 X 850 X 580 / 82 Kg

Expanded specification view ↓

Product details

Automatic A3 Paper Folding Machine with Cross Fold Model PFM-8B/4+K for folding of papers upto 4 folds in 1 pass of paper upto A3 size. It has a novel design & is highly accurate & suitable for folding paper in various sizes & thickness. This machine is efficient & easily operated. It is fed smoothly & has step-less speed adjustment of front-end machine and 8-gear program regulation of back-end machine. It can be widely used in fast printing center, manufacturing plants, government organizations, etc.

Counting function: four-digit positive counting, three-digit countdown, cycle fixed number folding

Online function: two machines are connected to the line for collaborative operation

Detection function: paperless detection, paper jam detection and overload protection

Specifications (7)

Paper Size	110 x 128mm / 297 x 420mm
Paper Thickness	50g ~ 120 gsm
Loading Capacity	500 sheets (70 gsm)
Maximum Speed	60m/min, 7200 sheets / hour, stepless speed regulation.
Folding Plates	4 fold + 1 cross fold
Power Supply	AC 220V/50Hz, 50 W
Size / Weight	1210 X 850 X 580 / 82 Kg
