IJP-T-360-O

LOW COST Industrial Ink Jet Printer Model IJP T360 O 18mm

Name: LOW COST Industrial Ink Jet Printer Model IJP T360 O 18mm
SKU: KFT-IJP-T-360-O
Price: 139000 INR

₹139,000

Online piezoelectric cartridge printer with stainless-steel construction, touch-screen and USB editing. Supplier lists bottles, pouches, labels, cartons and pipes, with an optional transverse-print arrangement.

Confirm configuration, availability and commercial terms with our team.

Specifications

Coder Model	Ink Jet Printer IJP – T-360-O
Display	4.3” full color Touch Screen LCD with LED backlight.
Languages	English, Turkish, Arabic, Chinese, etc.
Input Device	800 x 480 Touch Screen LCD, USB Pen Drive.
Printable Images	Alphanumeric, Logo, Date/Time, Counter, Barcode, etc. DATAMATRIX, QR, UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA128, PDF417, user added.
Printing Area	1 to 8 lines of 2000 characters from 1.2 to 18 mm high.
Printing Direction	Adjustable at any angle within 360 degree
Message Capacity	Store upto 10,000 messages with Message Name.
Printing Speed	Max. 40 meters/min for 1 to 8 line printing at 200 dpi
Prints Using	Xaar (UK) Piezo-electric print head for spraying ink.
Print Distance	Max. 6 mm from substrate down or in front.
Inking Medium	180 cc disposable pre-mix ink cartridge.
Printing Medium	Solvent/Oil based inks (Black, White, Red, Blue*, etc.)
Ink Drying Time	Min. 5 to 10 seconds on plastic, metal & laminates.
Impressions	Appx. 1 crore dot matrix char. of 2 mm per cartridge of ink
Operating Range	0ºC ~ 55ºC, 10% - 80% RH, non-condensing.
Supply Voltage	90 - 240 Vac, 50/60 Hz, 5 W
Battery Voltage	8.4 V lithium battery, 10 hours use / 20 hours standby
Dimensions	L145 × W160 × D170 mm
Weight	0.8 Kg excluding cartridge & battery.

Expanded specification view ↓

Product details

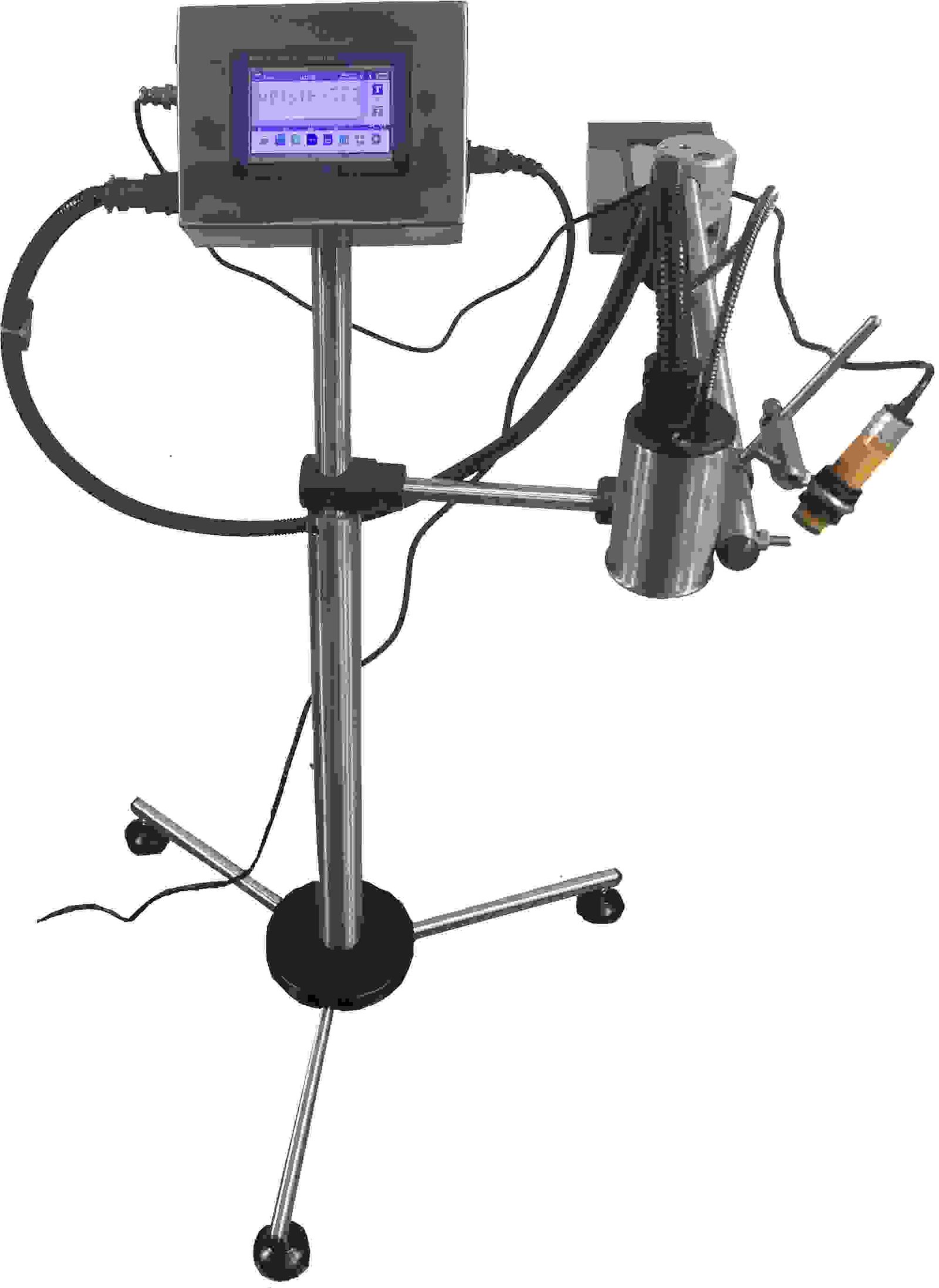

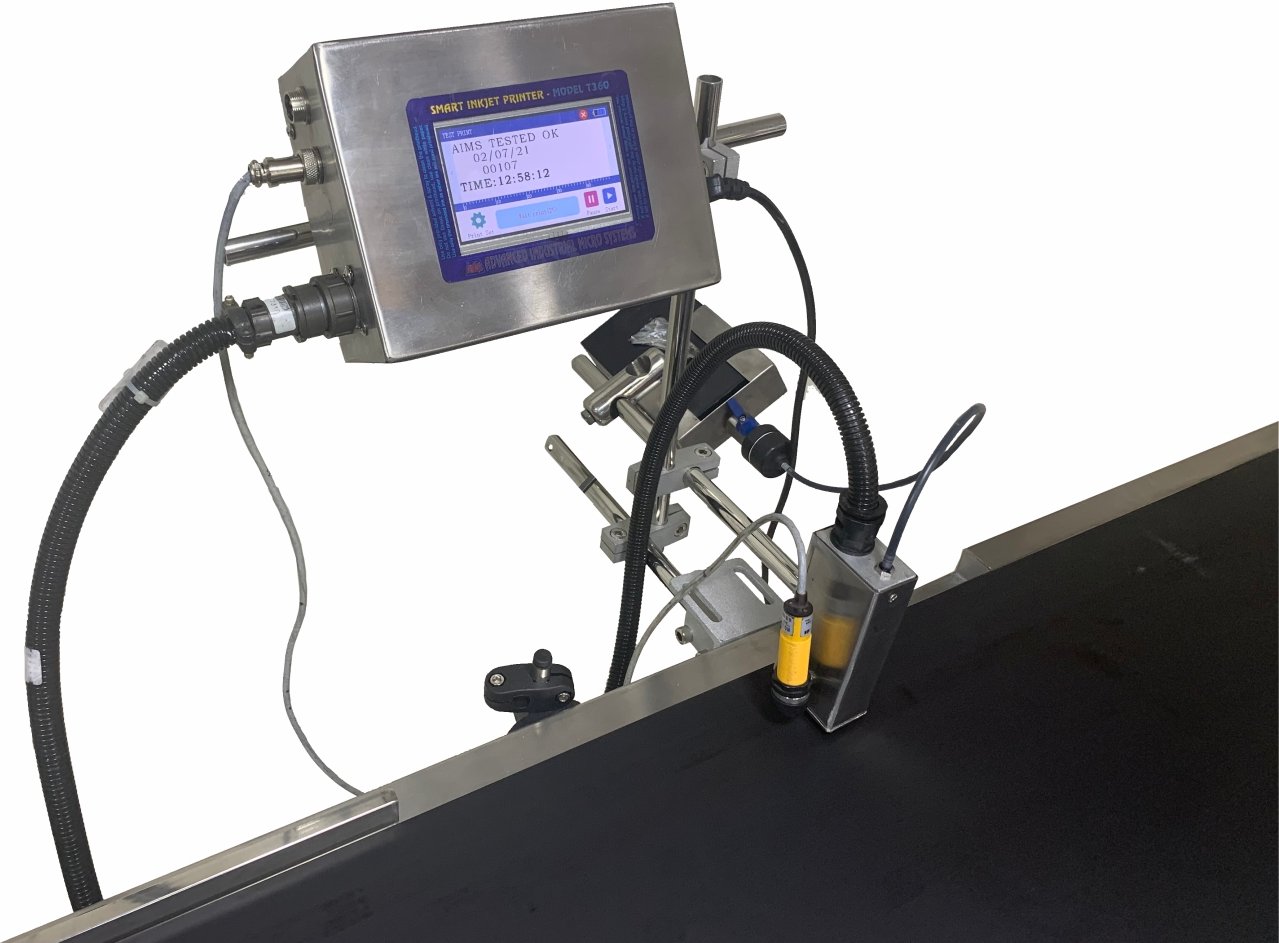

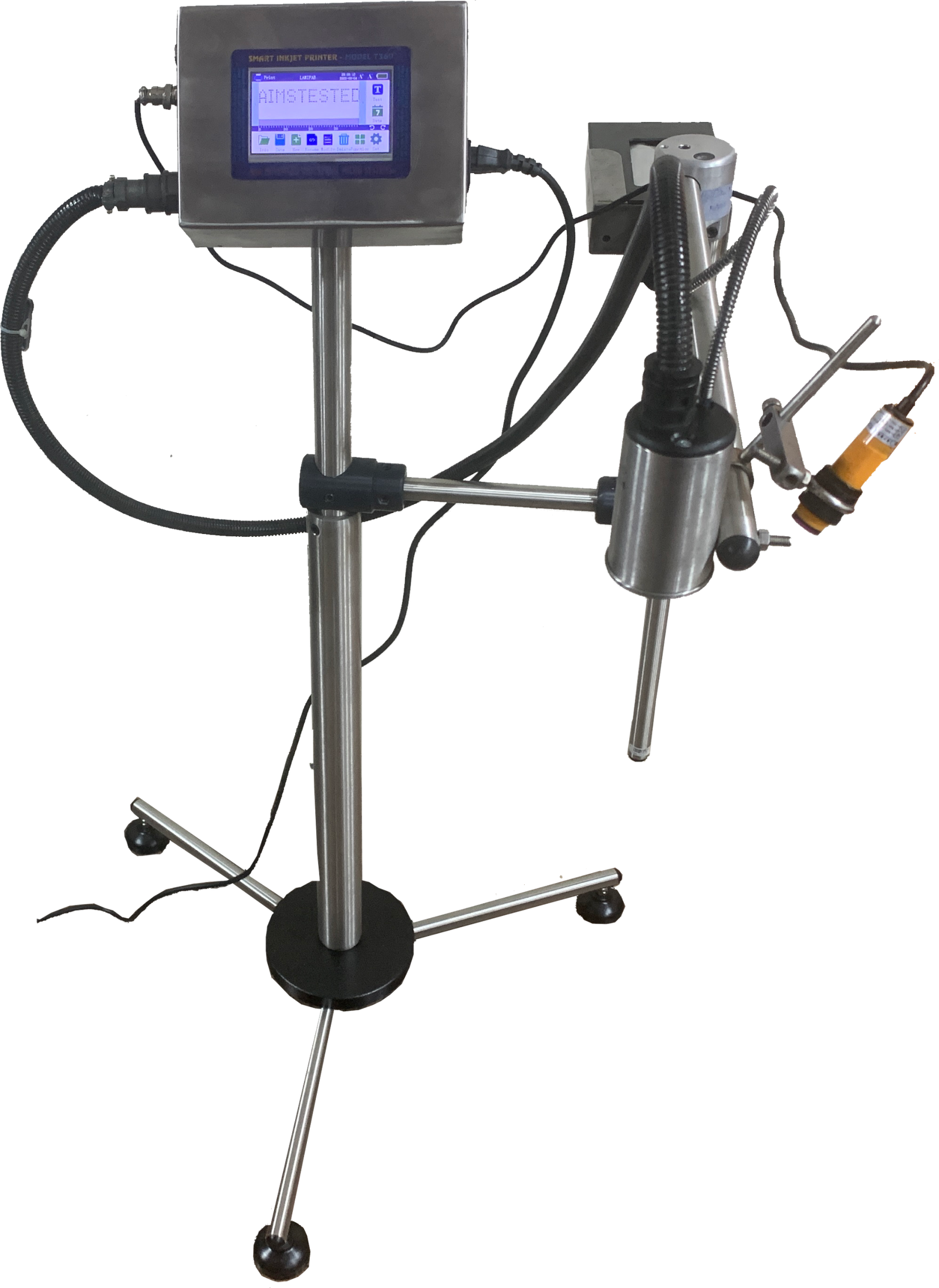

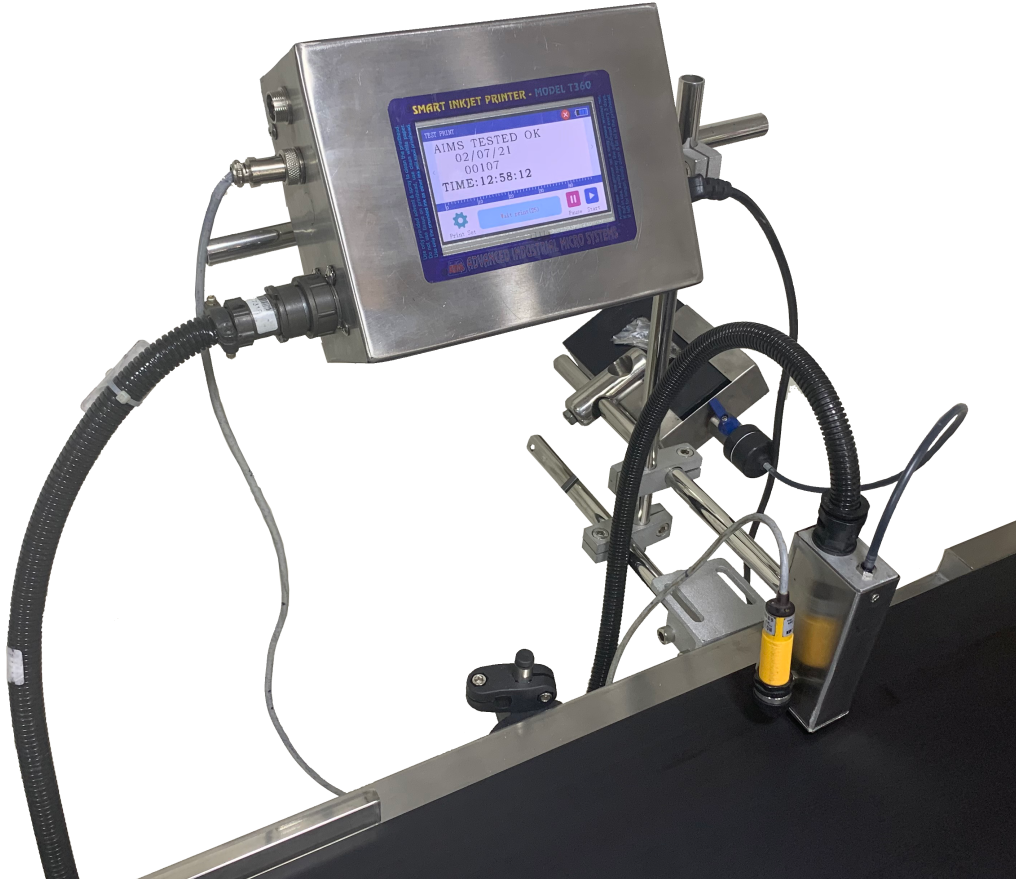

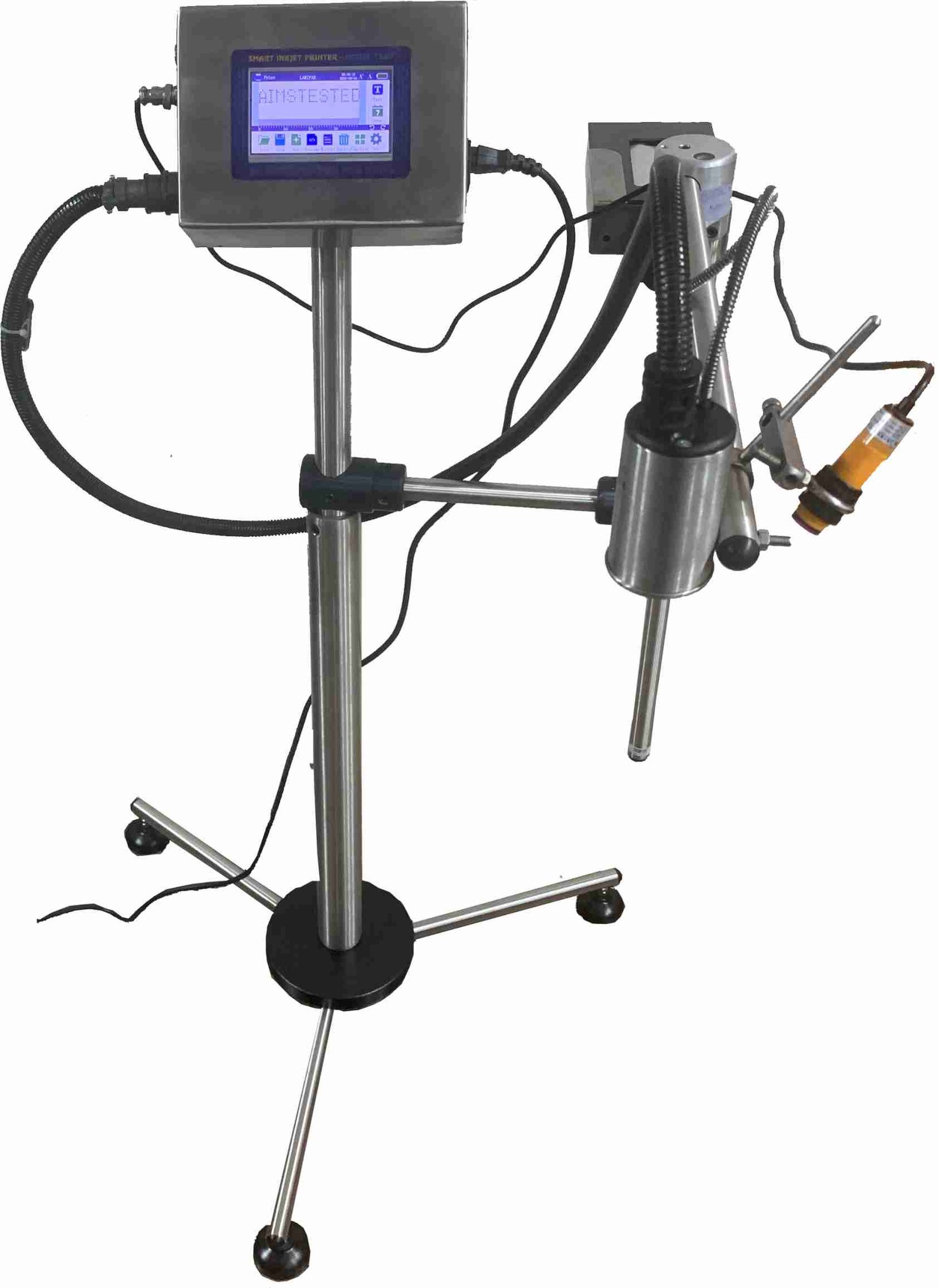

LOW COST Industrial On-Line Non-Contact Ink Jet Printer Model IJP – T-360-O (18mm), which is a Zero Maintenance, 200 dpi high resolution, Mains Powered EIGHT line (character height 1.2 to 18 mm) printer. It has Stainless Steel construction & can be installed on Porous & Non-Porous production lines to print B.No., Mfg.Date, Exp.Date, MRP `, Time, Serial No. (AGMARK), Logos, Scannable variable BarCodes, etc. on bottles, pouches, labels, cartons, Pipes, etc. also with option of 90o traverse print. It is fully programmable using the 4.3-inch full color Touch Screen LCD or with input from USB Pen Drive.

The system is inclusive of below mentioned accessories worth Rs. 35,000/- free of cost:

a. Stainless Steel Machine Stand with Print head Stand.

b. Product Detector with Mounting Bracket.

c. 1 No. disposable Pre-mix ink cartridge, 1 no. Cleaning Spray.

d. 1 No. 2600 mAh Rechargeable Battery.

e. Operator Tool Kit, Operation & Maintenance Manual.

This printer is fully Electronic without CORE system & does not have any air pump, viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the disposable ink cartridges making it very user friendly for the Operator. The running / Printing cost is only about 2 Paise per impression (25 char).

	T360-O Ink Jet Printer	Other Ink Jet Printers Available	Advantage of our Ink-Jet Printer
a.	No Core / Reservoir to be changed.	Core / Reservoir to be replaced. ` 1,25,000/- ea.	Hidden cost of Core Systems avoided.
b.	Fully Electronic. No mechanical parts.	Air Pump, Viscosity Control Unit, etc. ` 80,000/- ea.	Mechanical parts get worn out & fail in time.
c.	No Filters for Ink.	Filter has to be changed regularly. ` 25,000/- ea.	Very high replacement filter cost saved.
d.	Zero maintenance cost.	Very High Maintenance Cost. AMC` 35,000/-	Huge Cost saving every Year.
e.	Push Fit pre-mix disposable Ink Cartridge.	Separate Ink, Make-Up & Solvent Bottles.	Ease of use for the Operator.
f.	Simple Ethanol based Inks.	Methanol (M.E.K.) based Inks.	MEK is highly toxic for humans.
g.	300 dpi High Resolution Printing.	Very low resolution 60 dpi dot-dot type printing.	Logos & Barcodes can be printed perfectly.
h.	90 Million+ characters per liter of Ink.	45 Million Characters per liter of Ink + Makeup.	Very Low Running Cost of Printer.

Specifications (20)

Coder Model	Ink Jet Printer IJP – T-360-O
Display	4.3” full color Touch Screen LCD with LED backlight.
Languages	English, Turkish, Arabic, Chinese, etc.
Input Device	800 x 480 Touch Screen LCD, USB Pen Drive.
Printable Images	Alphanumeric, Logo, Date/Time, Counter, Barcode, etc. DATAMATRIX, QR, UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA128, PDF417, user added.
Printing Area	1 to 8 lines of 2000 characters from 1.2 to 18 mm high.
Printing Direction	Adjustable at any angle within 360 degree
Message Capacity	Store upto 10,000 messages with Message Name.
Printing Speed	Max. 40 meters/min for 1 to 8 line printing at 200 dpi
Prints Using	Xaar (UK) Piezo-electric print head for spraying ink.
Print Distance	Max. 6 mm from substrate down or in front.
Inking Medium	180 cc disposable pre-mix ink cartridge.
Printing Medium	Solvent/Oil based inks (Black, White, Red, Blue*, etc.)
Ink Drying Time	Min. 5 to 10 seconds on plastic, metal & laminates.
Impressions	Appx. 1 crore dot matrix char. of 2 mm per cartridge of ink
Operating Range	0ºC ~ 55ºC, 10% - 80% RH, non-condensing.
Supply Voltage	90 - 240 Vac, 50/60 Hz, 5 W
Battery Voltage	8.4 V lithium battery, 10 hours use / 20 hours standby
Dimensions	L145 × W160 × D170 mm
Weight	0.8 Kg excluding cartridge & battery.
