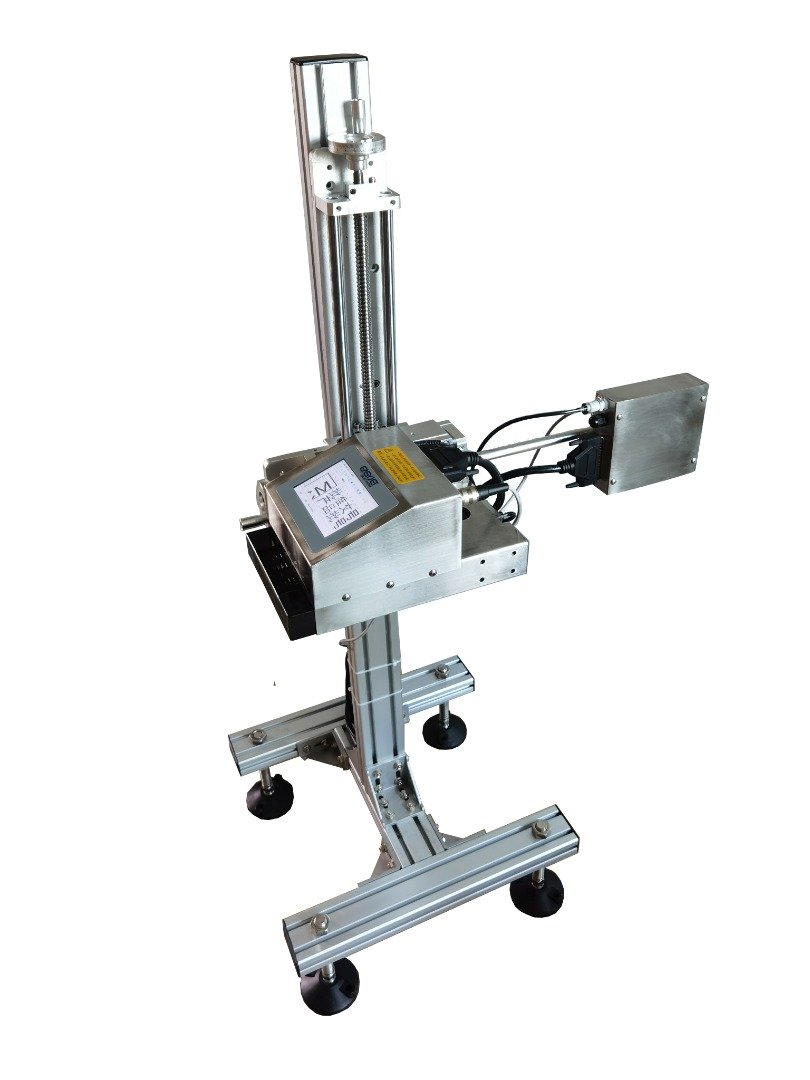

Large Character Colored Touch Screen On-Line Non-Contact Ink Jet Printer Model IJP-X72, using 72mm Japanese Seiko Printhead which can be vertical downward or on the side (any angle). It is a Zero Maintenance, high resolution, THIRTY FIVE line (character height 1 to 72 mm) printer. It has Stainless Steel construction & can be installed on Porous production line to print B.No., Mfg.Date, Exp.Date, MRP `, Time, Serial No. (AGMARK), High Quality Logos, Hindi / Local Language also with option of 90o traverse print on labels, cartons, etc. It is a High-Speed printer & has a large Colored WYSIWYG Touch Screen Display & complete keyboard for setting all parameters. It can also accept data from computer via. USB connection and is capable of accepting variable / random data from Excel sheets or from external on-line sources like Weighing Scales, PLCs, etc. It can print variable High Resolution, Scannable 1D / 2D (Datamatrix / QR) Barcodes with changing/serial numbers as required for Primary / Secondary & Tertiary Packaging in the Pharmaceutical Industry, widely used in a variety of traceability system and product classification / identification purposes with support for protocol customization. It also has the provision of connecting up to TWO 72 mm Seiko Print-Heads simultaneously with different data from each head for a large 140 mm (5.5”) height print (Model IJP-X140).
The system is inclusive of below mentioned accessories worth ` 70,000/- free of cost:
a. Stainless Steel Machine Stand with Print head Stand.
b. Product Detector with Mounting Bracket.
c. 1 No. disposable Pre-mix ink cartridge, 1 no. Cleaning Solvent.
d. Operator Tool Kit, Operation & Maintenance Manual.
This printer is fully Electronic without CORE system &does not have any air pump, viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the disposable ink cartridges making it very user friendly for the Operator. The running / Printing cost is only about 2 Paise per impression (25 char).
| IJP-X72 Ink Jet Printer | Other Ink Jet Printers Available | Advantage of our Ink-Jet Printer |
| a. | No Core / Reservoir to be changed. | Core / Reservoir to be replaced. ` 1,25,000/- ea. | Hidden cost of Core Systems avoided. |
| b. | Fully Electronic. No mechanical parts. | Air Pump, Viscosity Control Unit, etc. ` 80,000/- ea. | Mechanical parts get worn out & fail in time. |
| c. | No Filters for Ink. | Filter has to be changed regularly. ` 25,000/- ea. | Very high replacement filter cost saved. |
| d. | Zero maintenance cost. | Very High Maintenance Cost. AMC` 35,000/- | Huge Cost saving every Year. |
| e. | Push Fit pre-mix disposable Ink Cartridge. | Separate Ink, Make-Up & Solvent Bottles. | Ease of use for the Operator. |
| f. | Simple Ethanol based Inks. | Methanol (M.E.K.) based Inks. | MEK is highly toxic for humans. |
| g. | 300 dpi High Resolution Printing. | Very low resolution 60 dpi dot-dot type printing. | Logos & Barcodes can be printed perfectly. |
| h. | 90 Million+ characters per liter of Ink. | 45 Million Characters per liter of Ink + Makeup. | Very Low Running Cost of Printer. |
