IJP-EGG-EP6

Six Head Egg Jet Printer Model IJP EGG EP6 9mm

Name: Six Head Egg Jet Printer Model IJP EGG EP6 9mm
SKU: KFT-IJP-EGG-EP6-9MM
Price: 349000 INR

₹349,000

Six-head single-pass printer for six rows of eggs, with optional different colours by head and an included conveyor. Computer drag-and-drop editing and USB/memory-card transfer are described. This is the 9 mm variant.

Confirm configuration, availability and commercial terms with our team.

Specifications

Coder Model	IJP – EGG–EP6
Supply Voltage	1Ø, 100 to 240 Vac, 50~60 Hz, 150 VA
Operating Range	0~45 deg. C, 10~90% RH non-condensing.
Printing Area	1~ 4 lines from 2~ 9 mm high.
Printing Speed	Max. 20 Meters / min. for 1 to 4 line printing.
Prints Using	Thermal foam type print head for spraying ink.
Printing Distance	0 ~ 5 mm
Inking Medium	45 mL. Disposable pre-mix ink cartridge
Printing Medium	Food Grade inks (Red, Blue, Green, Purple, etc.), easy to fill.
Impressions	Appx. 1.2 million characters on eggs with 2 mm character size per set of 6 cartridges of ink.
Conveyor Length	1.6 Meters
Dimensions	650 × 500 × 450 mm.
Weight	56 Kgs for machine with conveyor.

Expanded specification view ↓

Product details

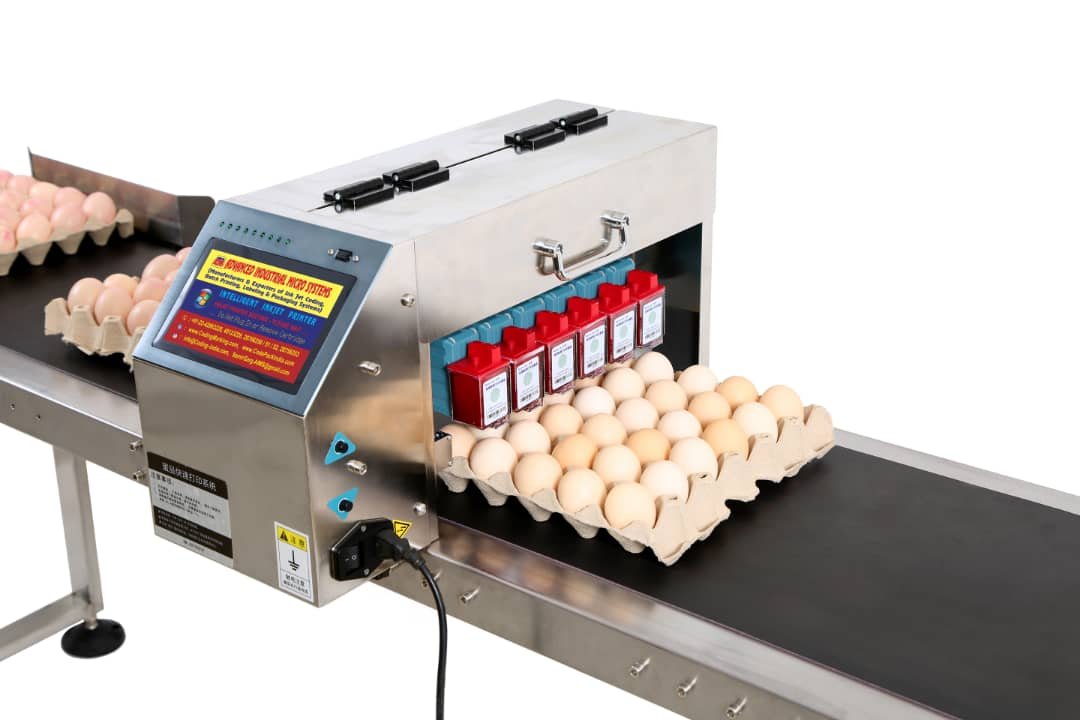

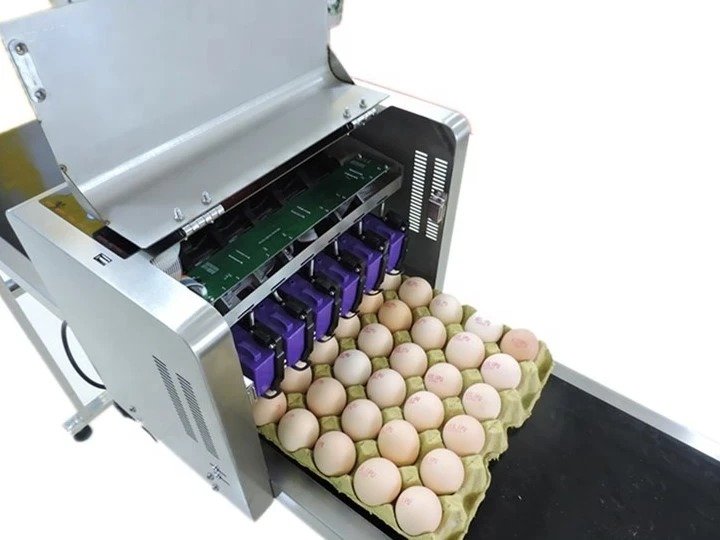

Colored Touch Screen Six-Head Egg Jet Printer Model IJP – EGG–EP6 (9mm), which is an economical, Zero Maintenance, user friendly, high resolution, FOUR line, Non-Contact printer specially designed to print on 6 rows of eggs on tray simultaneously (in 6 different colors if required) without the use of Print-Head traversing system. The system comes complete with conveyor system to feed egg trays & can easily be integrated with existing production lines & can print Company Name, Serial No., LOGO, Pro. Dt., Exp. Dt., B. No., QR Code, etc. It is a High Speedsingle pass printer & has a 7” Colored Touch Screen Display for setting all parameters. There is a simple drag-and-drop editing software that is used to enter the information on the computer, saves it to the memory card, and then the card is put in the machine via USB. The printer can store unlimited messages. It has a unique nozzle alignment feature, so that the printing is clearer on each egg. It has a capacity of printing 20,000 ~50,000 eggs / hour of soil eggs, firewood eggs, foreign eggs, duck eggs, pine eggs, preserved eggs, colorful eggs, etc.

The system is inclusive of below mentioned accessories worth ` 80,000/- free of cost:

a. Special Conveyor system with multi Print head Stand.

b. Product Detector with stand.

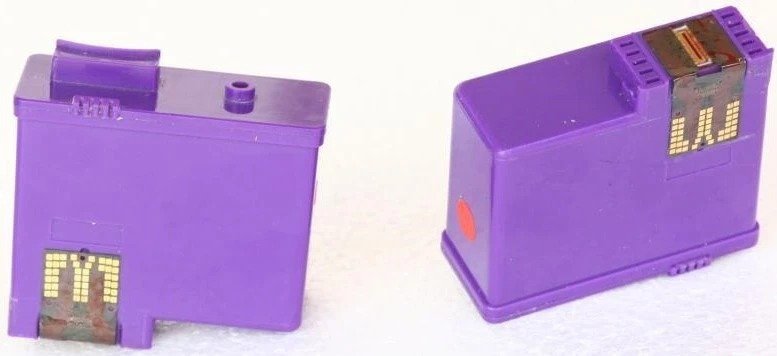

c. 6 Nos. disposable Pre-mix Food Grade 45 mL ink cartridges.

d. Operator Tool Kit, Operation & Maintenance Manual, Operation Video.

This printer is fully Electronic without CORE system & does not have any air pump, viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the disposable ink cartridges making it very user friendly for the Operator. The running / Printing cost is only about 2 Paise per impression (25 char).

Specifications (13)

Coder Model	IJP – EGG–EP6
Supply Voltage	1Ø, 100 to 240 Vac, 50~60 Hz, 150 VA
Operating Range	0~45 deg. C, 10~90% RH non-condensing.
Printing Area	1~ 4 lines from 2~ 9 mm high.
Printing Speed	Max. 20 Meters / min. for 1 to 4 line printing.
Prints Using	Thermal foam type print head for spraying ink.
Printing Distance	0 ~ 5 mm
Inking Medium	45 mL. Disposable pre-mix ink cartridge
Printing Medium	Food Grade inks (Red, Blue, Green, Purple, etc.), easy to fill.
Impressions	Appx. 1.2 million characters on eggs with 2 mm character size per set of 6 cartridges of ink.
Conveyor Length	1.6 Meters
Dimensions	650 × 500 × 450 mm.
Weight	56 Kgs for machine with conveyor.
