Liquid Filling Machines

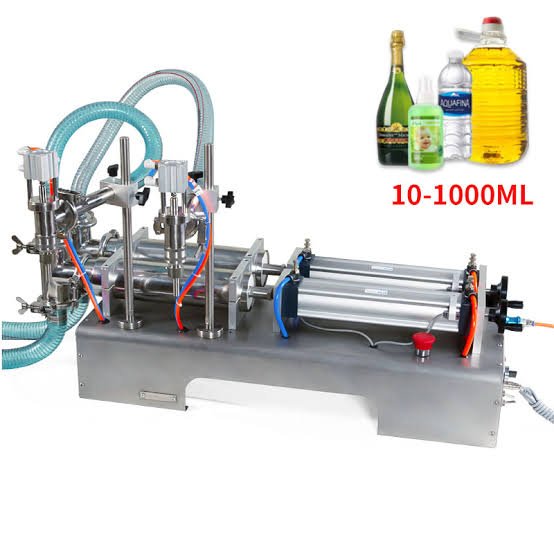

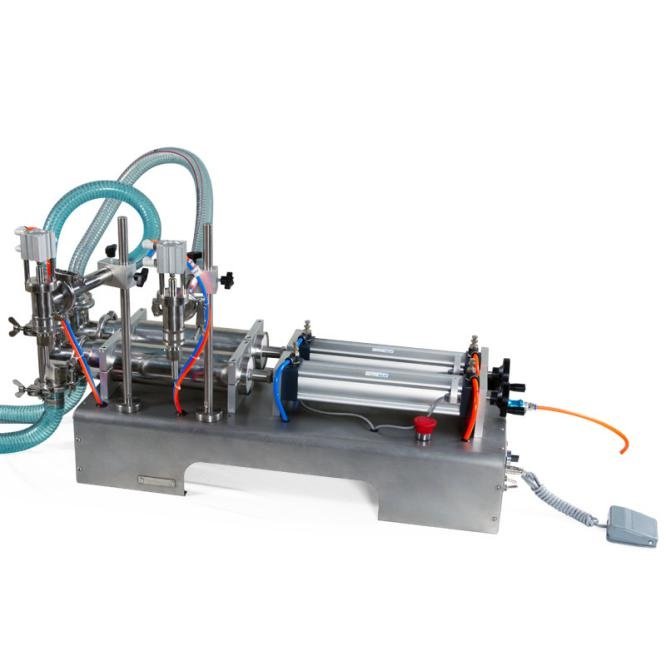

Double Head Pneumatic Liquid Filling Machine Model LFM 1000D 1L
LFM-1000D

Double Head Pneumatic Liquid Filling Machine Model LFM 1000D 1L

₹69,000

Semi-automatic two-head pneumatic filler with adjustable cylinder stroke and non-return valve. Supplier lists beverages, milk products, oils, syrups, shampoo, adhesives, paints and petroleum jelly; product-specific compatibility needs confirmation. Diving nozzles are offered.

Confirm configuration, availability and commercial terms with our team.

Specifications

Filling Range100 ml – 1000 ml ± 1 %
Can FillBottles , Pouches
Output20 - 36 Bottles/min
Gas Pressure0.4 – 0.6 Mpa
Power220 VAc – 50 Hz / 50 W
Dimensions / Approx. Weight100 x 50 x 105 cm (L x W x H) / 40kgs
Expanded specification view ↓

Product details

Semi-Automatic Double Head Pneumatic Liquid Filling Machine Model LFM-1000D (1L) is a Pneumatic Filling Machine suitable for filling Pharmaceuticals, Beverages, etc. such as juices, petroleum jelly, syrups, drinking water, paints, strainers, perfumes, flavored milk, dahi, adhesives, shampoo, edible oil, hair oil, lube oils, coolants etc. in any shaped container having Plastic, Glass or any other surface. All contact parts are made of SS (304/316). The stroke of the Pneumatic cylinder is adjustable to adjust for the quantity to be dispensed. Non return valve is accurately designed to achieve drip proof result & can be provided with diving nozzles for frothy foamy liquids. This is useful for filling of Beverages, Milk products, etc. in Bottles & Glasses.

Specifications (6)

Filling Range100 ml – 1000 ml ± 1 %
Can FillBottles , Pouches
Output20 - 36 Bottles/min
Gas Pressure0.4 – 0.6 Mpa
Power220 VAc – 50 Hz / 50 W
Dimensions / Approx. Weight100 x 50 x 105 cm (L x W x H) / 40kgs
