Online Pouch Sealing
Vacuum and Nitrogen type Band Sealing Machine with Printing Model BSM 1080V
BSM-1080V

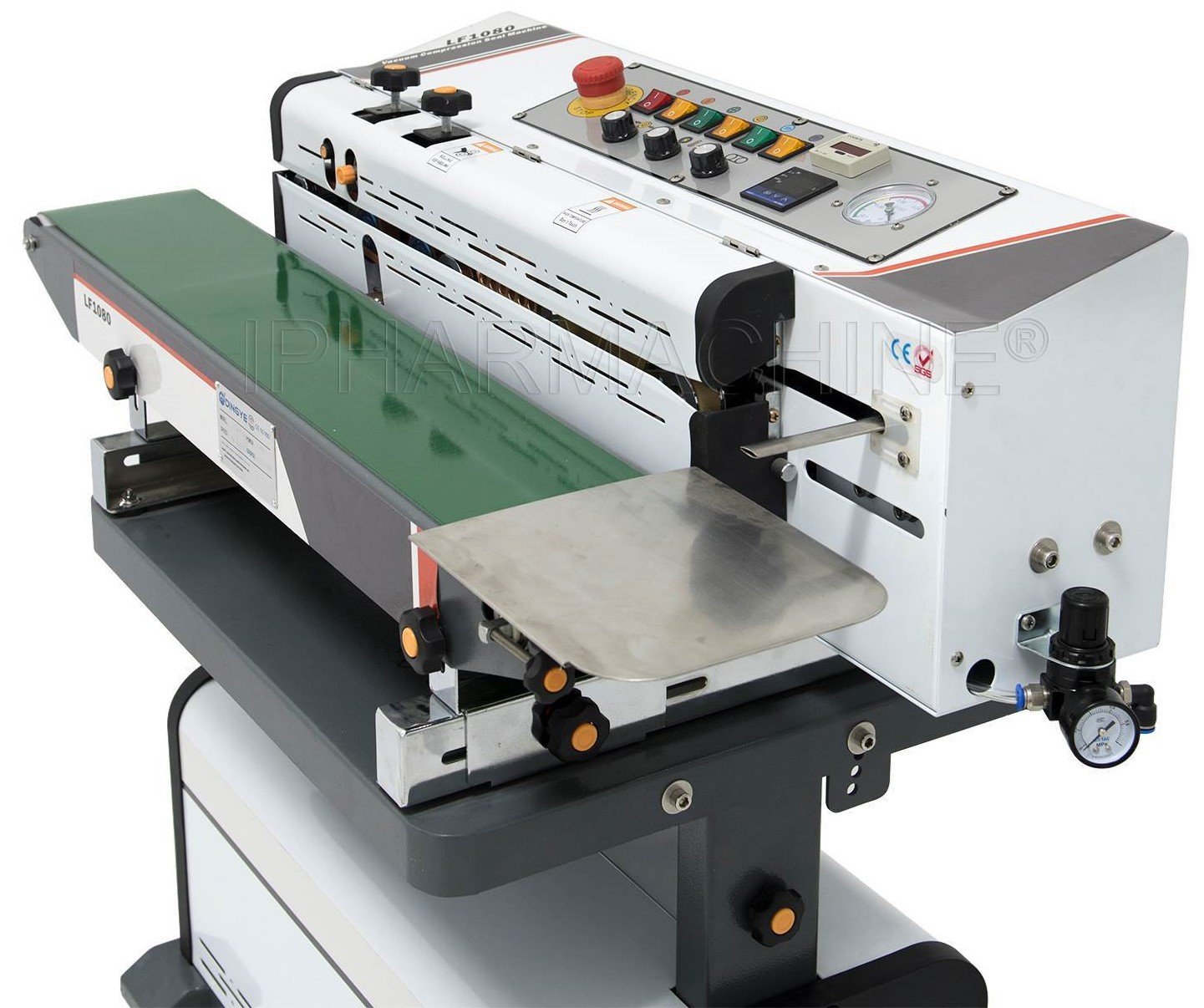

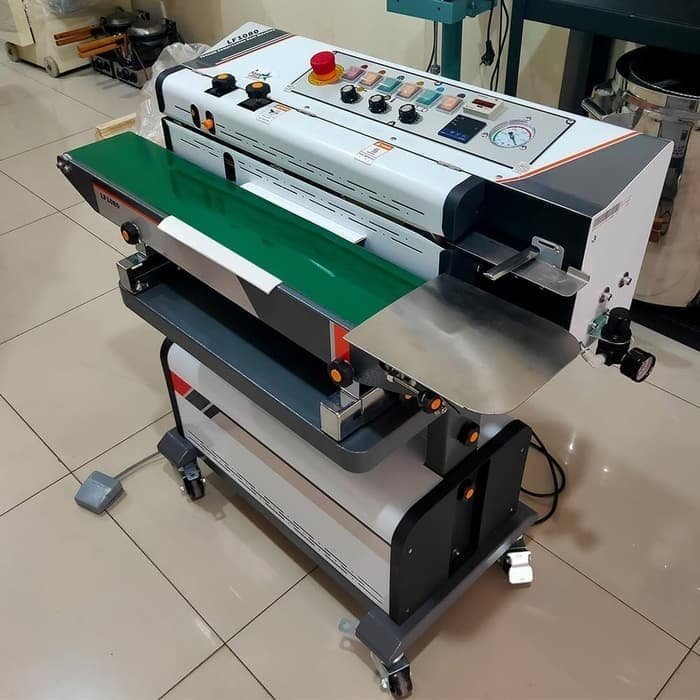

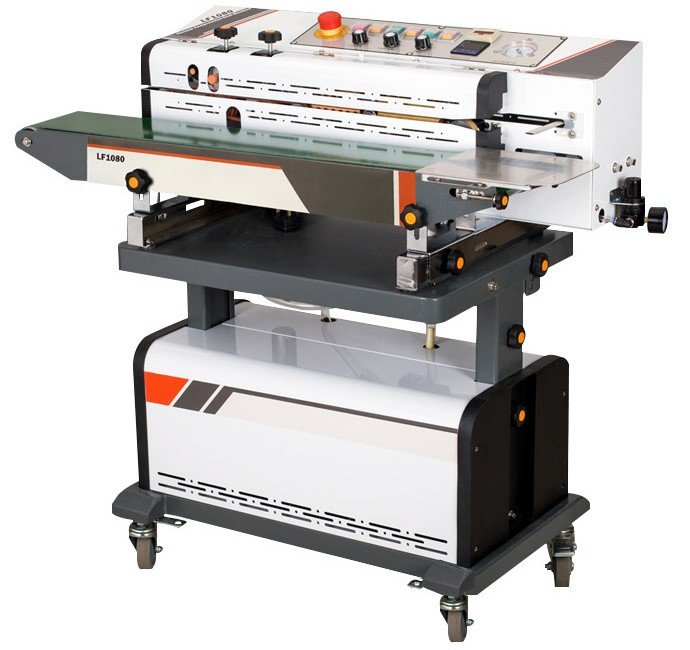

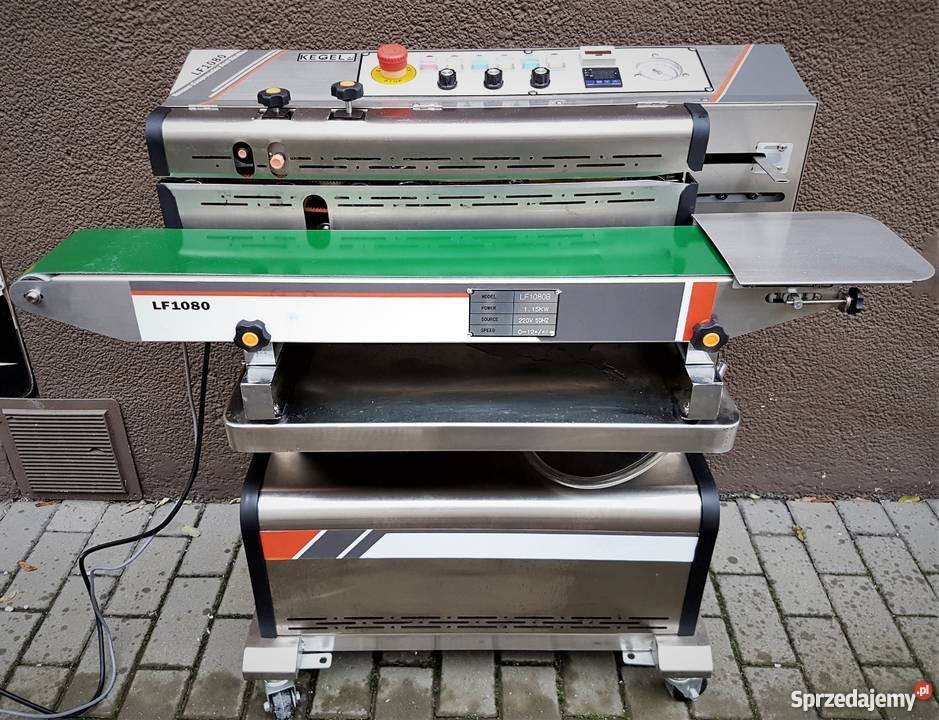

Vacuum and Nitrogen type Band Sealing Machine with Printing Model BSM 1080V

₹89,000

Continuous band machine described to suction air, flush nitrogen or other gases, seal and code filled pouches. Supplier lists chips, wafers, snacks and biscuits. Power table lists motor, fan, two seal heaters and vacuum pump totalling 1405 W. Vacuum level, gas delivery, achieved oxygen level and included coding method are not established.

Confirm configuration, availability and commercial terms with our team.

Specifications

ModelBSM-1080-V
FunctionAir Suction, Gas Flushing & Bag Sealing
Power Supply220V/50 Hz
Power ConsumptionMotor power(50W); Total=1405W
Sealing Speed0~12 M/min
Sealing Width6~12 mm
Film Thickness0.02-0.08 mm
Temp Range0-300° C
Conveyor Load≤ 3 Kgs
Machine Size (cm)102 x 48 x 107
Machine Weight84 Kg
Expanded specification view ↓

Product details

Vacuum & Nitrogen type Band Sealing Machine with Printing Model BSM-1080-V for vacuuming &sealing small bags or filled pouches of tea, snacks, etc. of all materials. It is designed to Vacuum, Gas-Flush (such as nitrogen or other gases), Seal and Code in one continuous sealing and packing machine. It has a Variable speed conveyor carrying the filled pouches in the Roller Bands that heat seal the pouch, move them forward & release them at the other end. No operator handling is required, thus making the sealing process very easy & fast. Embossing of Exp. Dt., etc. also takes place simultaneously if required. This sealer is suitable for Chips / Wafer, snacks, biscuits, etc.

Specifications (11)

ModelBSM-1080-V
FunctionAir Suction, Gas Flushing & Bag Sealing
Power Supply220V/50 Hz
Power ConsumptionMotor power(50W); Total=1405W
Sealing Speed0~12 M/min
Sealing Width6~12 mm
Film Thickness0.02-0.08 mm
Temp Range0-300° C
Conveyor Load≤ 3 Kgs
Machine Size (cm)102 x 48 x 107
Machine Weight84 Kg
