Form Fill Seal Machine
Horizontal Flow Wrap Packing FFS Machine Model FFS FW350 350mm
FFS-FW350

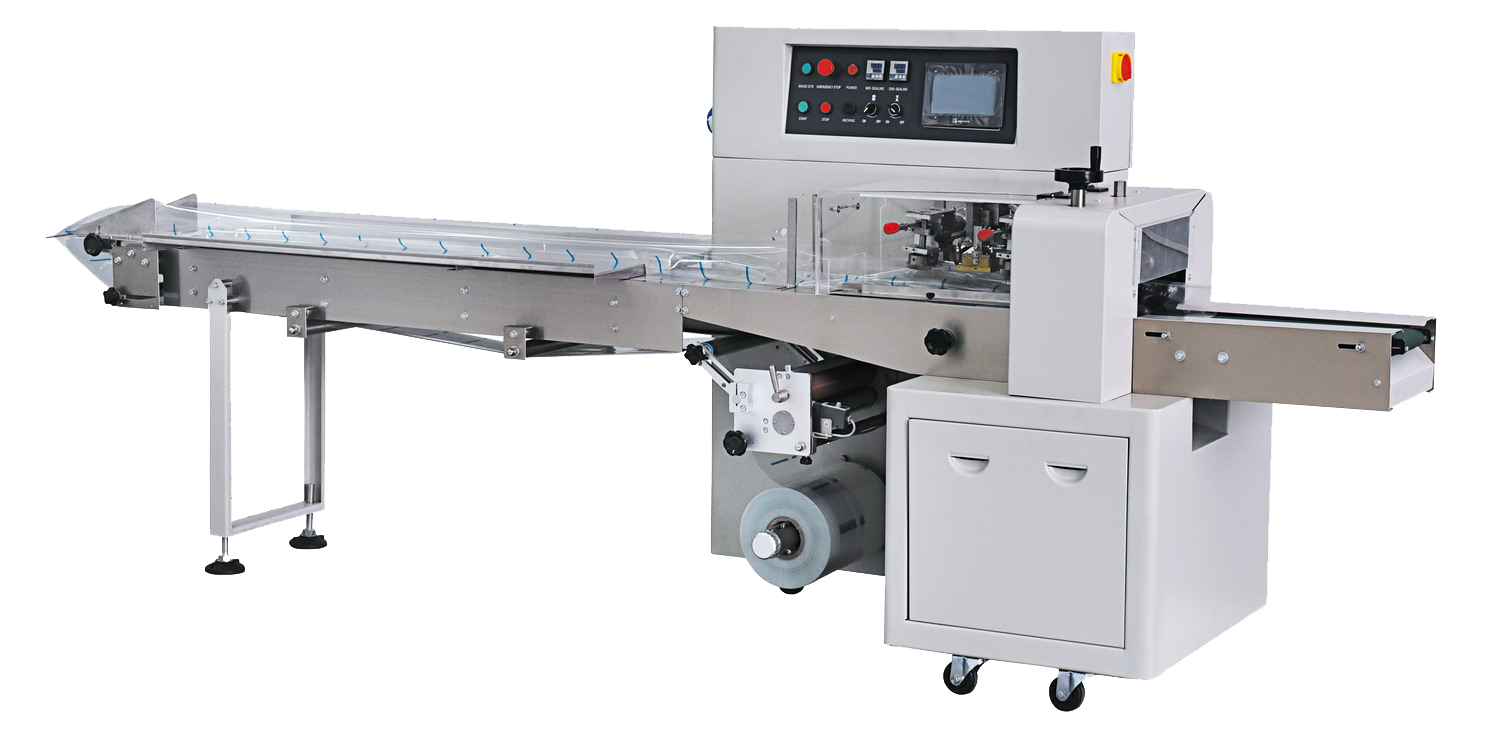

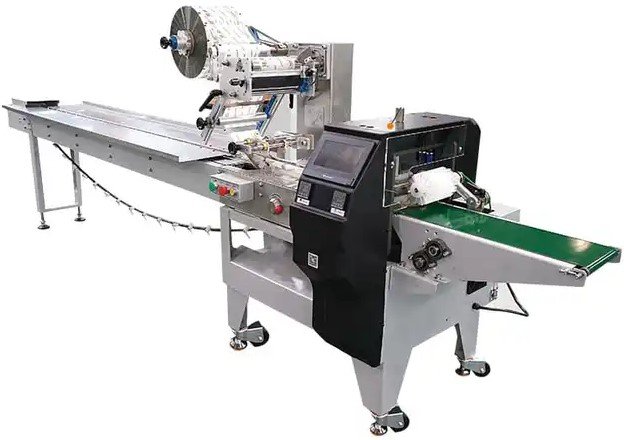

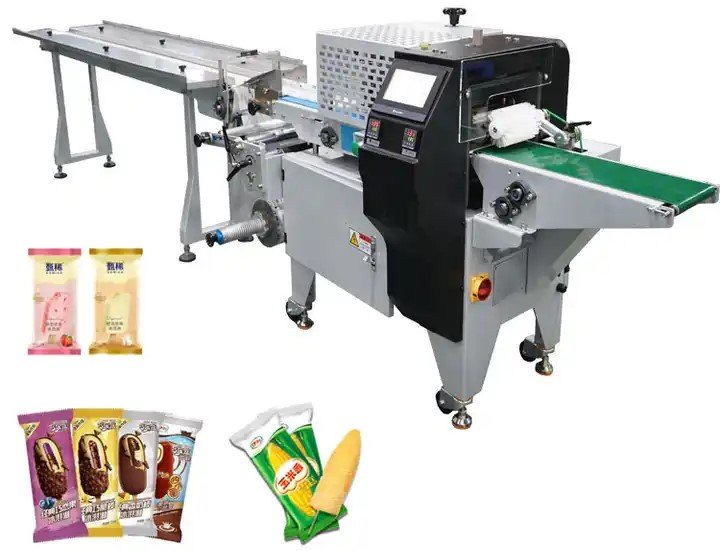

Horizontal Flow Wrap Packing FFS Machine Model FFS FW350 350mm

₹399,000

Horizontal flow wrapper for discrete objects, containers, biscuits and cookies. Forms and seals film around items; no weight-dosing range is supplied. Its table compares FW350 with FW450, which has different film, pack, product-height and output limits.

Confirm configuration, availability and commercial terms with our team.

Specifications

DescriptionFFS-FW350 / FW450
SealingCenter Seal
Film WidthMax. 340mm / 440mm
Bag Length120-280mm / 120-450mm
Bag Width50-160mm / 80-200mm
Product HeightMax. 45mm / Max. 80mm
Film Roll DiameterMax.320mm
Output In PPM20-200 bags/min / 40-100 bags/min
Packaging MaterialAny heat sealing films (laminates) 0.5mm to 0.8mm
DriveSINGLE PHASE MOTOR
Core Inner Diameter76 MM ID.
Net Wt.70 Kg. approximately.
Power220V,50/60HZ,2.4KW / 2.8KW
Overall Dimensions3744 x 828 x 1558mm / 4195 x 845 x 1405mm
Machine WeightMachine Weight 335 Kgs / 450 Kgs
Expanded specification view ↓

Product details

Automatic High Speed Horizontal Flow Wrap Packing FFS Machine Model FFS-FW350 (350mm) are ideal for packing of objects, containers, biscuits, cookies, etc. Machines that form the package, fill it with a wet or dry product, and seal it shut are known as Form-Fill-Seal machines. Flexible film is used in most FFS packing machine to create the primary kit, such as a bag or pouch. These machines ensure hygienic packing of the product along with the focus on keeping moisture away from the product for retaining the free flow texture of the same. Advanced innovative technology is used in designing the machines to minimize film overlap to reduce film consumption thereby making them cost effective. These machines often feature intermediate perforation for consecutive pouches, as well as the ability to cut strips after a predetermined number of pouches using a digital auto–cut feature.

Features

Rapid modification of the bag specifications.

Modular heating, more precise temperature control.

Easy and convenient operation

The CAM design of the single shaft

Cost saving

Clean and no wastage

Leak-proof sealing

Energy efficient

High-functioning and improvised productivity

We provide Pouch Packing Machines with PLC control bag length regulation. It can be used with heat-sealable compound materials, including single paper/PE, cellophane/PE, aluminium foil/PE, BOPP/PE, Nylon/PE, and so on.

Similar machine as above for 450mm model FFS-FW450 (450mm)

LD + Polyster Plain Transparent Roll of 75GSM (Per Kg)

Specifications (15)

DescriptionFFS-FW350 / FW450
SealingCenter Seal
Film WidthMax. 340mm / 440mm
Bag Length120-280mm / 120-450mm
Bag Width50-160mm / 80-200mm
Product HeightMax. 45mm / Max. 80mm
Film Roll DiameterMax.320mm
Output In PPM20-200 bags/min / 40-100 bags/min
Packaging MaterialAny heat sealing films (laminates) 0.5mm to 0.8mm
DriveSINGLE PHASE MOTOR
Core Inner Diameter76 MM ID.
Net Wt.70 Kg. approximately.
Power220V,50/60HZ,2.4KW / 2.8KW
Overall Dimensions3744 x 828 x 1558mm / 4195 x 845 x 1405mm
Machine WeightMachine Weight 335 Kgs / 450 Kgs
