Online Inkjet Printers
High Quality On Line Industrial Continuous Ink Jet Printer CIJ Model IJP CIJ 1890
IJP-CIJ-1890

High Quality On Line Industrial Continuous Ink Jet Printer CIJ Model IJP CIJ 1890

₹189,000

Online CIJ printer with stainless construction, ink/solvent level monitoring, maintenance alerts and self-clean/self-detection claims. Supplier lists bottles, pouches, cartons, tins, pipes and cables; pigment-white/yellow version is a separate W variant.

Confirm configuration, availability and commercial terms with our team.

Specifications

Coder ModelIJP – CIJ-1890
SpeedFast mode 290 m/min (7 dots);High-speed mode 480 m/min (5 dots)
Font Matrix5x4、7x4、7x5、9x6、11x7、11x8、16x11、24x20
BarcodeCode 39, EAN8, EAN13, Code 128, QR Code, Data Matrix
Data InterfaceUSB 2.0
Signal InterfacePhotocell sensor, Alarm light, Encoder
Print Height2-15mm
Print Lines1-4 Lines
Print Distance1mm~20mm, Recommend 12mm

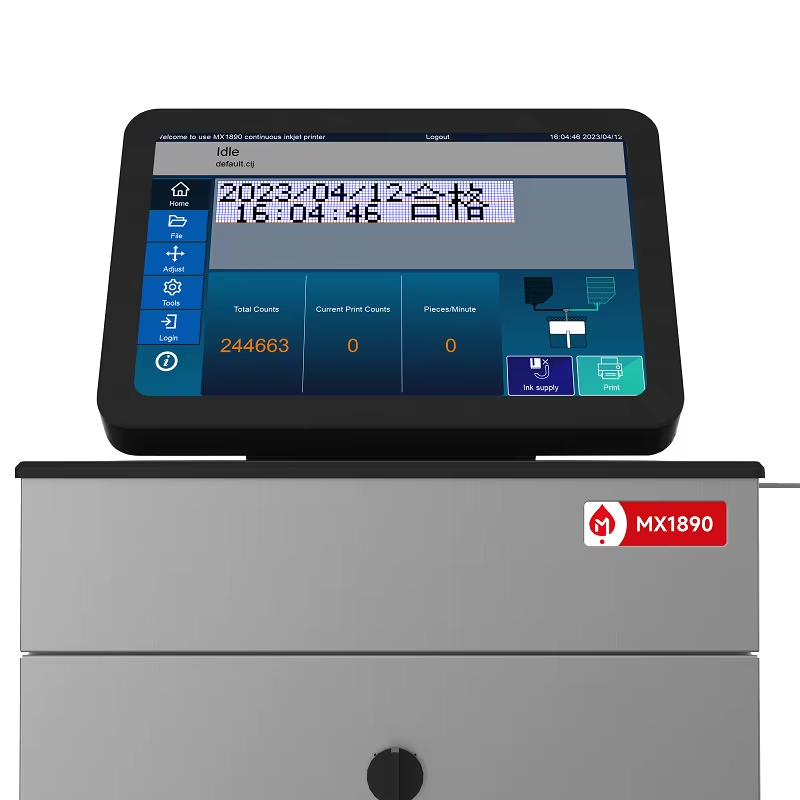

Controller10.1 inch capacitive touch screen
LanguageEnglish, French, German, Greek, Italian, Korean, Persian, Portuguese, Arabic, Russian, Chinese, Spanish, Thai, Turkish, etc. (Support customization)
Storage8G ( ≧ 1000 print files)
Protection LevelIP55

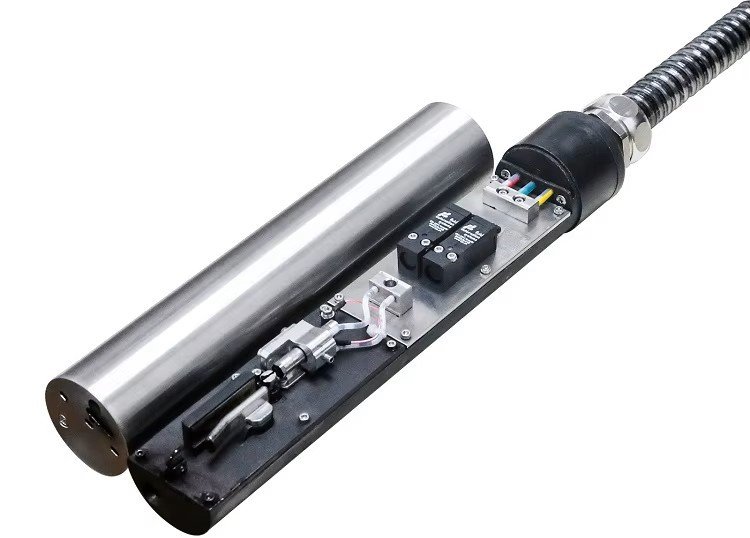

Print HeadPath length: 2700mm; Head length: 256mm; Nozzle diameter: 60/50μm
Consumable CapacityInk: 750ml/bottle; Make up: 750ml/bottle
Ink ConsumptionAround 70 million words per liter of ink (5*7)
Make-Up Consumption5ml/Hr or 30 million character/2mm ink
Working Condition0℃ - 45 ℃ (32° F - 113° F), 0-90%RH (non-condensing)
Voltage & Power110-240V, AC, 50/60HZ, 120W
Machine Weight21kg
Extended PartsExtra photoelectric interface, External encoder device, Placing desk
Dimensions(L*W*H)500*360*300mm
CertificationCE
Warranty1 year
Expanded specification view ↓

Product details

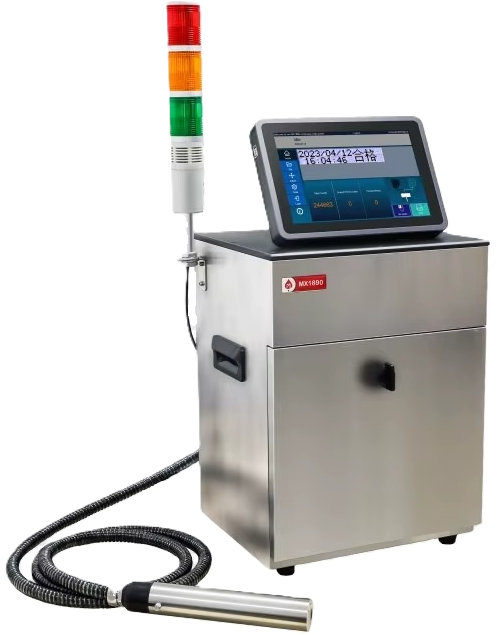

High Quality On-Line Industrial Continuous Ink Jet Printer (CIJ) Model IJP – CIJ-1890, which is a FOUR line (character height 1 to 15 mm) with up to 280m/min (7 dots) and 480 m/min (5 dots) printing speed. It has Stainless Steel construction with user-friendly 10.1” sensitive colour touch screen, low maintenance need, supports self-clean and self-detection & can be installed on Porous & Non-Porous production lines to print B.No., Mfg.Date, Exp.Date, MRP₹, Time, Logos, Serial No. (AGMARK) variable data, QR/BAR codes, etc, etc. on bottles, pouches, labels, cartons, Tins, Pipes, Cables, etc.

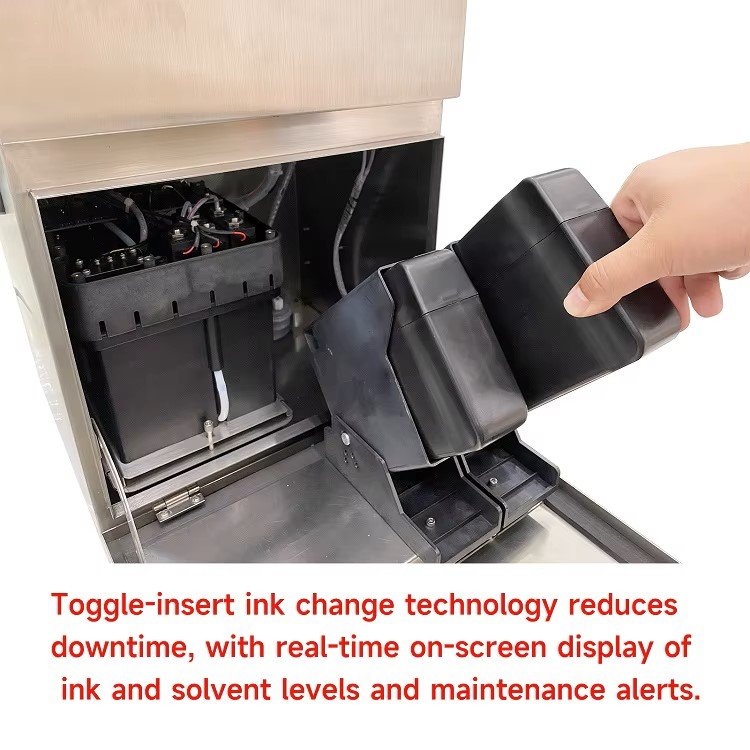

Intelligent Ink and Solvent Cartridges with Toggle-insert ink change technology reduces downtime, with real-time on-screen display of ink and solvent levels and maintenance alerts. With a 750ML ink tank, it can print 8 million characters, about 1 million production dates, typically only 10ml solvent is used per hour. It has a long standby time, even after 35 days off, the machine is ready to work without the hassle of flushing as it adopts imported MicroPump gear pump and Norgren solenoid valve. The IP55 protection class makes it easy to cope with the harsh factory production environment.

Above printer using WHITE / YELLOW Pigment Ink Model IJP – CIJ-1890 – W

Kindly watch Demo Video: https://youtu.be/FzY2vxHINPw Download Catalog

The system is inclusive of below mentioned accessories worth₹ 75,000/- free of cost:

One set of sensor, stand and one power cable

include 750ml MEK ink cartridges, 750ml x 2 Make-up cartridges and 1000ml Wash Solution

Stainless Steel Machine Stand with Print head Stand.

Operator Tool Kit, Operation & Maintenance Manual.

Specifications (24)

Coder ModelIJP – CIJ-1890
SpeedFast mode 290 m/min (7 dots);High-speed mode 480 m/min (5 dots)
Font Matrix5x4、7x4、7x5、9x6、11x7、11x8、16x11、24x20
BarcodeCode 39, EAN8, EAN13, Code 128, QR Code, Data Matrix
Data InterfaceUSB 2.0
Signal InterfacePhotocell sensor, Alarm light, Encoder
Print Height2-15mm
Print Lines1-4 Lines
Print Distance1mm~20mm, Recommend 12mm
Controller10.1 inch capacitive touch screen
LanguageEnglish, French, German, Greek, Italian, Korean, Persian, Portuguese, Arabic, Russian, Chinese, Spanish, Thai, Turkish, etc. (Support customization)
Storage8G ( ≧ 1000 print files)
Protection LevelIP55
Print HeadPath length: 2700mm; Head length: 256mm; Nozzle diameter: 60/50μm
Consumable CapacityInk: 750ml/bottle; Make up: 750ml/bottle
Ink ConsumptionAround 70 million words per liter of ink (5*7)
Make-Up Consumption5ml/Hr or 30 million character/2mm ink
Working Condition0℃ - 45 ℃ (32° F - 113° F), 0-90%RH (non-condensing)
Voltage & Power110-240V, AC, 50/60HZ, 120W
Machine Weight21kg
Extended PartsExtra photoelectric interface, External encoder device, Placing desk
Dimensions(L*W*H)500*360*300mm
CertificationCE
Warranty1 year
